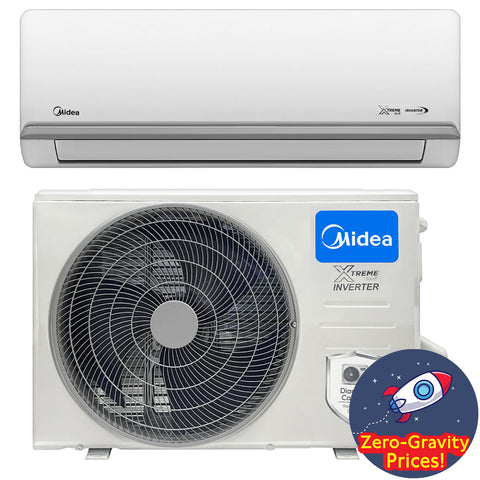

Midea – Air Conditioner

Brand: Midea

Model: MSXS-10CRDN8

Capacity: 9000BTU

Type: Cooling Only

Control type: Remote (Wi-Fi Control Optional)

Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz

Cooling:

• • • Cooling Capacity (Btu/h): 10000Btu/h
    • Input (W): 780W
    • Rated Current (A): 3.4A
    • EER (W/W): 3.76

Max. Input Consumption (W): 1150W

Max. Current (A): 6.5A

Compressor:

• • • Type: Rotary
    • Capacity (W): 3255W
    • Input (W): 826W
    • Rated current (RLA) (A): 5.65A

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty



Indoor Unit:

Indoor Fan Motor:

• • • Input (W): 43W
    • Capacitor (uF): 1.5 uF
    • Speed (High/Middle/Low): 1150/1010/940 r/min

Indoor Coil:

1. Number of rows: 2
2. Tube pitch (a) x row pitch (b): 21 x 13.37mm
3. Fin spacing: 1.3mm
4. Fin type (code): Hydrophilic aluminum
5. Tube outside dia. and type: Φ7,Inner groove tube
6. Coil (length x height x width): 605 x 231 x 26.74mm + 605 x 105 x 26.74mm
7. Number of circuits: 2

Indoor air flow (High/Middle/Low): 550.4/397.6/317.9 m3/h

Indoor noise level (High/Middle/Low): 39/35/34 dB (A)



Outdoor Unit:

Outdoor Fan Motor:

• • • Input (W): 63.5W
    • Capacitor (uF): 2.5 uF
    • Speed: 860 r/min

Outdoor Coil:

1. Number of rows: 1
2. Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
3. Fin spacing: 1.2mm
4. Fin type (code): green anti-corrosion aluminum
5. Tube outside dia. and type: Φ5,Inner groove tube
6. Coil (length x height x width): 740 x 468 x 11.6mm
7. Number of circuits: 2

Outdoor air flow: 1800 m3/h

Outdoor noise level: 51.5 dB (A)



Other:

Refrigerant Type: R32/0.38 kg

Design Pressure: 4.3/1.7 MPa

Refrigerant Piping:

• • • Liquid Side / Gas Side: 6.35mm (1/4in) / 9.52mm (3/8in)
    • Max. Refrigerant Pipe Length: 25m
    • Max. Difference in Level: 10m

Connection Wiring: 3.5m

Plug Type: BS three flat pin plug

Thermostat Type: Remote Control

Operation Temperature: 17 ~ 30 °C

Room Temperature:

• • • Indoor (Cooling): 17 ~ 32 °C
    • Outdoor (Cooling): 0 ~ 50 °C

Application Area: 13 ~ 20m²



Dimension & Weight:

Net dimensions (W x D x H):

• • • Indoor: 835 x 208 x 295mm
    • Outdoor: 720 x 270 x 495mm

Packing dimensions (W x H x D):

• • • Indoor: 905 x 355 x 290mm
    • Outdoor: 835 x 300 x 540mm

Net weight:

• • • Indoor: 8.9kg
    • Outdoor: 21.7kg

Gross weight

• • • Indoor: 11.8kg
    • Outdoor: 23.6kg
