Specification

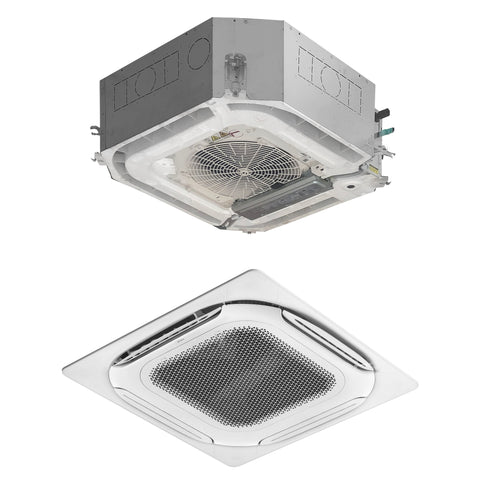

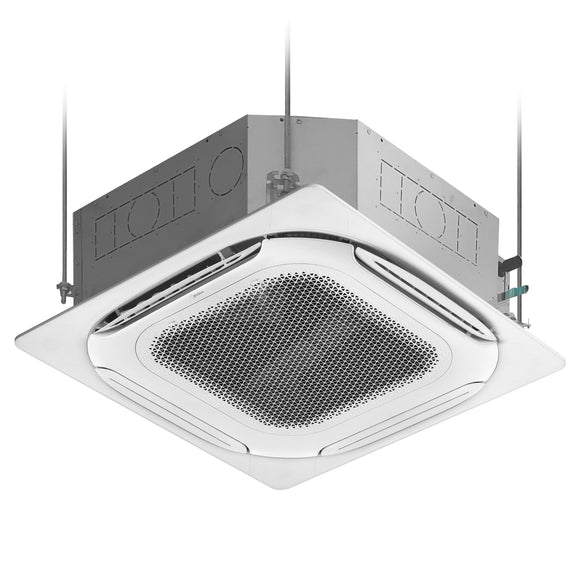

Midea – VRF AC IDU Ceiling

4-Way Inverter

Brand: Midea

Model: MIH140Q4HN18

Power Supply: 1-phase, 220-240V, 50/60Hz

Warranty: 12 Months Warranty

Cooling Capacity:

    • Capacity (kW): 14 kW
    • Capacity (Btu/h): 47.8k Btu/h
    • Power Input: 118W

Heating Capacity:

    • Capacity (kW): 16 kW
    • Capacity (Btu/h): 54.6k Btu/h
    • Power Input: 118W

Air flow rate: 1900/1787/1673/1560/1446/1333/1219 m3/h

Sound Pressure Level: 47.5/46/44/42/40/38/36.5 dB(A)

Refrigerant Type: R410A/R32

Refrigerant Piping:

    • Liquid Side: Ø9.52mm
    • Gas Side: Ø15.9mm
    • Drainage (Outer Dia.): Ø25mm



Features:

    • Individual louver control.
    • Optional medium efficiency filter.
    • Built-in 1200mm high-lift drain pump.
    • Optional plasma sterilization module.
    • 360° airflow, uniform air flow and temperature distribution.

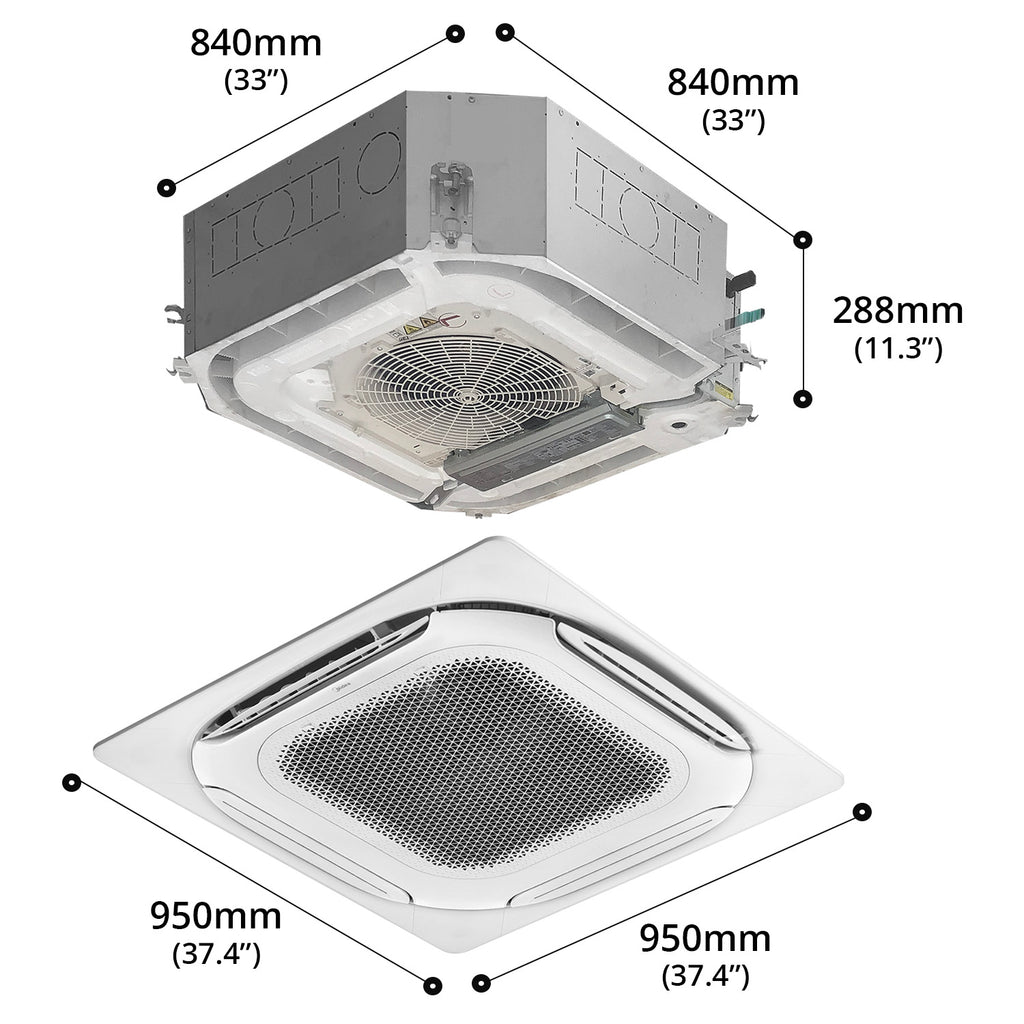

Dimension & Weight:

Weight x Depth x Height

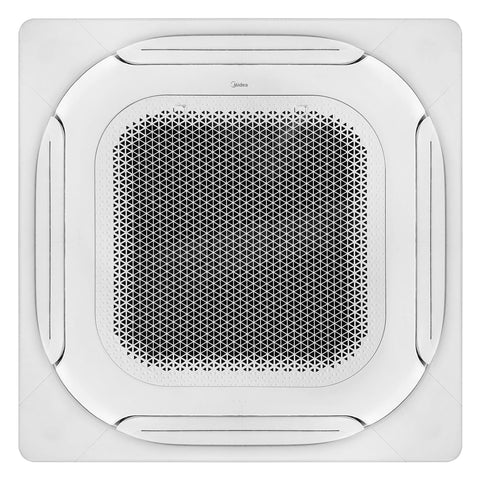

Panel:

    • Product Dimension: 950 x 950 x 50mm
    • Packing Dimension: 1020 x 1020 x 90mm
    • Net Weight: 5.8kg
    • Gross Weight: 7.6kg

Indoor Unit:

    • Product Dimension: 840 x 840 x 288mm
    • Packing Dimension: 940 x 940 x 335mm
    • Net Weight: 24kg
    • Gross Weight: 26.5kg

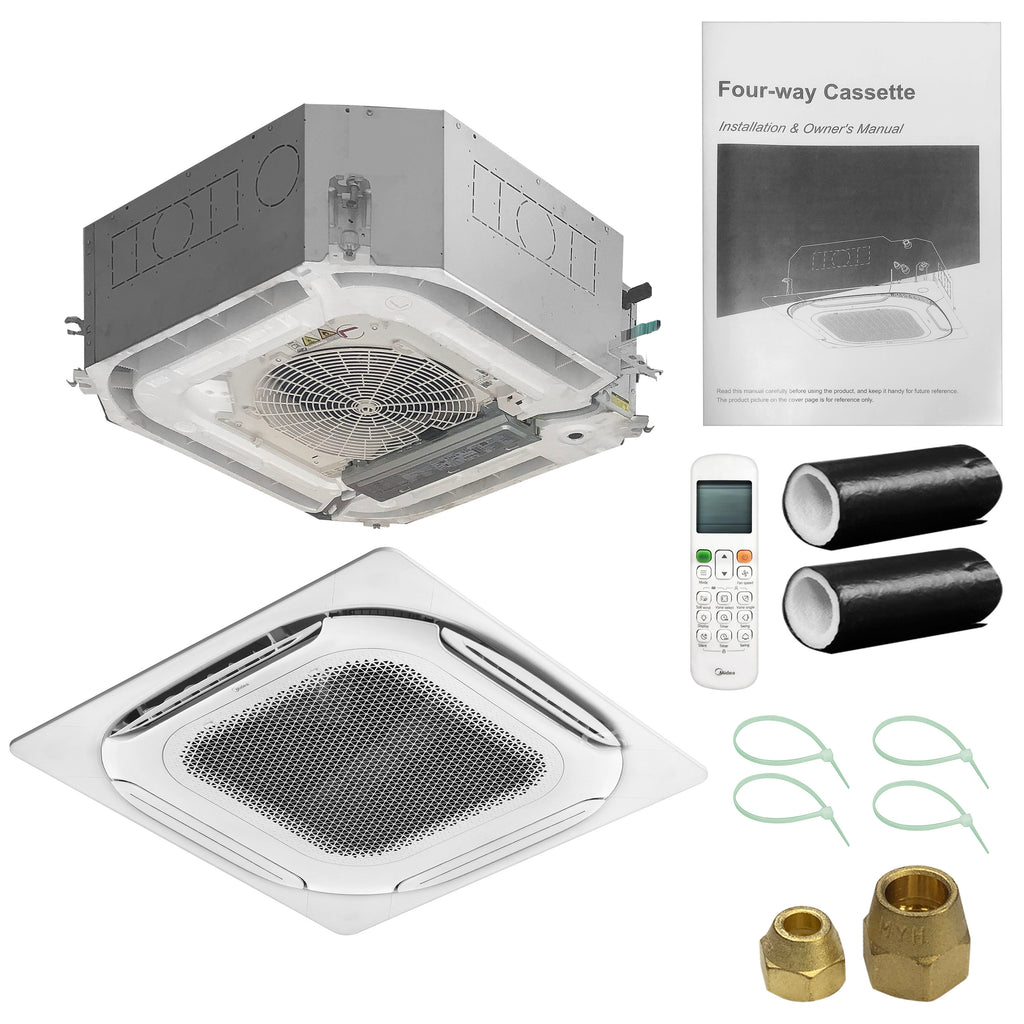

Packing Contents:

Indoor Panel – x1

Indoor Unit – x1

    • Thermal Insulation Pipe  – x2
    • Cable Tie – x4
    • Brass Nut – x2
    • Cardboard – x1 (Used to determine the distance between the unit and the ceiling opening.)
    • User Manual – x1
