Specification


Midea – VRF AC IDU Ceiling

4-Way Inverter

Brand: Midea

Model: MIH71Q4HN18

Power Supply: 1-phase, 220-240V, 50/60Hz

Warranty: 12 Months Warranty

Cooling Capacity:

    • Capacity (kW): 7.1 kW
    • Capacity (Btu/h): 24.2k Btu/h
    • Power Input: 32W

Heating Capacity:

    • Capacity (kW): 8.0 kW
    • Capacity (Btu/h): 27.3k Btu/h
    • Power Input: 32W

Air flow rate: 1000/943/886/829/772/715/658 m3/h

Sound Pressure Level: 37/36/34/33/31/30/28 dB(A)

Refrigerant Type: R410A/R32

Refrigerant Piping:

    • Liquid Side: Ø9.52mm
    • Gas Side: Ø15.9mm
    • Drainage (Outer Dia.): Ø25mm



Features:

    • Individual louver control.
    • Optional medium efficiency filter.
    • Built-in 1200mm high-lift drain pump.
    • Optional plasma sterilization module.
    • 360° airflow, uniform air flow and temperature distribution.

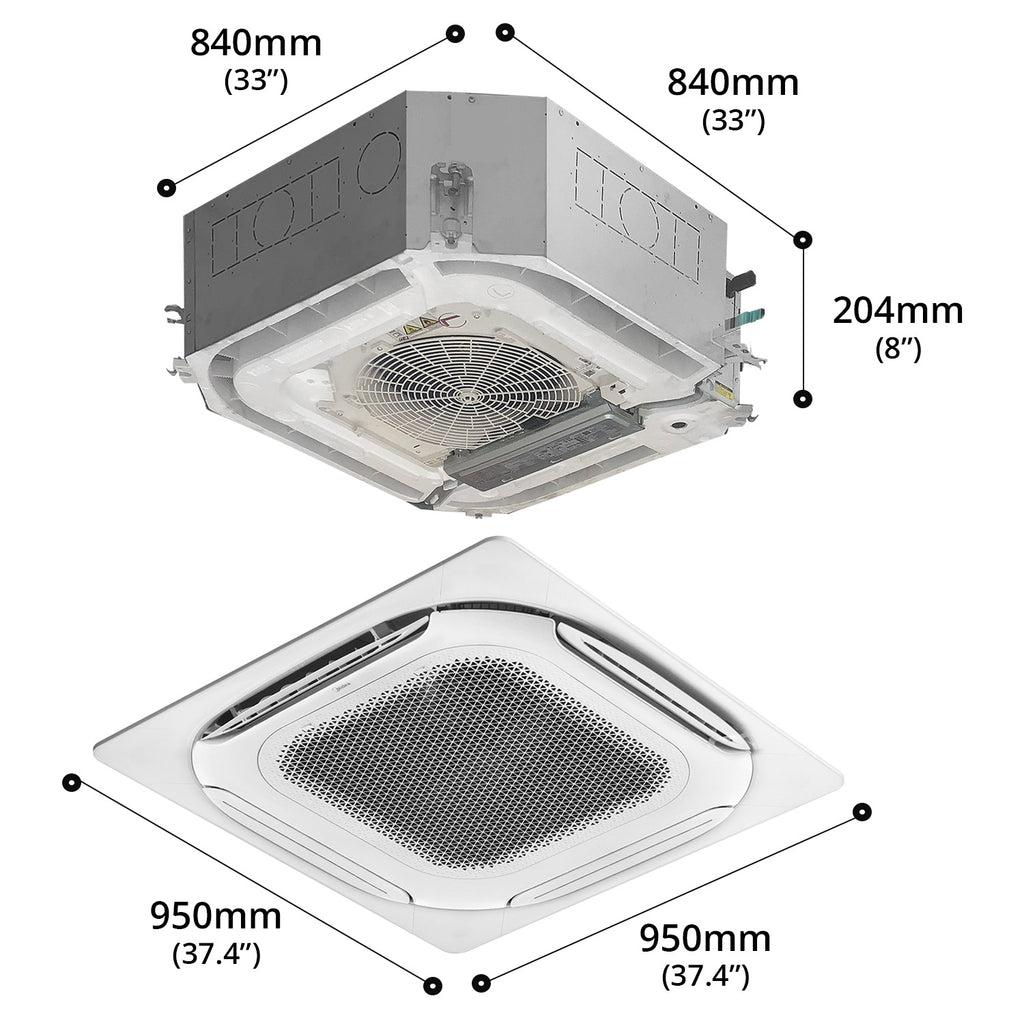

Dimension & Weight:

Weight x Depth x Height

Panel:

    • Product Dimension: 950 x 950 x 50mm
    • Packing Dimension: 1020 x 1020 x 90mm
    • Net Weight: 5.8kg
    • Gross Weight: 7.6kg

Indoor Unit:

    • Product Dimension: 840 x 840 x 204mm
    • Packing Dimension: 940 x 940 x 250mm
    • Net Weight: 19.5kg
    • Gross Weight: 22kg


Packing Contents:

Indoor Panel – x1

Indoor Unit – x1

    • Thermal Insulation Pipe  – x2
    • Cable Tie – x4
    • Brass Nut – x2
    • Cardboard – x1 (Used to determine the distance between the unit and the ceiling opening.)
    • User Manual – x1
