Specification

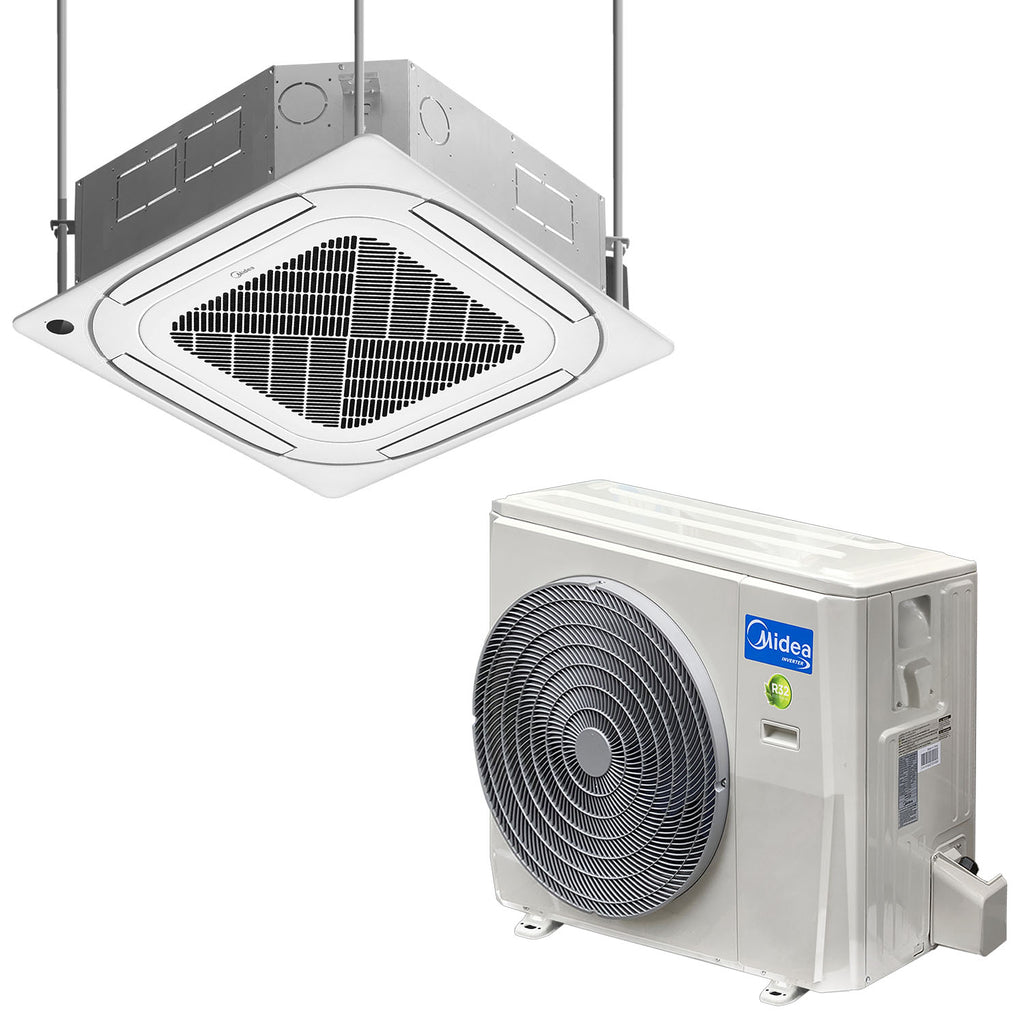

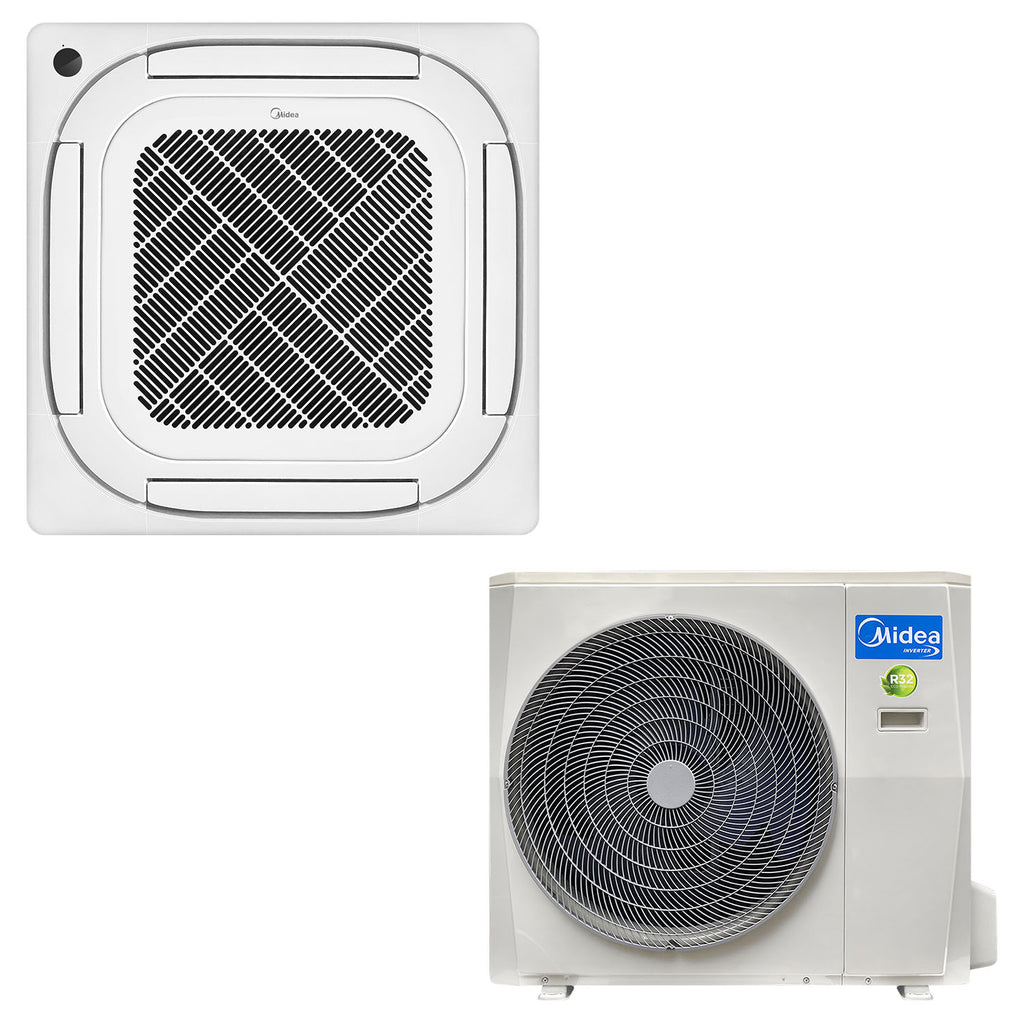

Midea – Inverter 4-Way Cassette (24000BTU)

Inverter Four-Way

Brand: Midea

Model: MCD1-24CRDN8

Capacity: 24000BTU

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

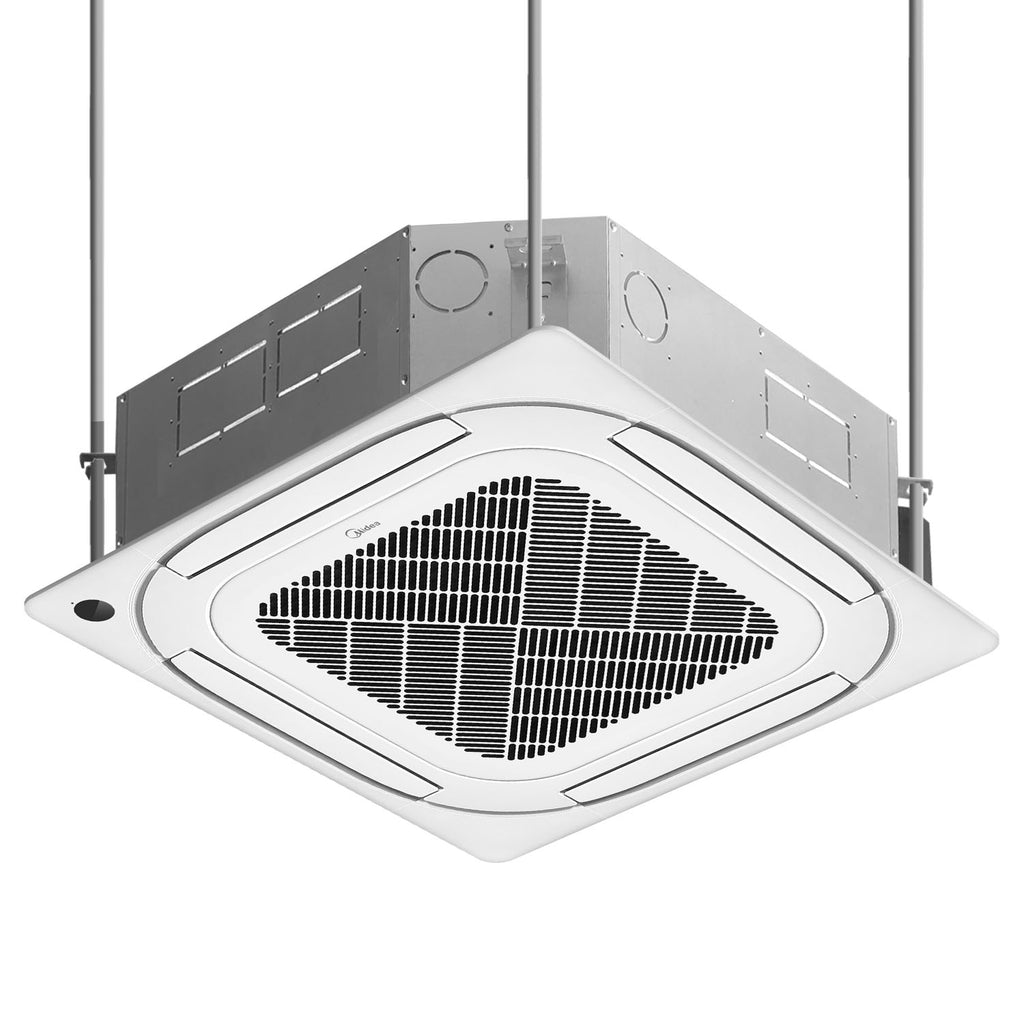

Indoor Unit:

Type: Cooling Only

Control Type: Remote

Power Supply (V, Ph, Hz): 220-240V,1-Phase, 50Hz

Cooling:

• Cooling Capacity (Btu/h): 24000Btu/h
• Input (W): 2400W
• Rated Current (A): 11.5 A
• EER (W/W): 2.93

Rated Power Input: 3000W

Rated Current: 17A

Indoor Fan Motor Speed (High/Middle/Low): 620/480/410 r/min

Indoor Coil:

• Number of rows: 2
• Tube pitch (a) x row pitch (b): 21 x 13.37mm
• Fin spacing: 1.3mm
• Fin type (code): Golden Hydrophilic aluminum
• Tube outside dia. and type: Φ7, Inner groove tube
• Coil (length x height x width): 2135 x 168 x 26.74mm
• Number of circuits: 4

Indoor air flow (High/Middle/Low): 1160/870/720 m3/h

Indoor noise level (High/Middle/Low): 46/39/35 dB (A)

Drainage water pipe dia: OD Ø25mm

Room Temperature Indoor (Cooling): 16 ~ 32 °C

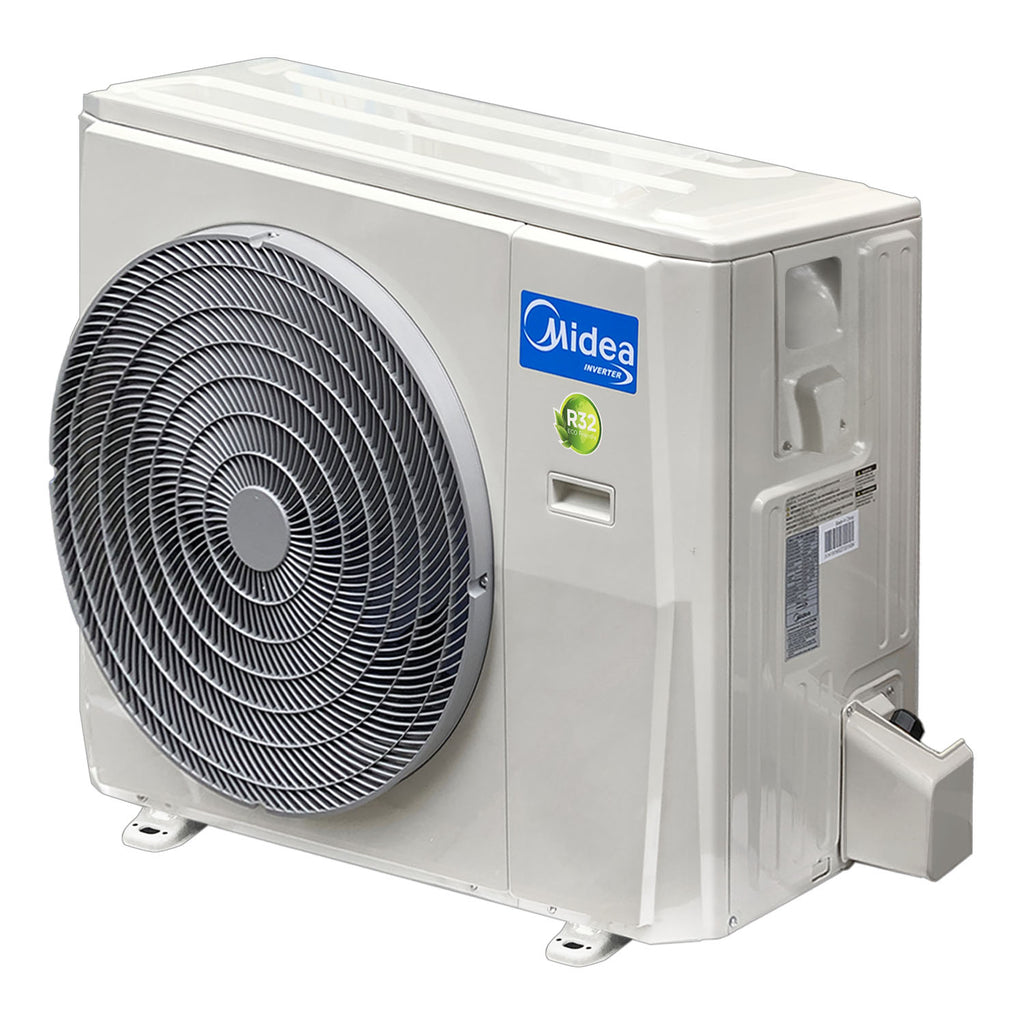

Outdoor Unit:

Power Supply (V, Ph, Hz): 220-240V,1Ph, 50Hz

Compressor:

• Type: Rotary
• Capacity (W): 4385W
• Input (W): 1140W
• Rated current (RLA) (A): 7.50A

Outdoor Fan Motor Speed: 830/730 r/min

Outdoor Coil:

• Number of rows: 1.6
• Tube pitch (a) x row pitch (b): 21 x 13.37 mm
• Fin spacing: 1.3mm
• Fin type (code): Golden Hydrophilic aluminum
• Tube outside dia. and type: Φ7, Inner groove tube
• Coil (length x height x width): 900 x 609 x 13.37mm + 550 x 609 x 13.37mm
• Number of circuits: 2

Outdoor noise level: 59 dB (A)

Refrigerant Type: R32/1.3 kg

Design Pressure: 4.3/1.7 MPa

Refrigerant Piping:

• Liquid Side / Gas Side: 6.35mm(1/4in)/12.7mm(1/2in)
• Max. Refrigerant Pipe Length: 25m
• Max. Difference in Level: 15m

Operation Temperature: 17 ~ 30 °C

Room Temperature Outdoor (Cooling): 0 ~ 50 °C

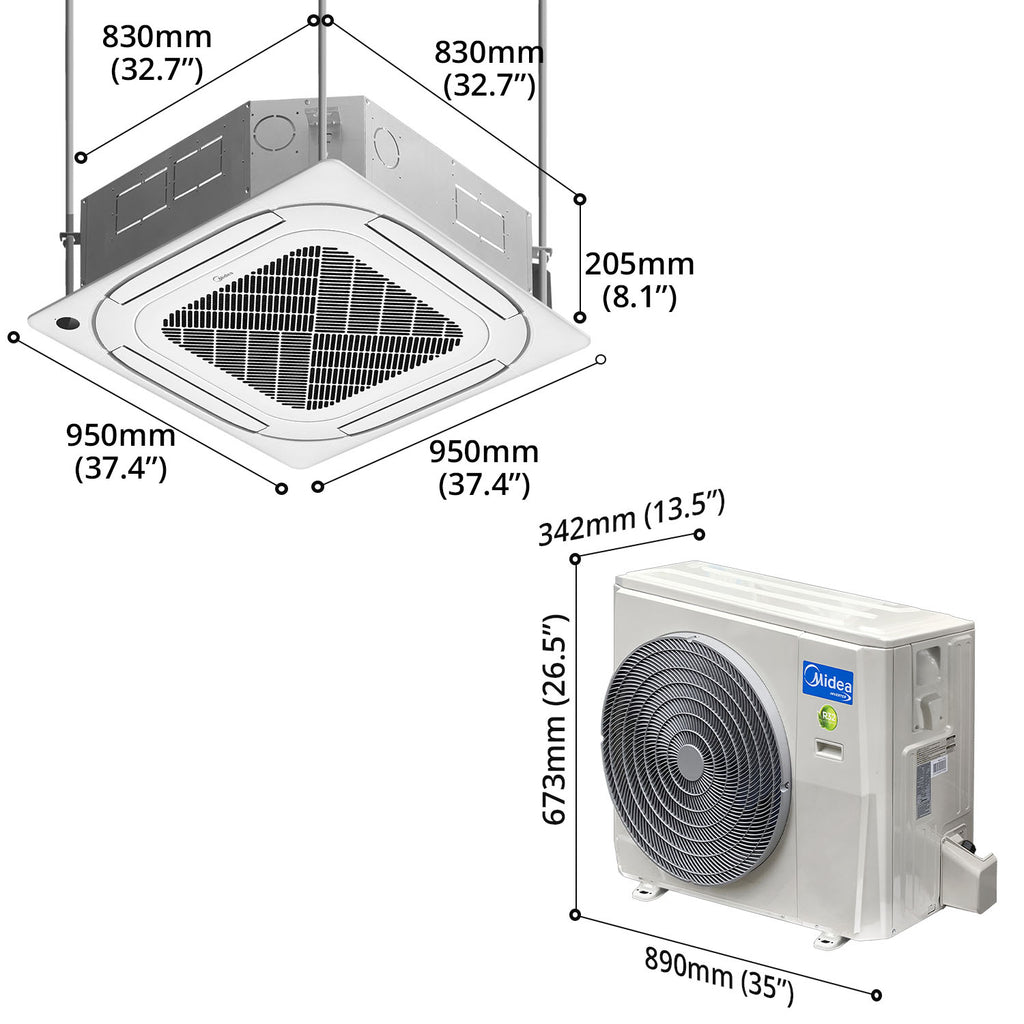

Dimension & Weight:

Weight x Depth x Height

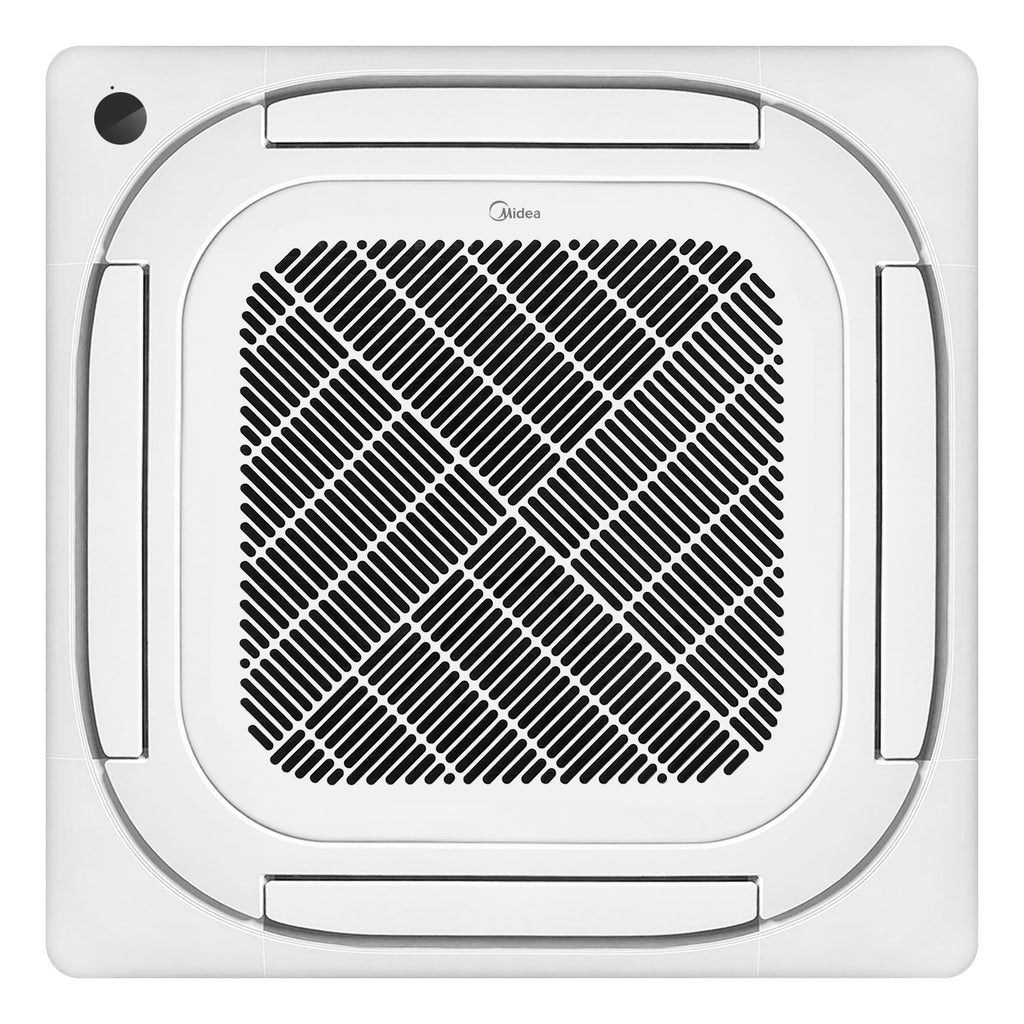

Panel:

• Product Dimension: 950 x 950 x 55mm
• Packing Dimension: 1035 x 1035 x 90mm
• Net Weight: 6kg
• Gross Weight: 9kg

Indoor Unit:

• Product Dimension: 830 x 830 x 205mm
• Packing Dimension: 910 x 910 x 250mm
• Net Weight: 21.9kg
• Gross Weight: 26.1kg

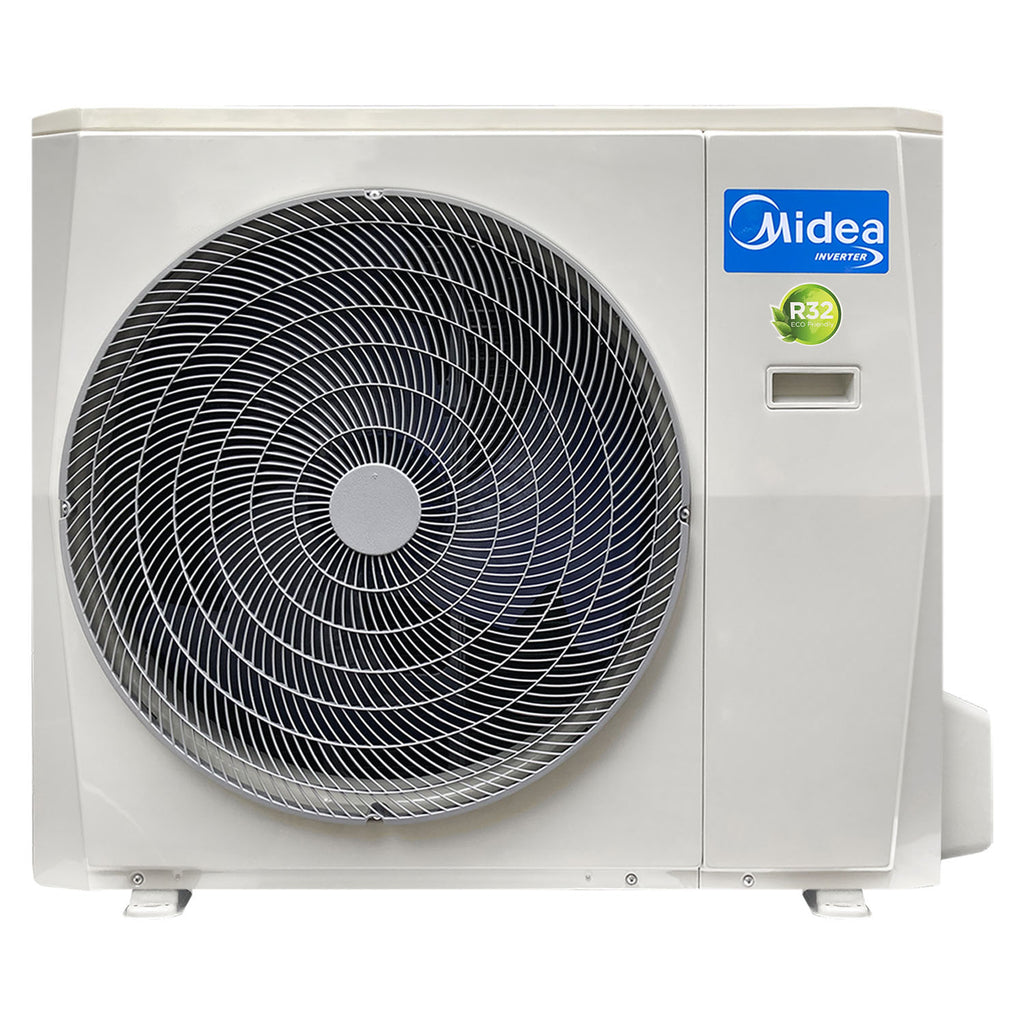

Outdoor Unit:

• Product Dimension: 890 x 342 x 673mm
• Packing Dimension: 995 x 435 x 750mm
• Net Weight: 34.6kg
• Gross Weight: 37.7kg

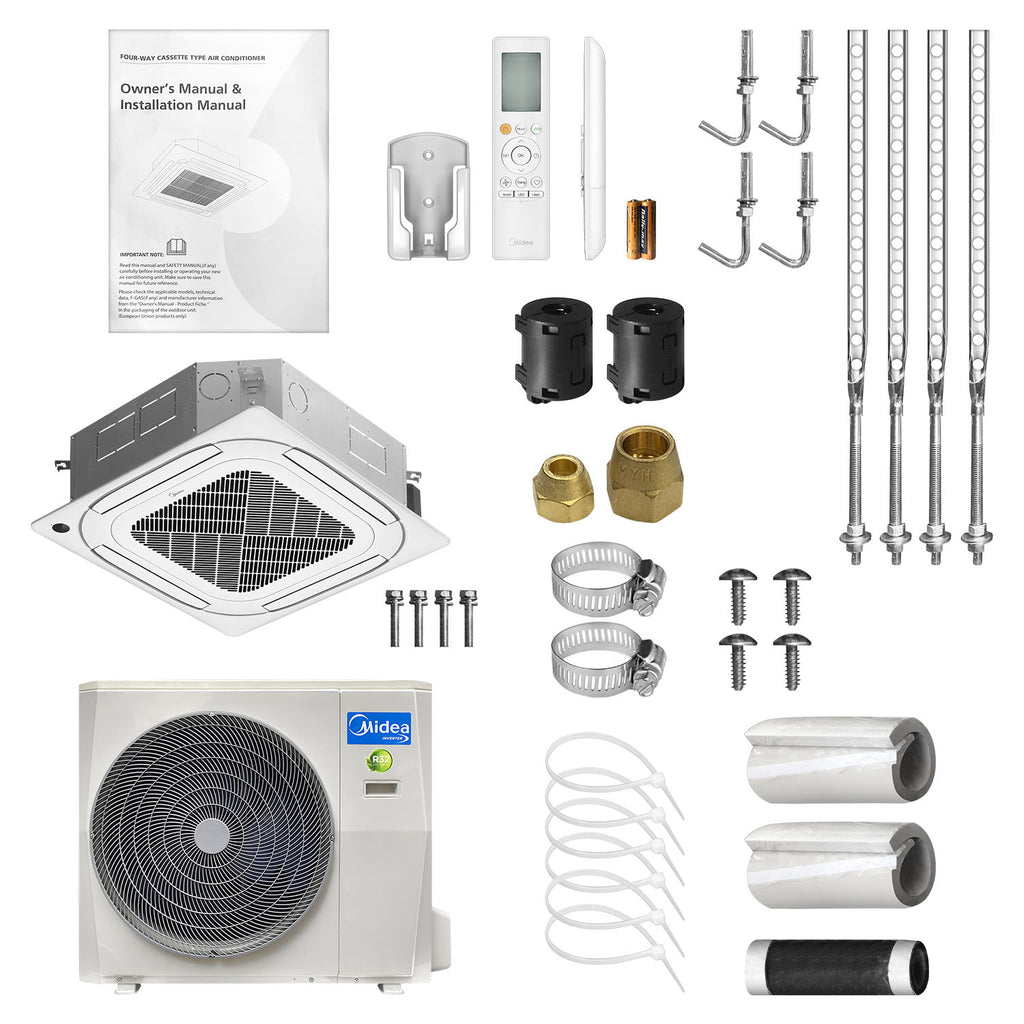

Packing Contents:

24k BTU 4-Way Panel – x1

• Screws – x4

24k BTU Indoor Unit – x1

• Suspension Bolt – x4
• Ceiling Hook – x4
• Hose Clamp – x2
• Screws – x4
• Cable Tie – x6
• Insulation Sheath – x2
• Outlet pipe sheath – x1
• Copper Nut – x2
• Magnetic Ring Cable Filter – x2

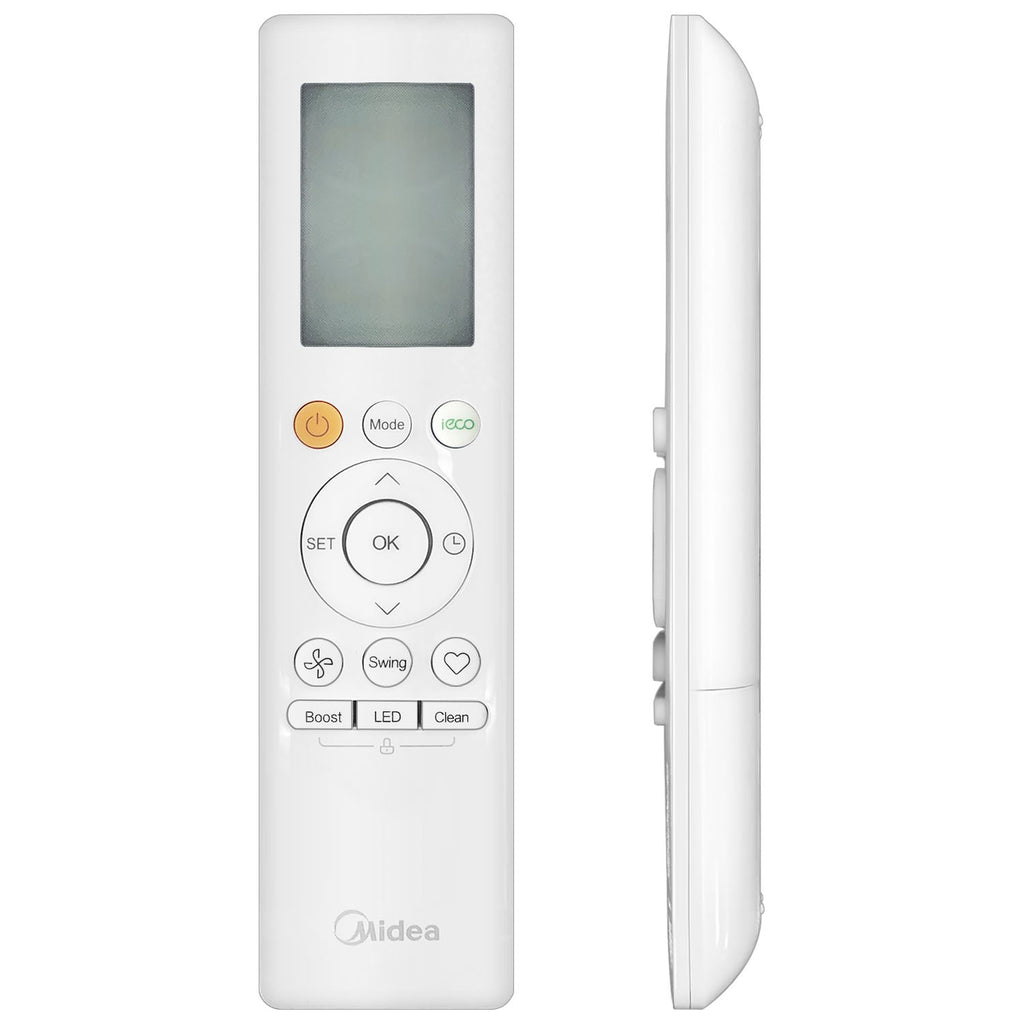

• Remote Control – x1
• AAA Battery – x2
• Wall Mount Remote Holder – x1

24k BTU Outdoor Unit – x1
