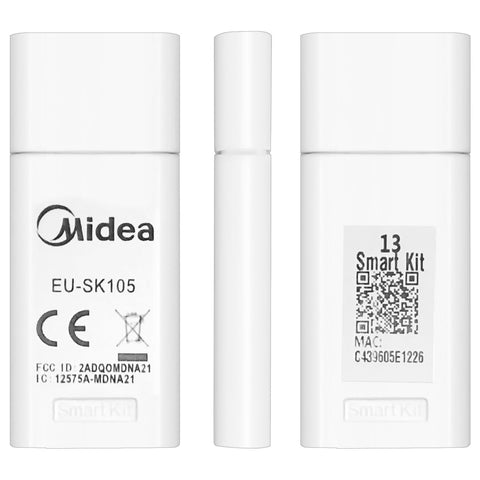

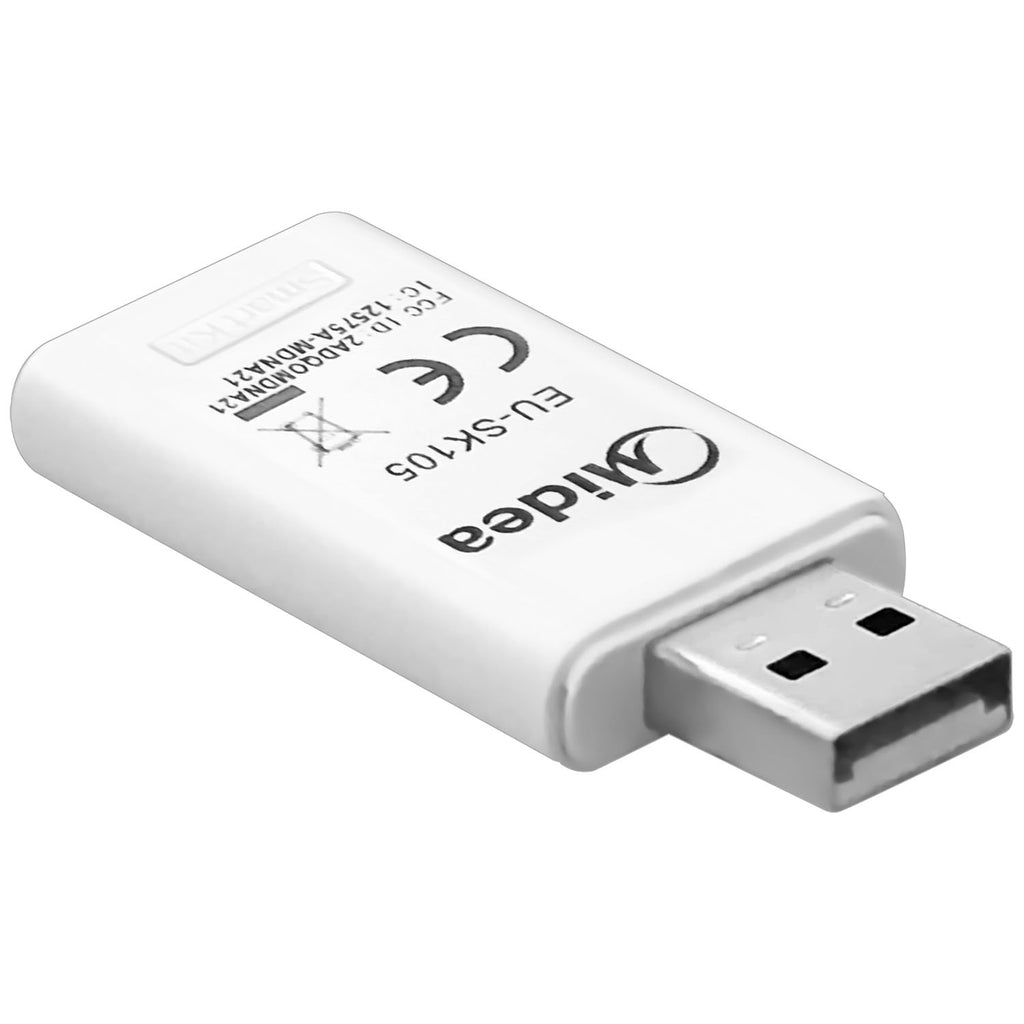

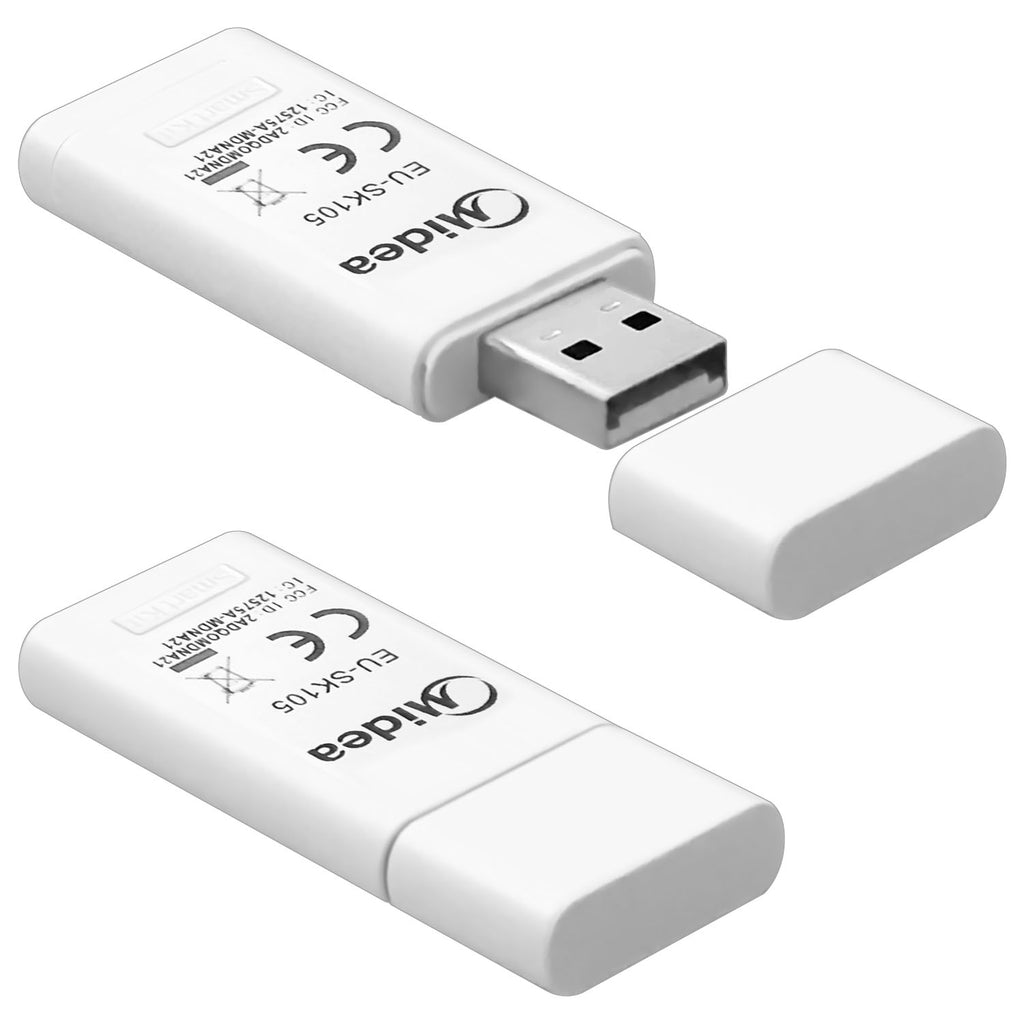

Midea – Adapter

Wi-Fi USB Dongle

Brand: Midea

Model: EU-SK105

Color: White

Standard: IEEE 802.11b/gn

Antenna Type: Printer PCB Antenna

Frequency Band: 2400-2483.5MHz

Operation Temperature: 0°C ~ 45°C / 32°F ~ 113°F

Operation Humidity: 10% ~ 85%

Power Input: DC 5V/300mA

Maximum TX Power: <20dBm

Material: Plastic

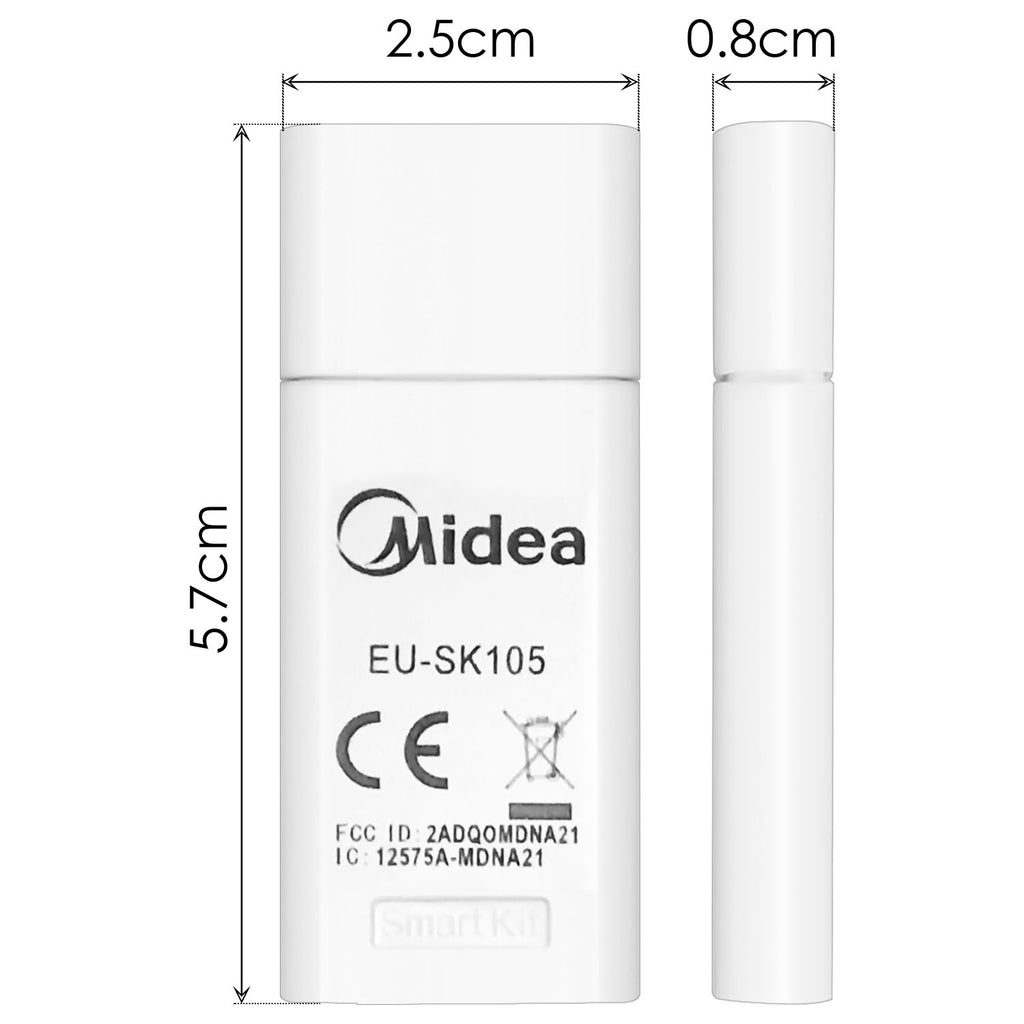

Dimension (W x D x H): 25 x 57 x 8mm

Details:

    • Compatible for Only Midea ACs.
    • The AC system is in constant connection with a wireless router or access point attached to the internet.
    • The AC system is equipped with remote control technology, with the Wi-Fi module inside the machine connected to the display panel and the commanded to run the AC transmitted.
    • Mobile terminals such as smart phones and tablet computers, on which special control software are installed an Wi-Fi modules successfully configured locally, can be used as remote controllers once they are connected to the internet.



Note:

For mobile terminals such as smarts phones and tablet (Android and IOS only), search and download “Midea Air” from Google Play or App store and install in on your system.

Compatible for Only Midea ACs - Midea Air Conditioners



Click here for Instruction Manual

Instruction Manual
