Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.

Specification

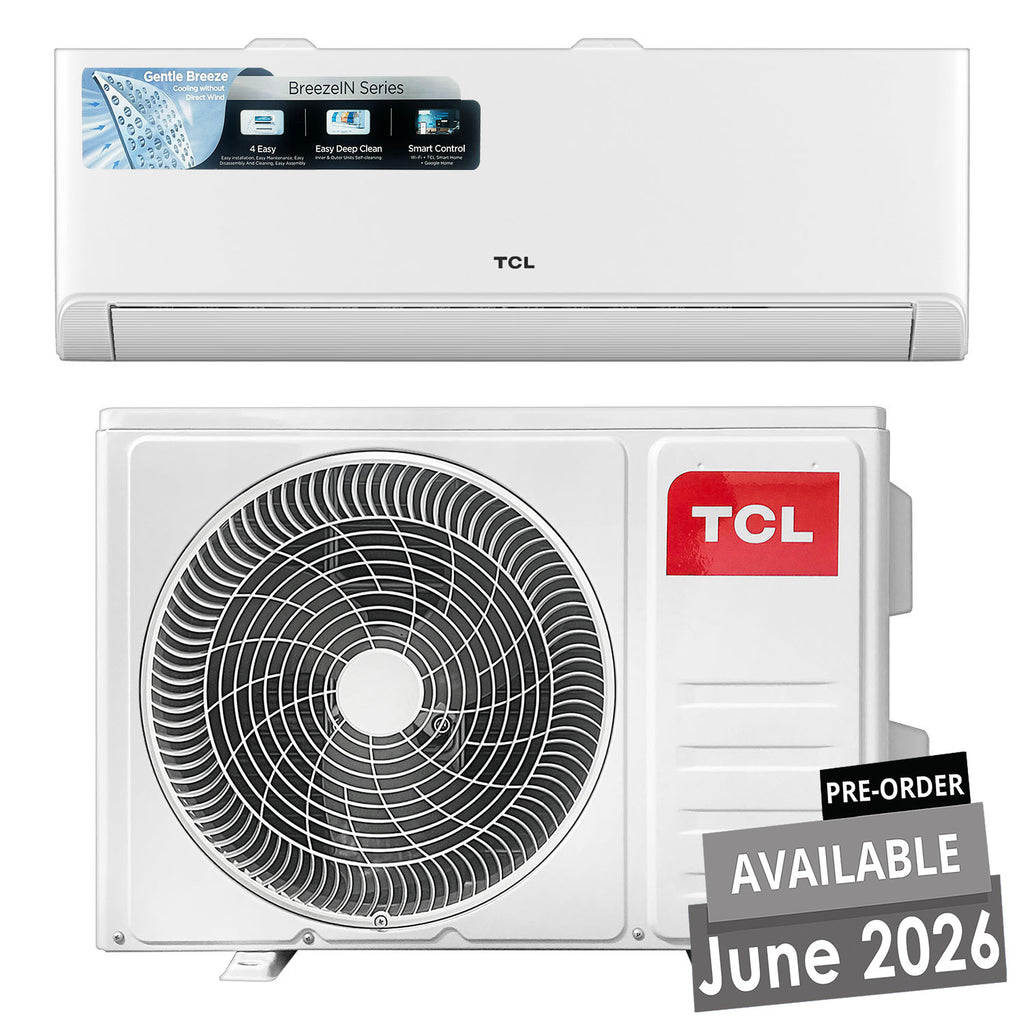

TCL - Air Conditioner (12000BTU)

Inverter – BreezeIN Series

Brand: TCL

Model: TAC-13CSD

Capacity: 1200BTU

Type: Cooling Only

Control type: Remote & App

Rated Cooling Capacity (Btu/h): 12500 (3360~13170)

Rated Cooling Capacity (W): 3665 (985~3860)

CSPF (Btu/h.w; W/W): 5.421

Star Rating: 5 Star

Moisture removal (Liters/h): 1

Indoor noise level at cooling (dB (A)):

• High: 44
• Med: 41
• Low: 38

Outdoor noise level (dB (A)): 55

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

Power Supply:

Power Supply: 220-240V~/50Hz/1P

Voltage Range: 165 ~ 265V

Rated current (Cooling): 5.3 (1.5~8.0) V

Rated input (Cooling): 1160 (260~1700) W

Max current: 8 A

Max input: 1700 W

Fan System:

Indoor air circulation Cooling (m3/h): 600

Indoor fan type: Cross Flow

Outdoor fan type: Propeller Fan

Additional Specs:

Refrigerant/Charge: R32/0.45Kg

Compressor (Type): Rotary

Connecting Pipe:

• Gas: Ø9.52 (3/8'')
• Liquid: Ø6 (1/4'')

Connecting Wiring (Size x Core number): 4 x 1.0

Suitable area: 15-23 m²

Dimension & Weight:

Width x Depth x Height

Indoor Unit:

• Product Dimension: 788 x 192 x 275mm (31” x 7.6” x 10.8”)
• Packing Dimension: 850 x 275 x 320mm (33.5” x 10.8” x 12.6”)
• Net Weight: 8.5kg
• Gross Weight: 10.5kg

Outdoor Unit:

• Product Dimension: 787 x 290 x 498mm (31” x 11.4” x 19.6”)
• Packing Dimension: 818 x 325 x 520mm (32.2” x 12.8” x 20.5”)
• Net Weight: 21kg
• Gross Weight: 24kg

Packing Contents:

12k BTU Indoor Unit – x1

• 12ft. Electric wire – x1
• Remote Control – x1
• AAA Battery – x2
• Wall Mount Remote Holder – x1
• Screws – x7
• Wall Plugs – x7
• App Control Manual – x1
• Warranty Certificate – x1
• User Manual – x1

12k BTU Outdoor Unit – x1

• 1/4" Copper Tube (13ft.) – x1
• 3/8” Copper Tube (13ft.) – x1
• Drainage Hose – x1
• Wrapping Roll – x1
• Insulation Sheath – x1
• Plasticene RoHS – x1
