Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.

Specification

TCL - Air Conditioner (2400BTU)

Inverter – BreezeIN Series

Brand: TCL

Model: TAC-25CSD

Capacity: 2400BTU

Type: Cooling Only

Control type: Remote & App

Rated Cooling Capacity (Btu/h): 24191 (5118 ~ 24566)

Rated Cooling Capacity (W): 7090 (1500 ~ 7200)

CSPF (Btu/h.w; W/W): 5.243

Star Rating: 5 Star

Moisture removal (Liters/h): 2

Indoor noise level at cooling (dB (A)):

• High: 52
• Med: 49
• Low: 46

Outdoor noise level (dB (A)): 57

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

Power:

Power Supply: 220-240V~/50Hz/1-Phase

Voltage Range: 165 ~ 265V

Rated current (Cooling): 10 (1.5~13) V

Rated input (Cooling): 2250 (200 ~ 2650) W

Max current: 13 A

Max input: 2650 W

Fan System:

Indoor air circulation Cooling (m3/h): 1300

Indoor fan type: Cross Flow

Outdoor fan type: Propeller Fan

Additional Specs:

Refrigerant/Charge: R32/0.75Kg

Compressor (Type): Rotary

Connecting Pipe:

• Gas: Ø12 (1/2'')
• Liquid: Ø6 (1/4'')

Connecting Wiring (Size x Core number): 4 x 0.75

Suitable area: 30-50 m²

Dimension & Weight:

Width x Depth x Height

Indoor Unit:

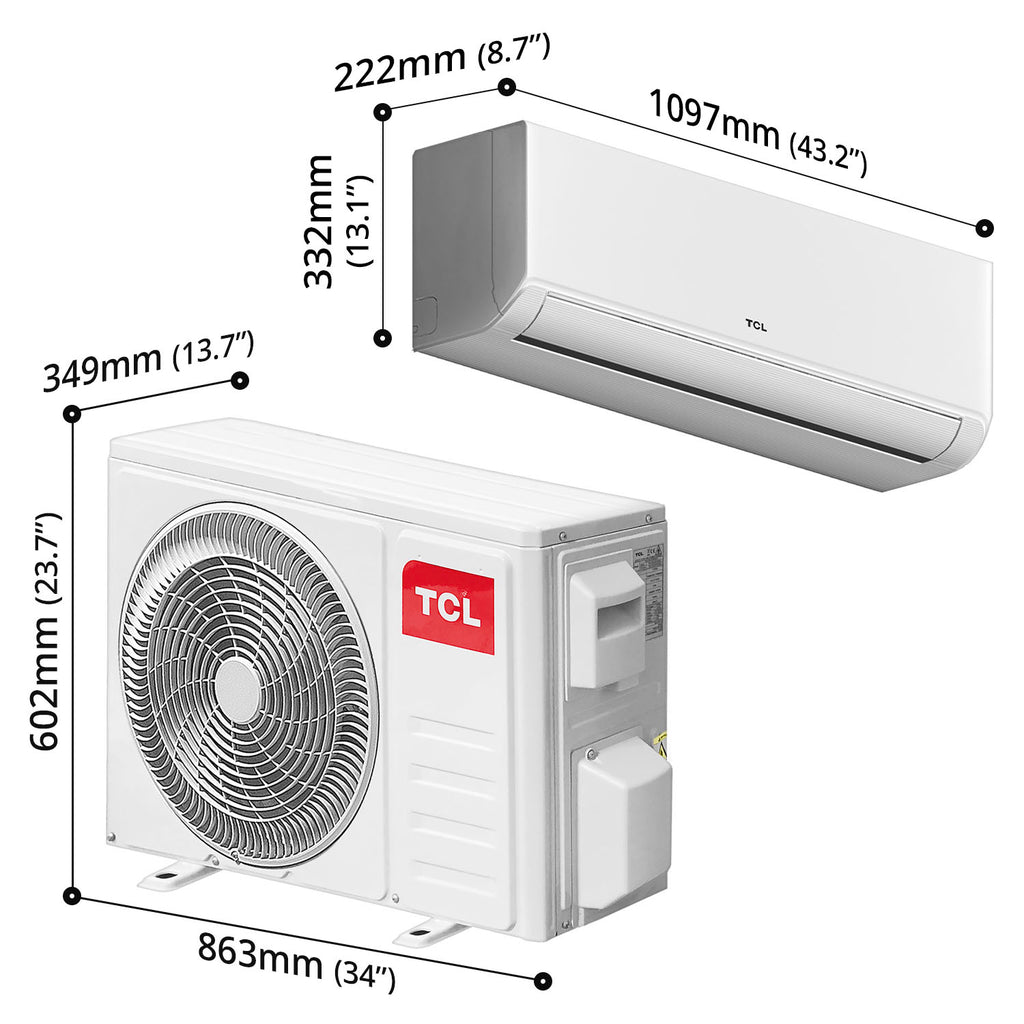

• Product Dimension: 1097 x 222 x 332mm (43.2” x 8.7” x 13.1”)
• Packing Dimension: 1165 x 295 x 405mm (45.9” x 11.6” x 15.9”)
• Net Weight: 14kg
• Gross Weight: 16kg

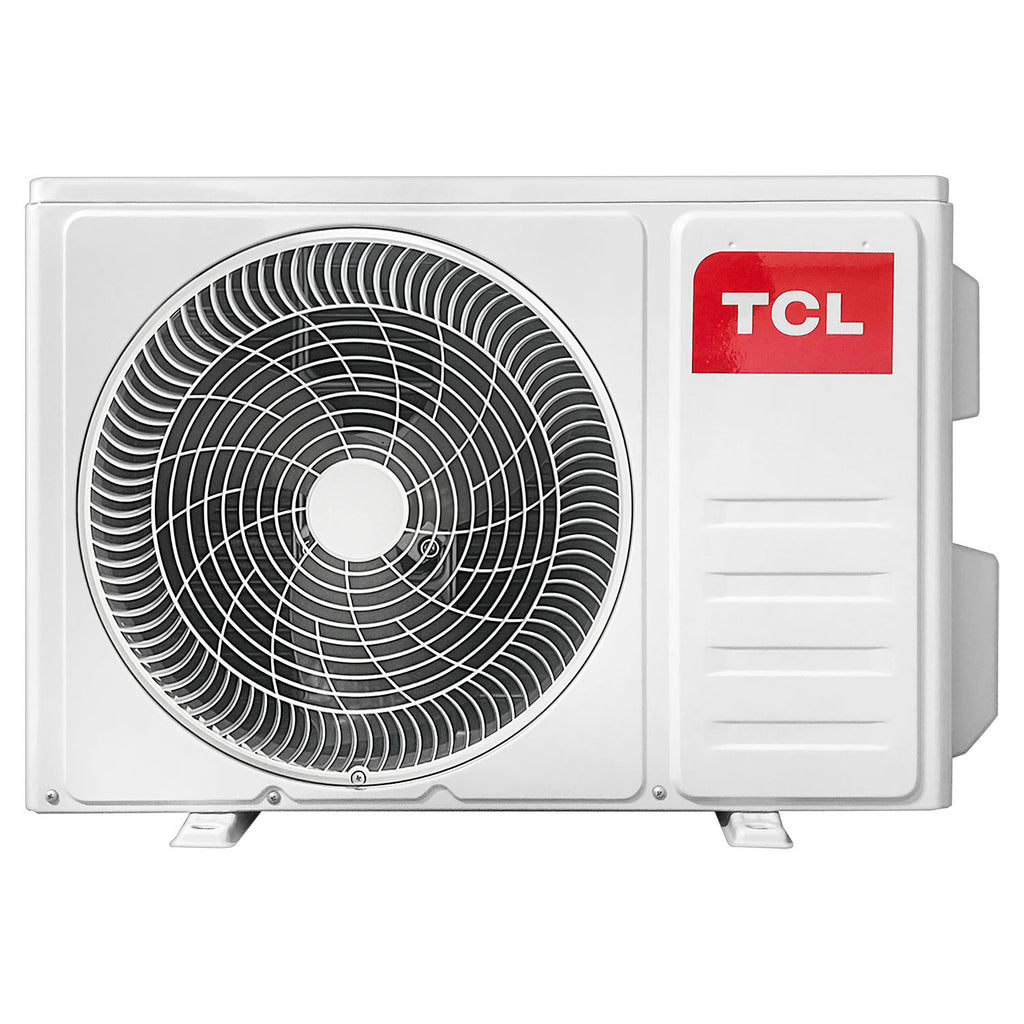

Outdoor Unit:

• Product Dimension: 863 x 349 x 602mm (34” x 13.7” x 23.7”)
• Packing Dimension: 890 x 385 x 628mm (35” x 15.2” x 24.7”)
• Net Weight: 28kg
• Gross Weight: 31kg

Packing Contents:

24k BTU Indoor Unit – x1

• 12ft. Electric wire – x1
• Remote Control – x1
• AAA Battery – x2
• Wall Mount Remote Holder – x1
• Screws – x7
• Wall Plugs – x7
• App Control Manual – x1
• Warranty Certificate – x1
• User Manual – x1

24k BTU Outdoor Unit – x1

• 1/2" Copper Tube (13ft.) – x1
• 1/4” Copper Tube (13ft.) – x1
• Drainage Hose – x1
• Wrapping Roll – x1
• Insulation Sheath – x1
• Plasticene RoHS – x1
