Specification

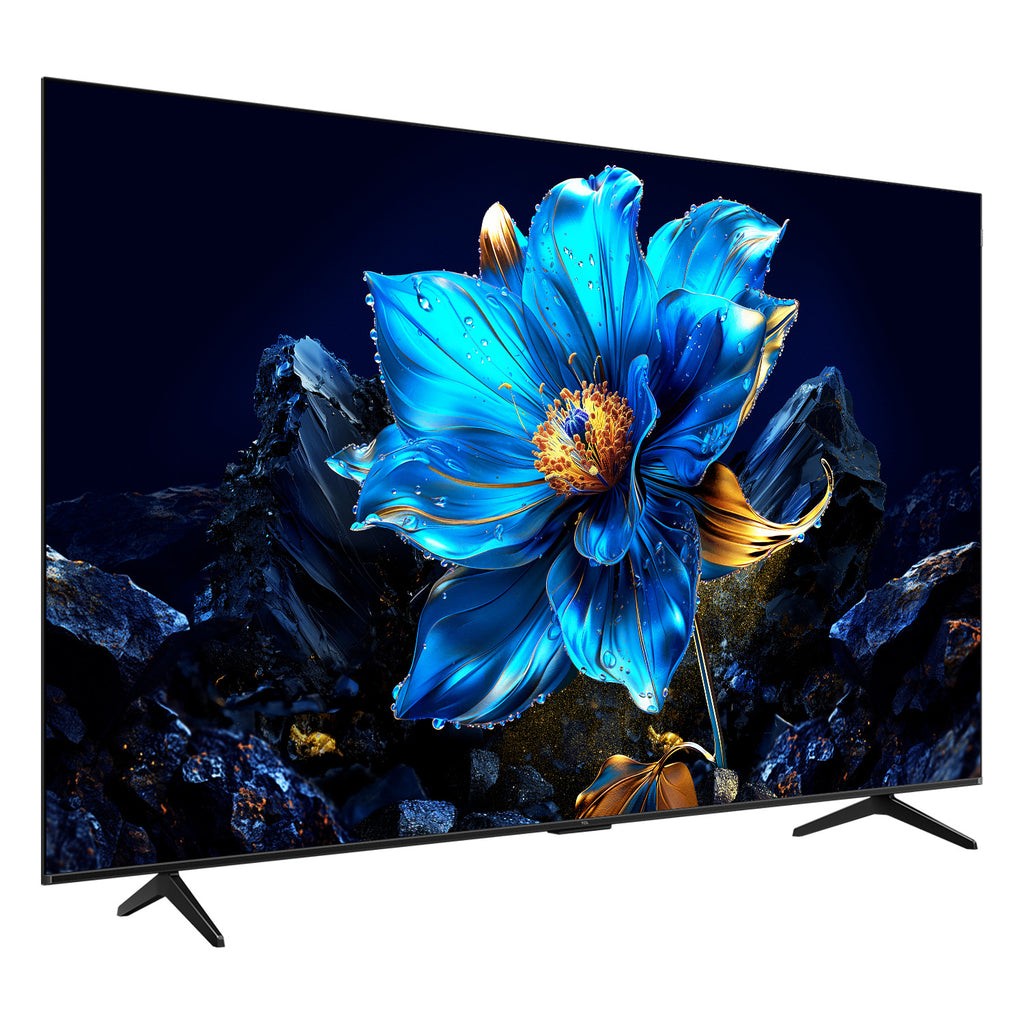

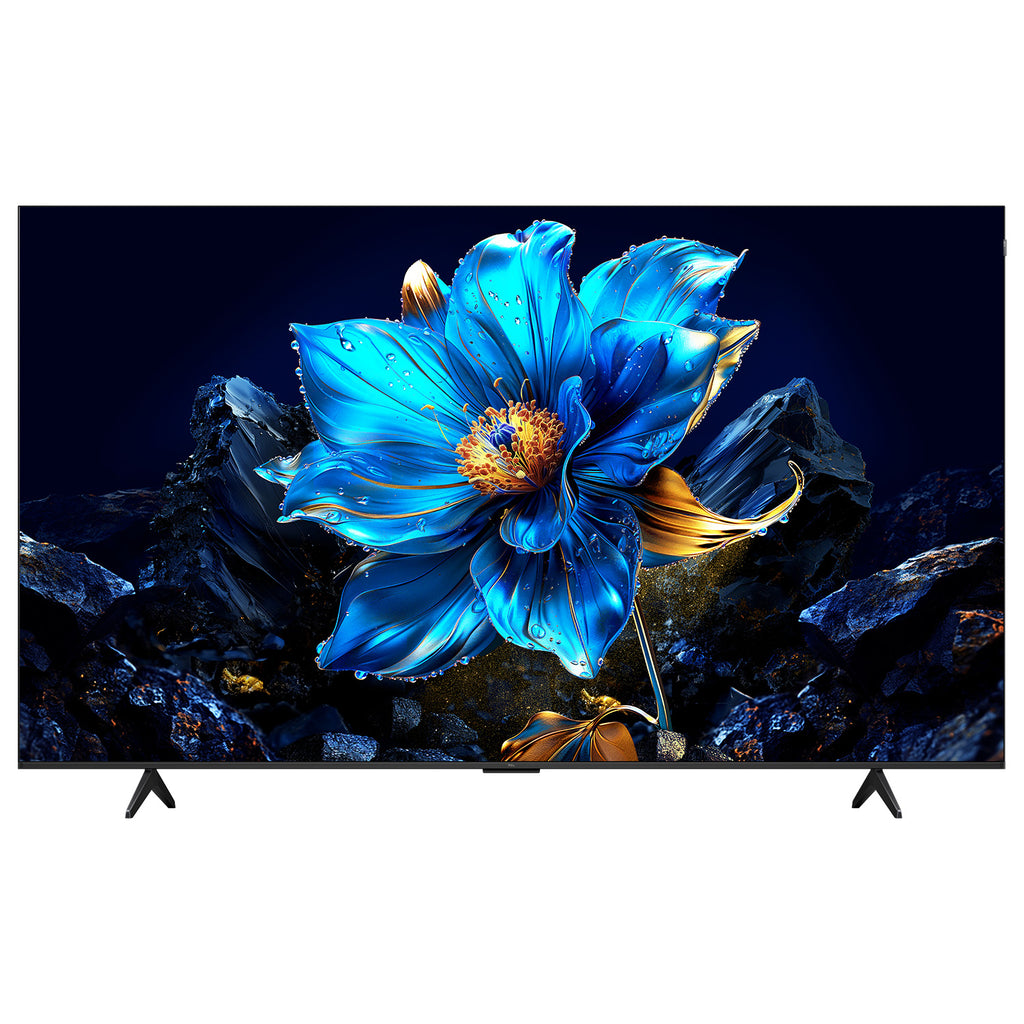

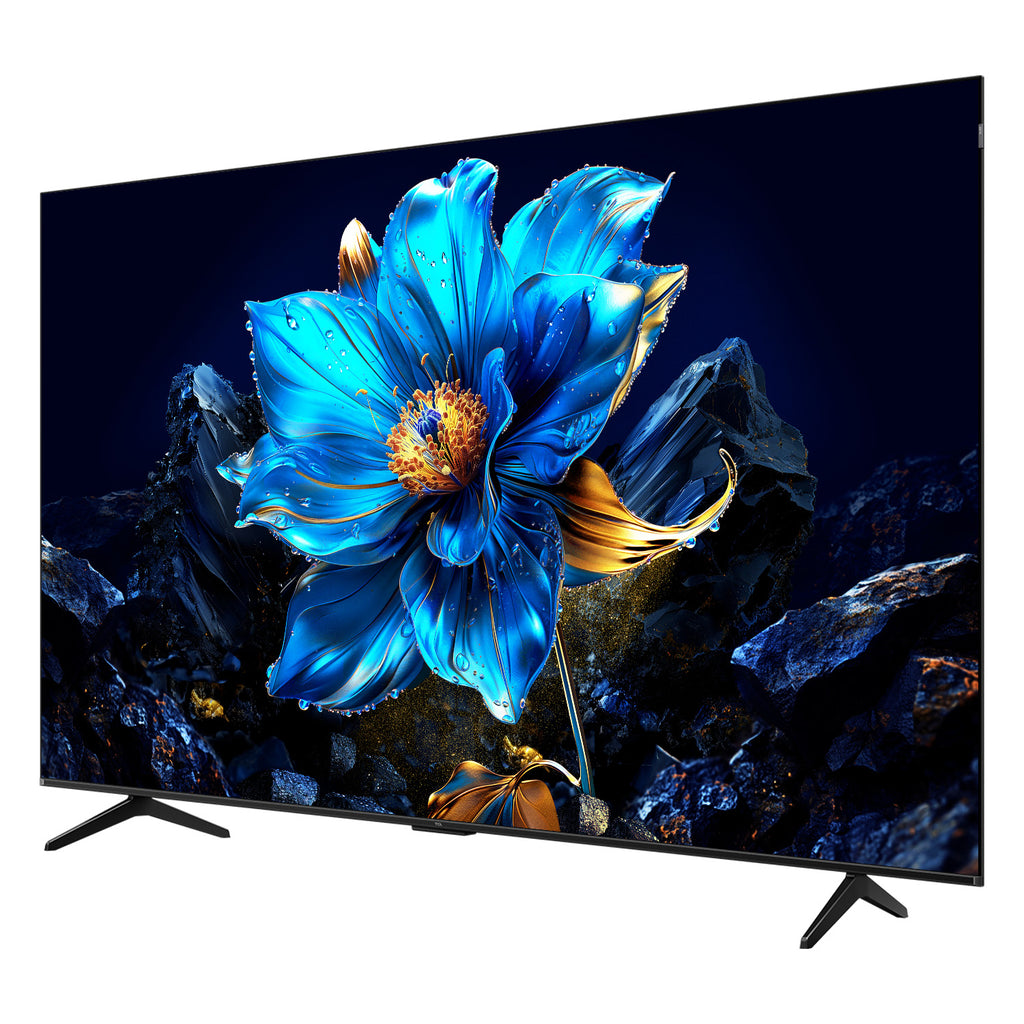

TCL 85” 4k QLED Google TV

Basic Information:

Brand: TCL

Model: 85P7K

Size: 85-inch

Display Type: 4K QLED

Operating System: Google TV

CPU: CA75x2 + CA55x2 1.3GHz

RAM / Storage: 2GB / 16GB

Local Dimming: No

Wireless: Wi-Fi 5

Bluetooth: BT 5.4

Power Supply: AC 100V-240V 50/60Hz

Power Consumption:

• TV On: 320W
• Standby: < 0.5W

ECO Energy Efficiency: Yes

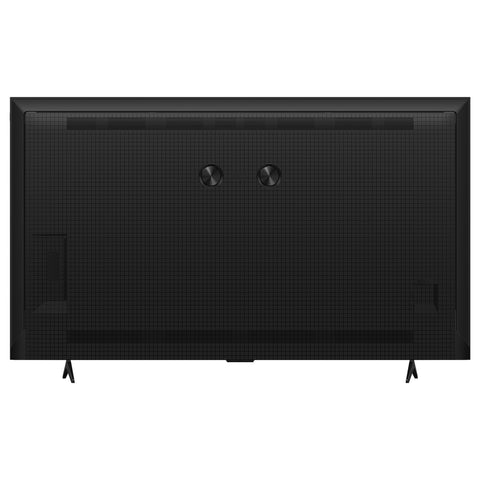

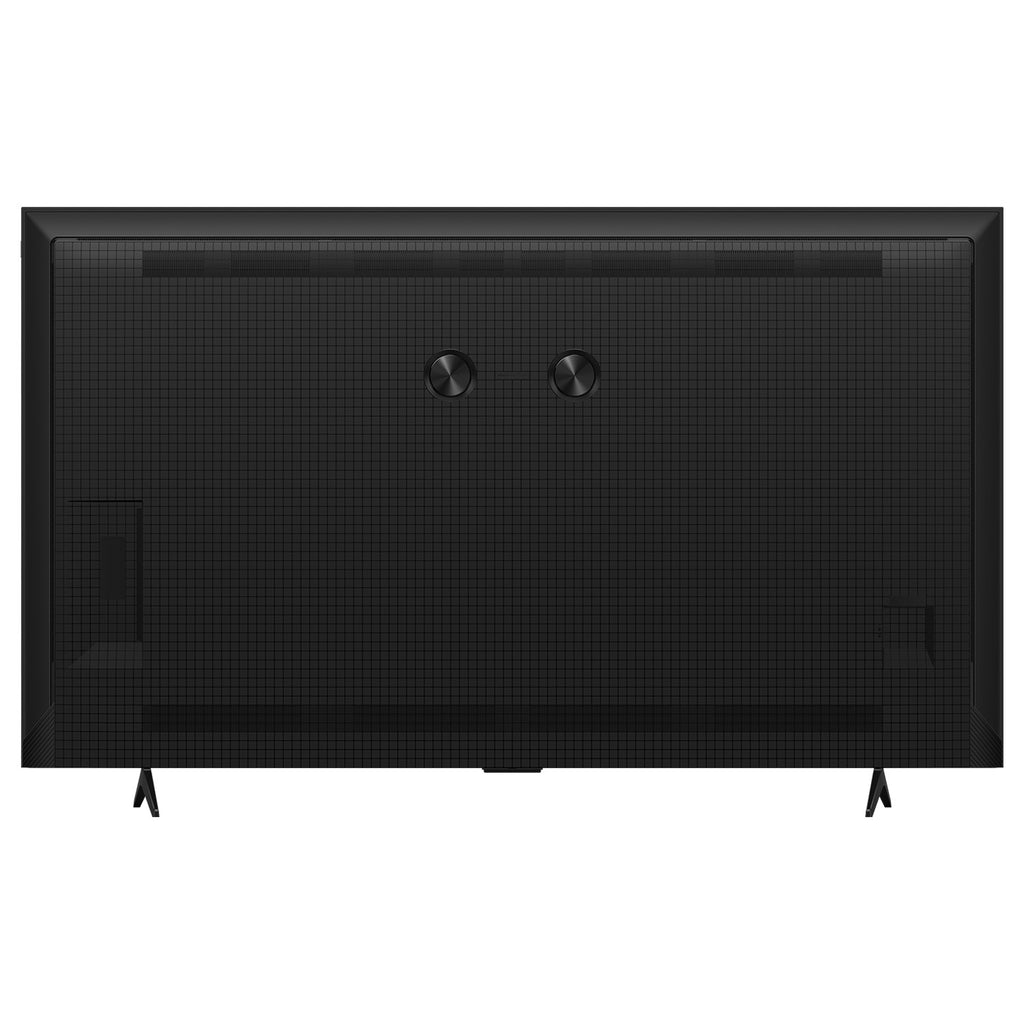

VESA Hole Pattern: 600 x 400mm

Warranty: 12 Months Warranty

Panel Specification:

Screen Size (Diagonal): 85-inch (84.6” active area)

Resolution: 3840 x 2160 (4K UHD)

Aspect Ratio: 16:9

Brightness (cd/m2): 450 (typ.)

Viewing Angle (H/V) (Open Cell): 178°/178° (typ.)

Color: 1.07G 8bit+FRC, Quantum Dots

Color Gamut: typ. 93% DCI-P3

Refresh Rate (Hz): 60Hz (VRR 120Hz/DLG 120Hz)

MEMC: 60Hz

Picture:

Picture Preset: Standard, Sports, Movie, Intelligent

Picture certification: HDR10+, HLG, HDR, Dolby Vision

Audio:

Special Feature: ONKYO Audio System

Channel Configuration: 2.0CH

Audio Power Output (THD=7%): 2x 10W + 20W

Sound Mode: Dynamic, Standard, Movie, Music, Voice, Game, Sport

Audio Certification: DTS Virtual:X & Dolby Atmos

USB Device Media Format

Music: MP3, MKV, WMA, AV

Picture: JPEG, PNG, BMP, HEIF codec

Multimedia Video/Audio Decoder: H.264, MPG1/2/4, WMV, VC1, VP8, VP9, AV1

Video Format: Up to 4k@60Hz

USB Mouse/Keyboard Support: Yes

Basic Function:

Google Assistant:

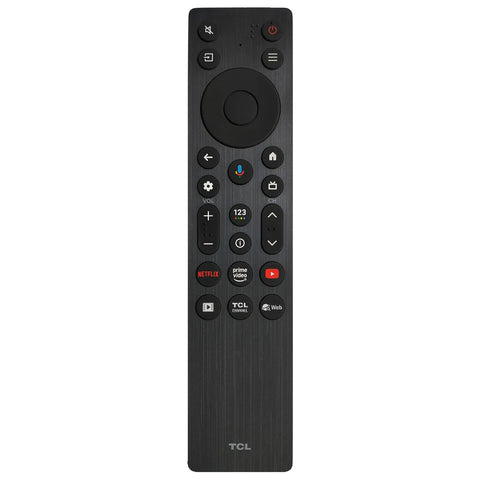

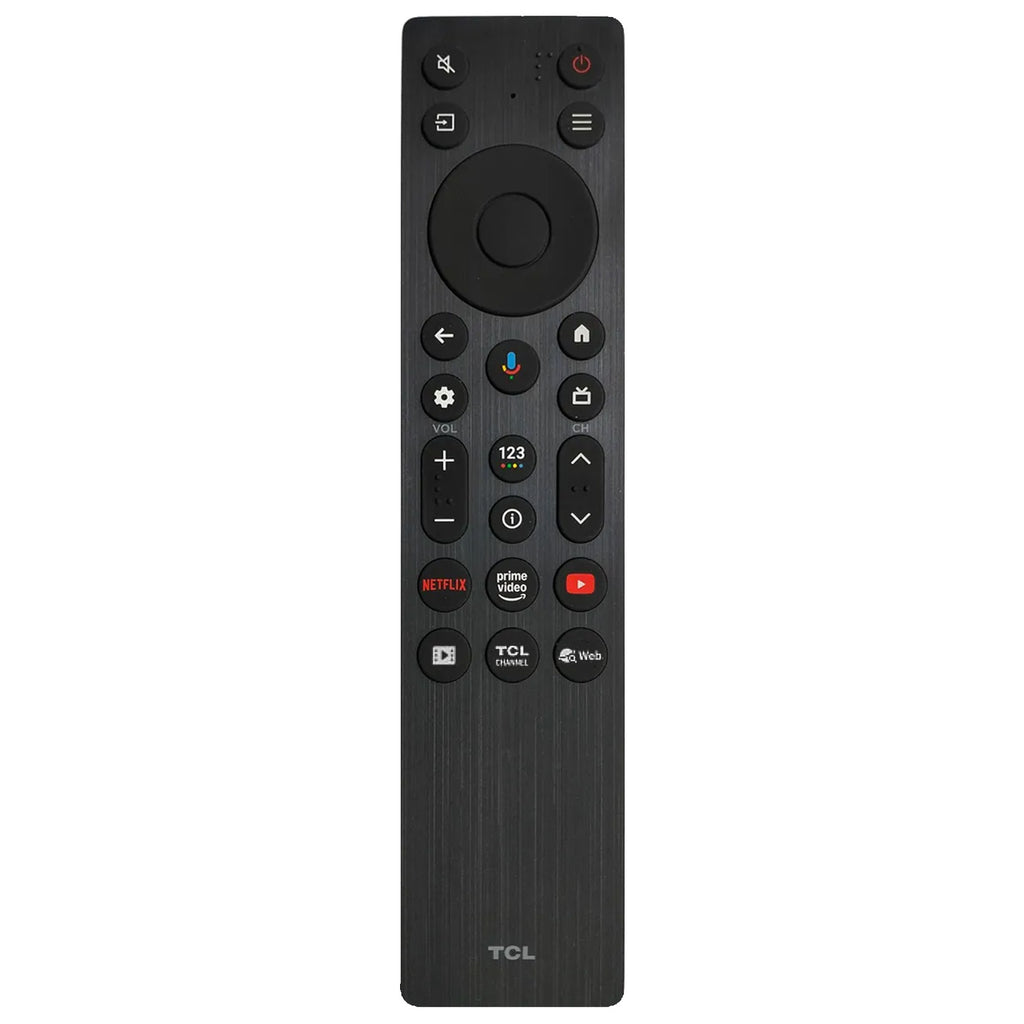

• Voice input via remote control.
• Hands-free voice input via built-in MIC.

Input Method: T-IME, Gboard, Virtual Remote Keyboard

HDMI CEC: Yes

Connection Authentication: Airplay2

EPG: Yes (for DTV only)

Closed Caption/Subtitle: Yes (for DTV only)

Parental Control: Yes (for DTV only)

Featured Apps:

• Google Play Store – Access apps & games
• YouTube – Watch online content
• Netflix – Stream movies & series
• Google Play Games – Game platform
• Google Play Movies & TV – Watch movies/shows
• Google Cast – Cast content from phone/tablet/laptop
• Media Center – USB media playback

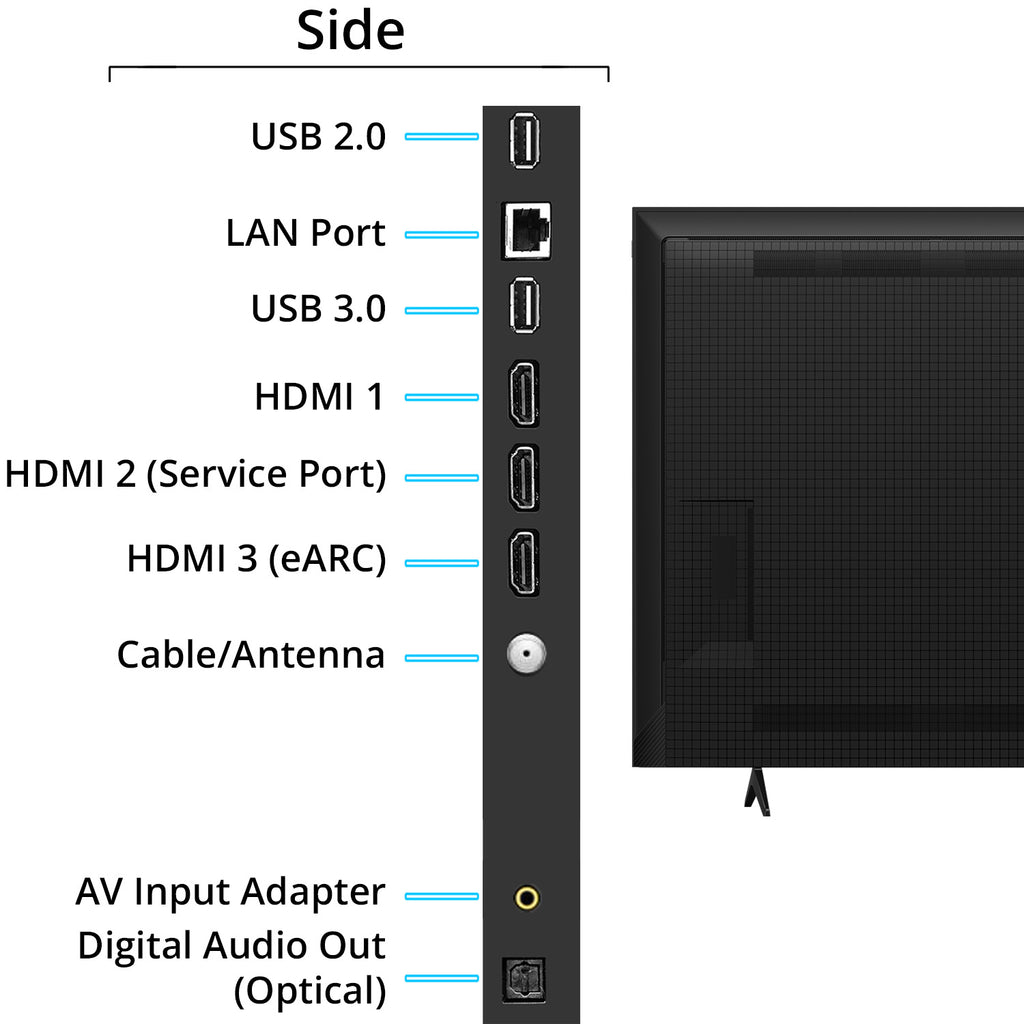

Connectivity:

Right Side:

• USB 2.0 – x1
• LAN Port – x1
• USB 3.0 – x1
• HDMI 1 – x1
• HDMI 2 (Service Port) – x1
• HDMI 3 (eARC) – x1
• Antenna/Cable In – x1
• AV Input – x1
• Digital Audio Output (Optical) – x1

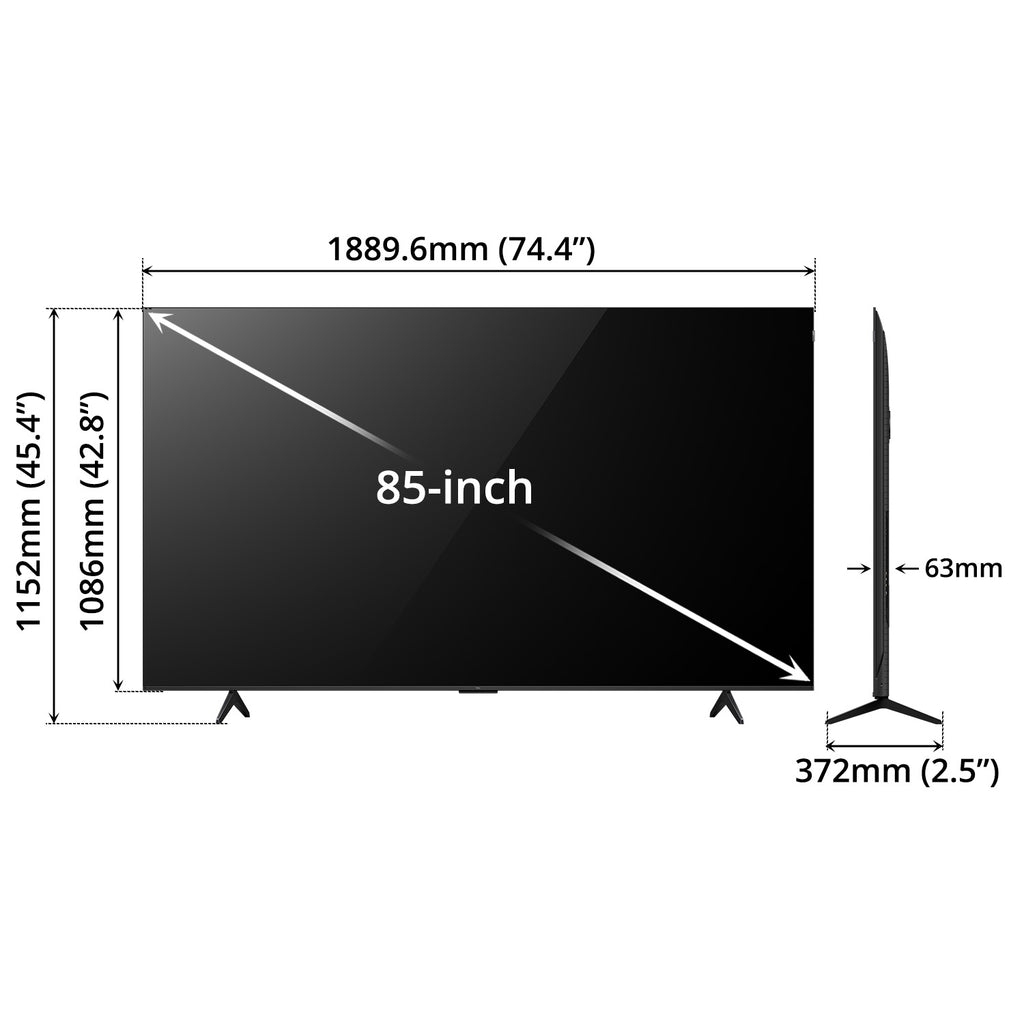

Dimensions & Weight:

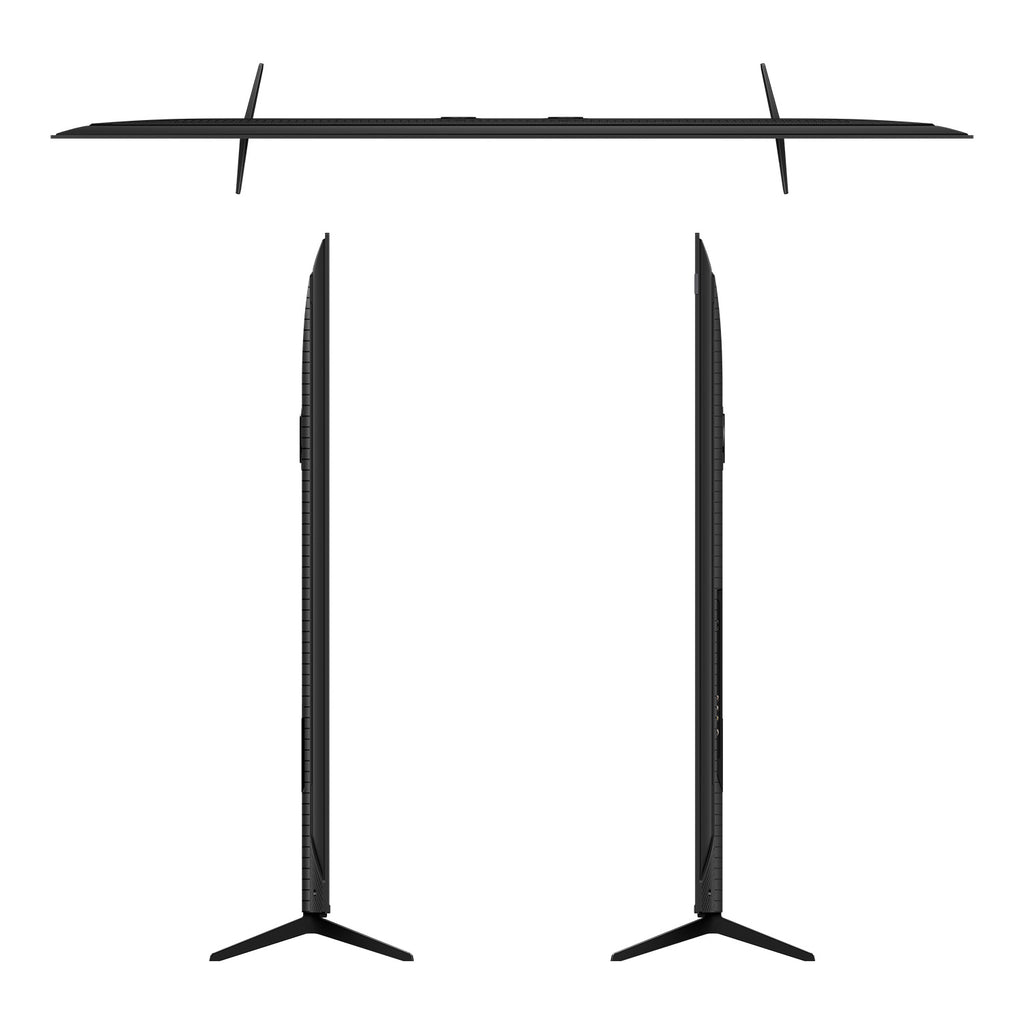

Product Dimension with Stand (W x D x H): 1889.6 x 372 x 1152mm (74.4” x 14.6” x 45.4”)

Product Dimension without Stand (W x D x H): 1889.6 x 63 x 1086mm (74.4” x 2.5” x 42.8”)

Carton Dimension (W x D x H): 2060 x 190 x 1260mm (81.1” x 7.5” x 49.6”)

Net Weight (with Stand): 31kg

Net Weight (without Stand): 30.3kg

Gross Weight (with Packaging): 48kg
