Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.

Specification

Midea – Air Conditioner

Inverter-Xtreme Plus

Brand: Midea

Model: MSAI-13CRFN8

Capacity: 12000BTU

Type: Cooling Only

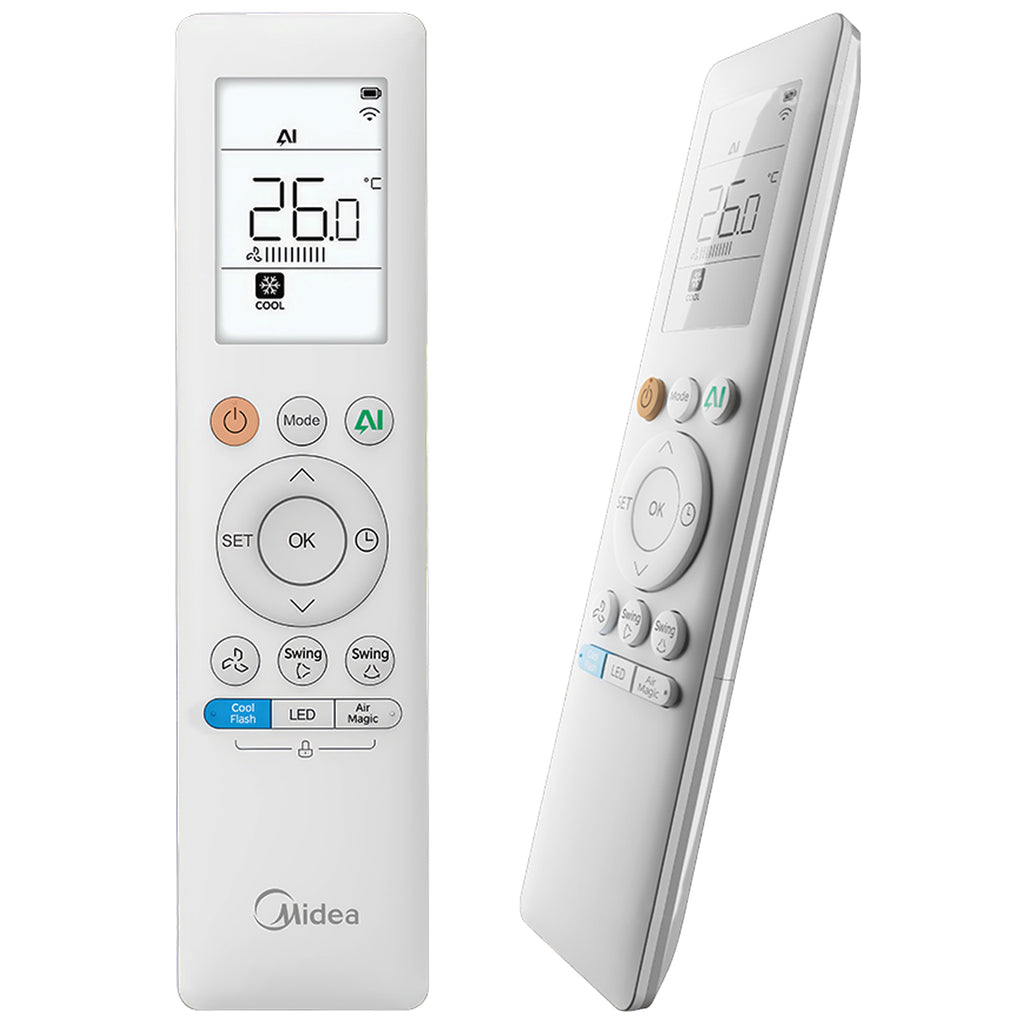

Control type: Wireless Remote Control, Smart App Control (Build In)

Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50/60 Hz

Cooling:

• Cooling Capacity (Btu/h): 12,500 (2,798-14,876)
• Input (W): 1110W
• Rated Current (A): 4.9A
• EER (W/W): 5.46

Max. Input Consumption (W): 1390W

Max. Current (A): 6.2A

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

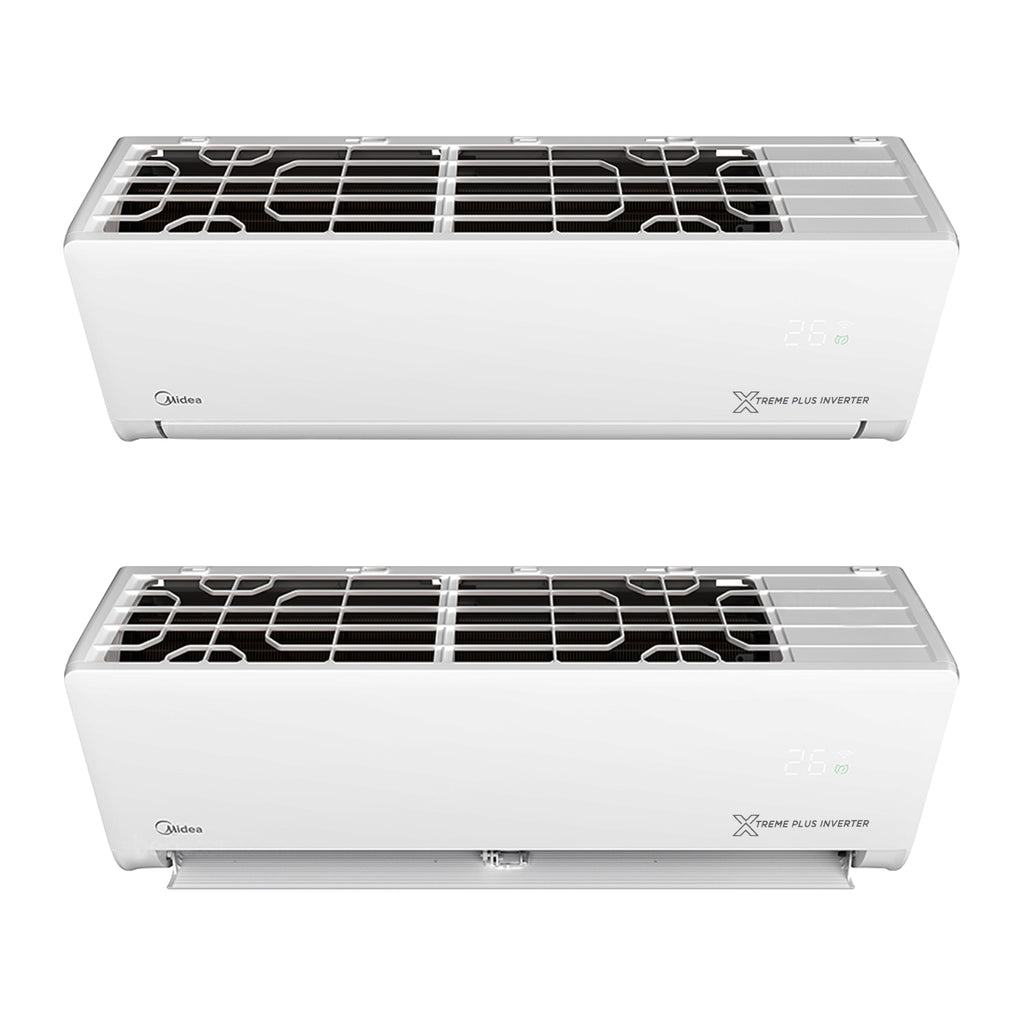

Indoor Unit:

Indoor air flow: 625 (368) m3/h(cfm)

Indoor noise level (High/Middle/Low): 38/31.5/29/0 dB (A)

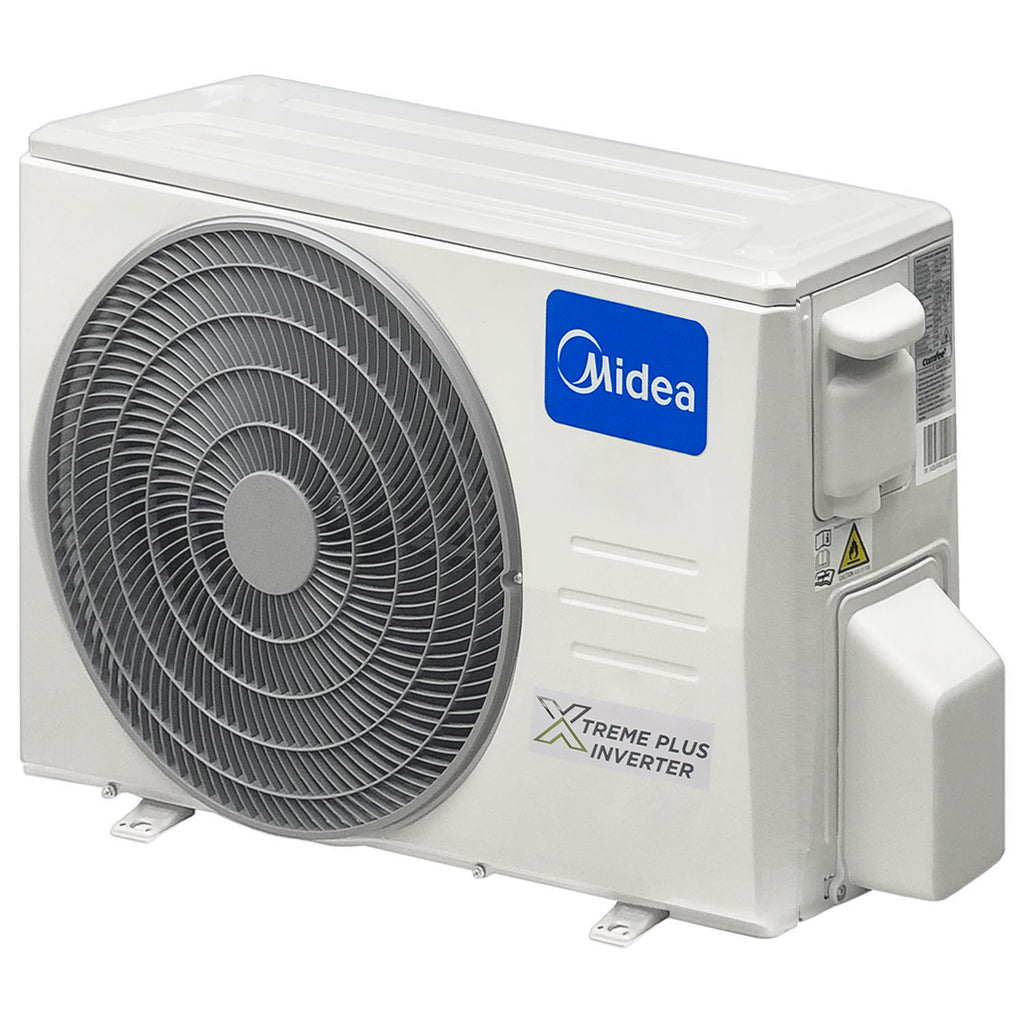

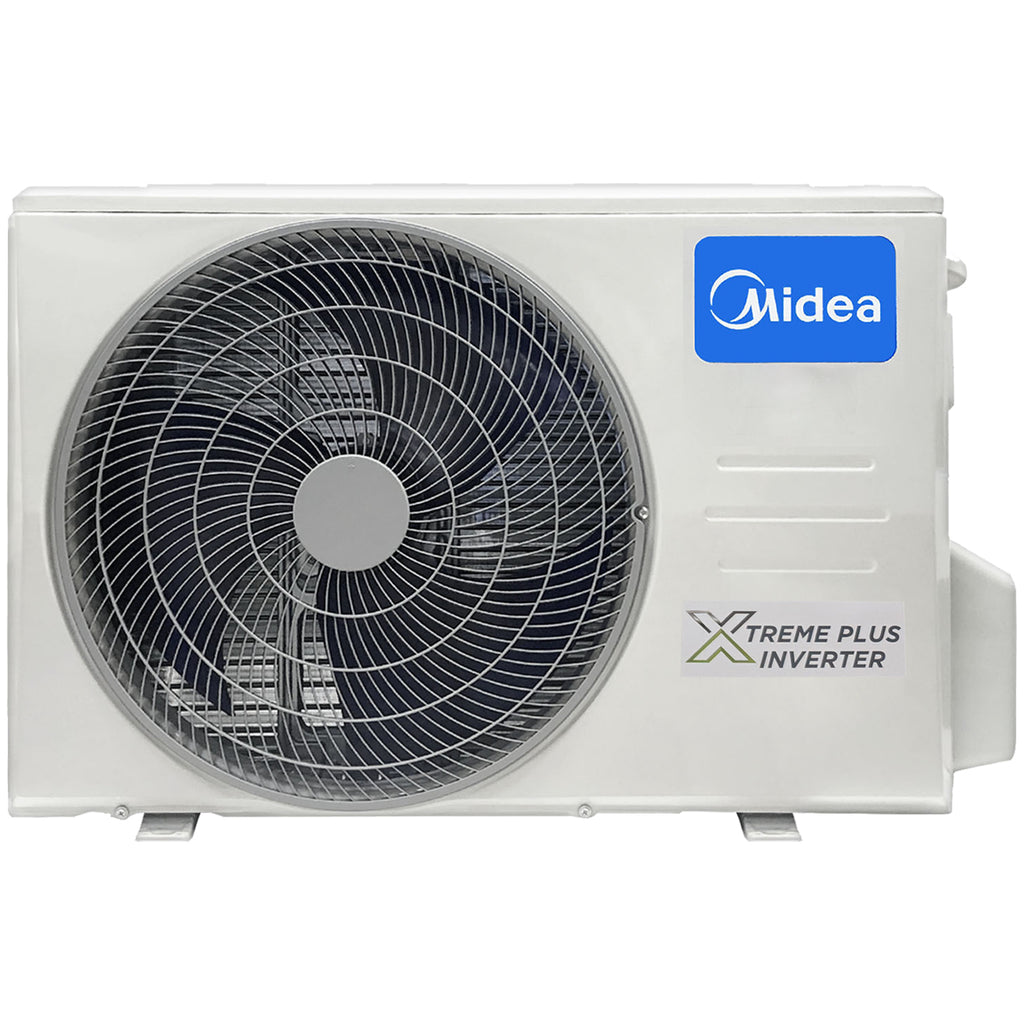

Outdoor Unit:

Outdoor noise level: 54 dB (A)

Refrigerant Charge: R32/420g

Design Pressure: 4.3/1.7 MPa

Refrigerant Piping:

• Liquid Side / Gas Side: 6.35mm (1/4in) / 9.52mm (3/8in)
• Max. Refrigerant Pipe Length: 25m
• Max. Difference in Level: 10m

Connection Wiring: 4x1.5mm2 (not included)

Power Supply Wiring: 3x1.5mm (not included)

Thermostat Type: Wireless Remote Control, Smart App Control (Build In)

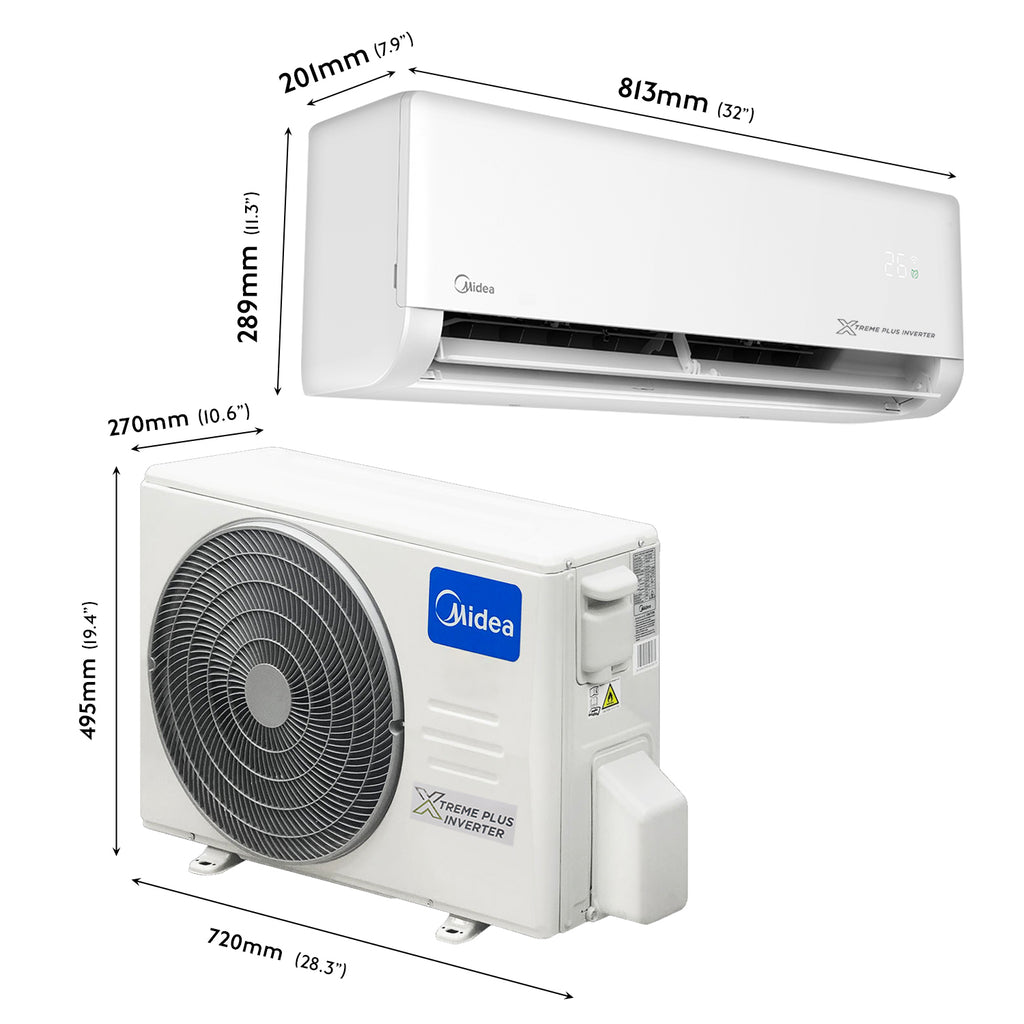

Dimension & Weight:

Weight x Depth x Height

Indoor Unit:

• Product Dimension: 813 x 201 x 289mm (32” x 7.9” x 11.3”)
• Packing Dimension: 870 x 270 x 360mm (34.2” x 10.6” x 14.1”)
• Net Weight: 8.1kg
• Gross Weight: 10.6kg

Outdoor Unit:

• Product Dimension: 720 x 270 x 495mm (28.3” x 10.6” x 19.4”)
• Packing Dimension: 828 x 330 x 530mm (32.5” x 12.9” x 20.8”)
• Net Weight: 19.6kg
• Gross Weight: 22.7kg
