Specification

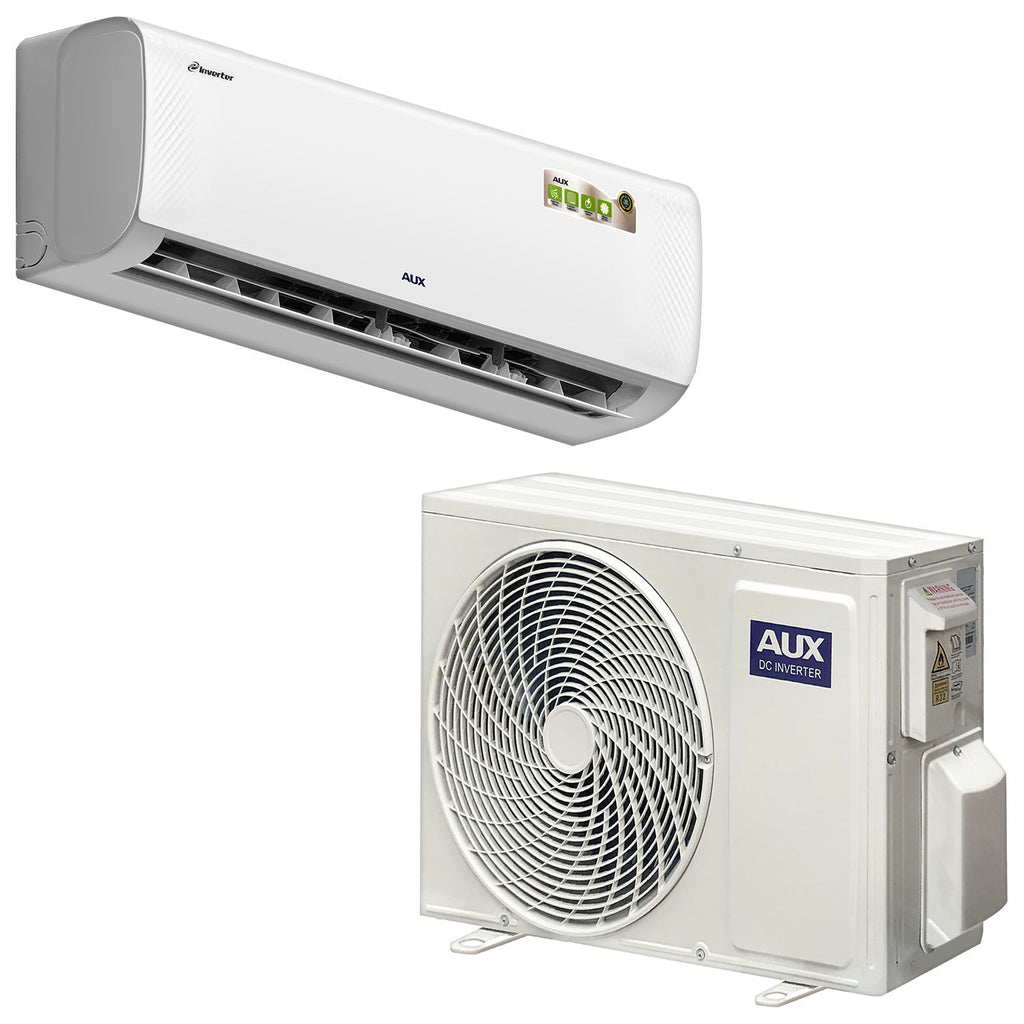

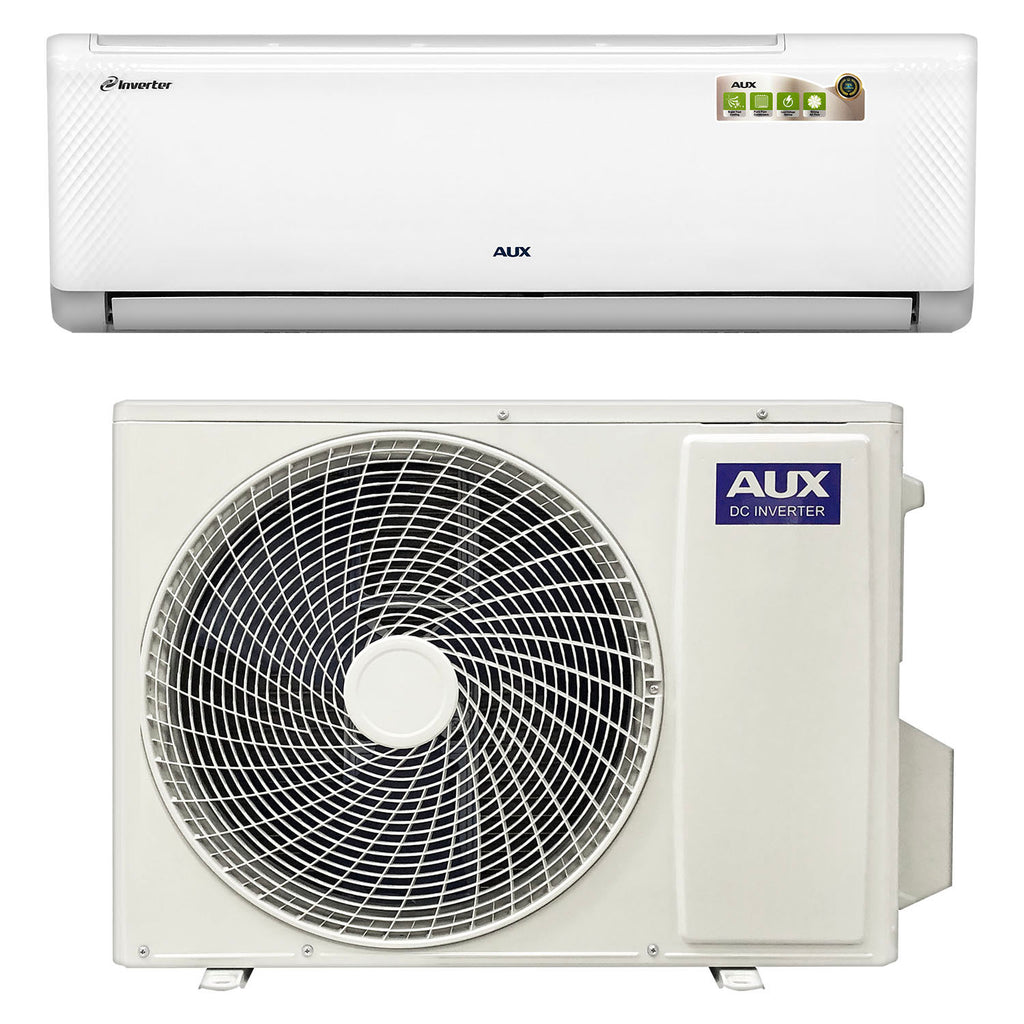

Aux – Air Conditioner (12000BTU)

Brand: Aux

Model: MASDC12QGR1

Capacity: 12000BTU

Color: White

Cooling:

• Rated Capacity: 3500W (800 - 4000W)
• Rated Power Consumption: 1180W (400 – 1600W)
• Rated Running Current: 5.6A (1.7 – 7.1A)

Max. Input Power: 1600W

Max. Input Current: 8A

EER Cooling: 2.97 W/W

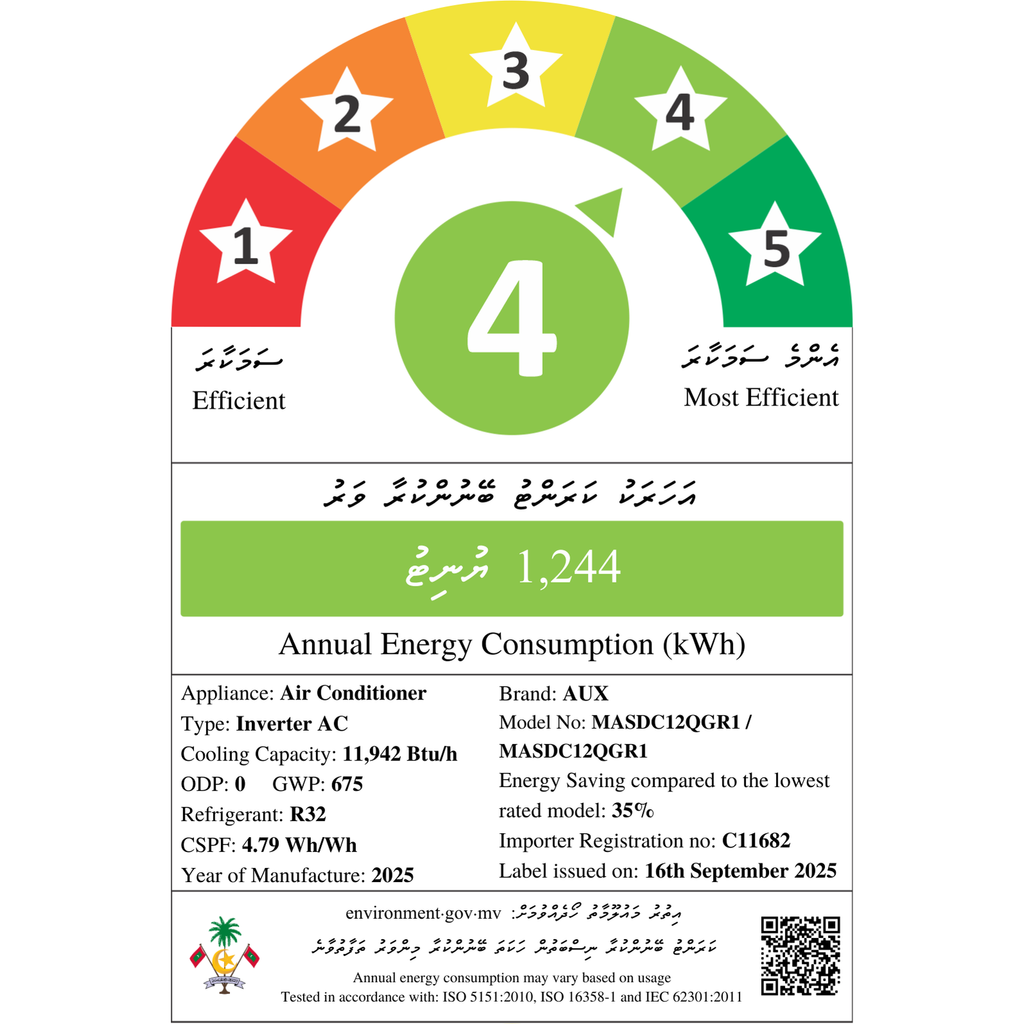

EU Energy Rating: A++

Power Supply Source: 220 ~ 240V - 1Ph - 50Hz

Refrigerant: R32

Refrigerant charged: 400g

Max. Discharge Pressure: 4.3 Mpa

Max. Suction Pressure: 2.5 Mpa

Air Flow Volume: 600 m3/h

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

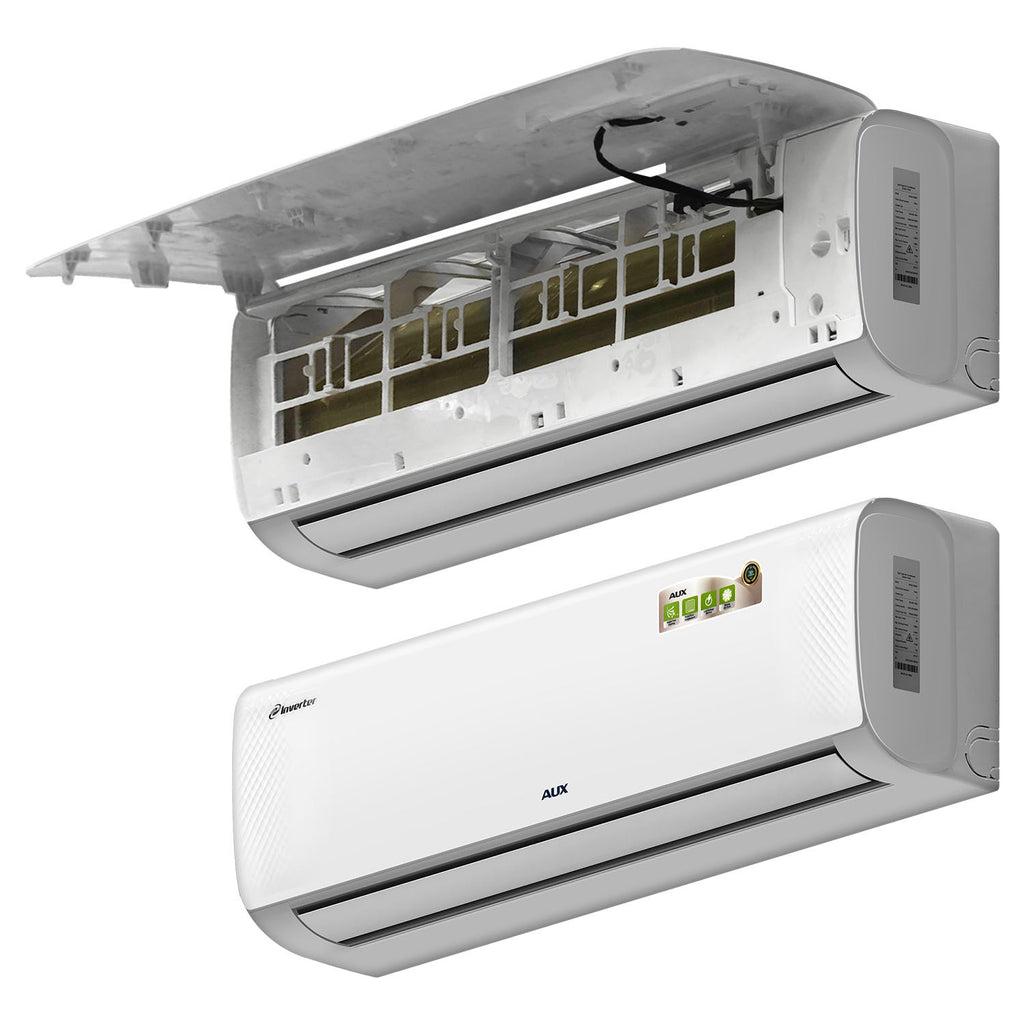

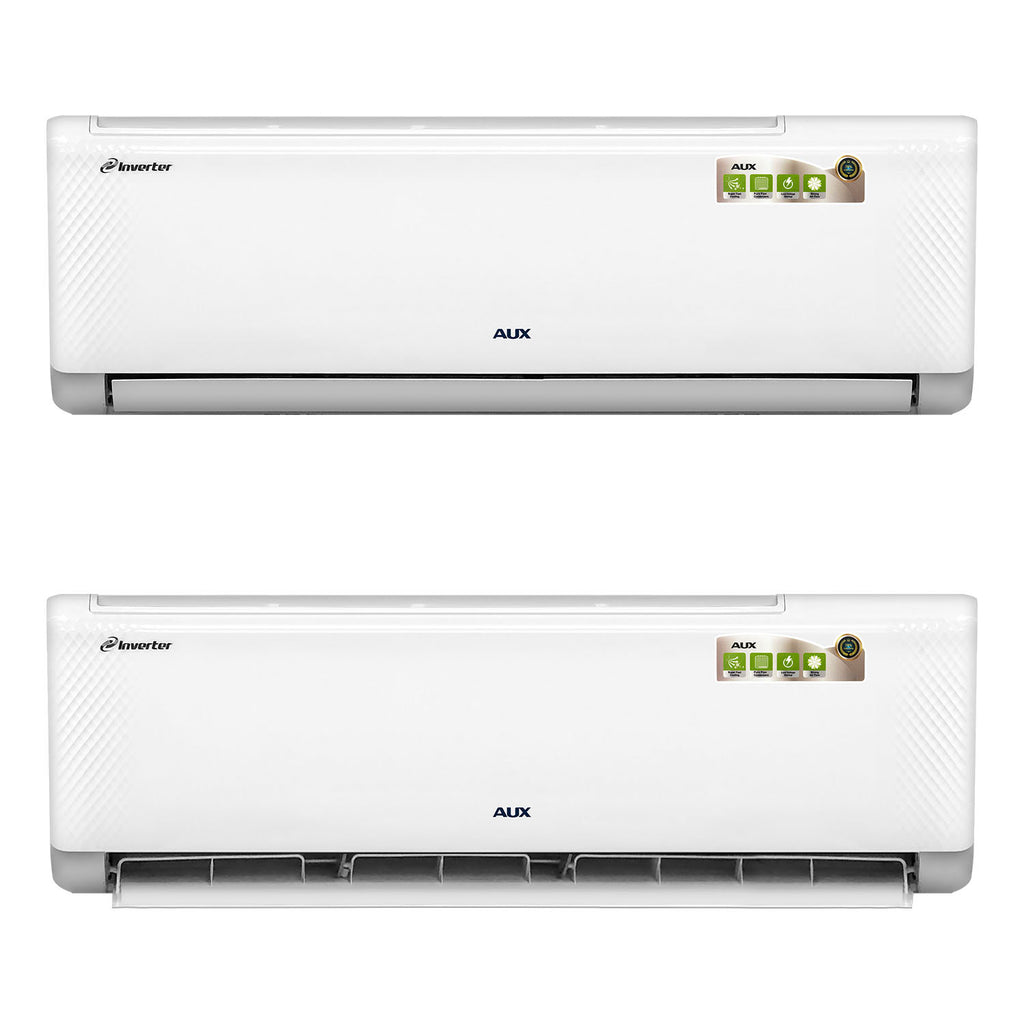

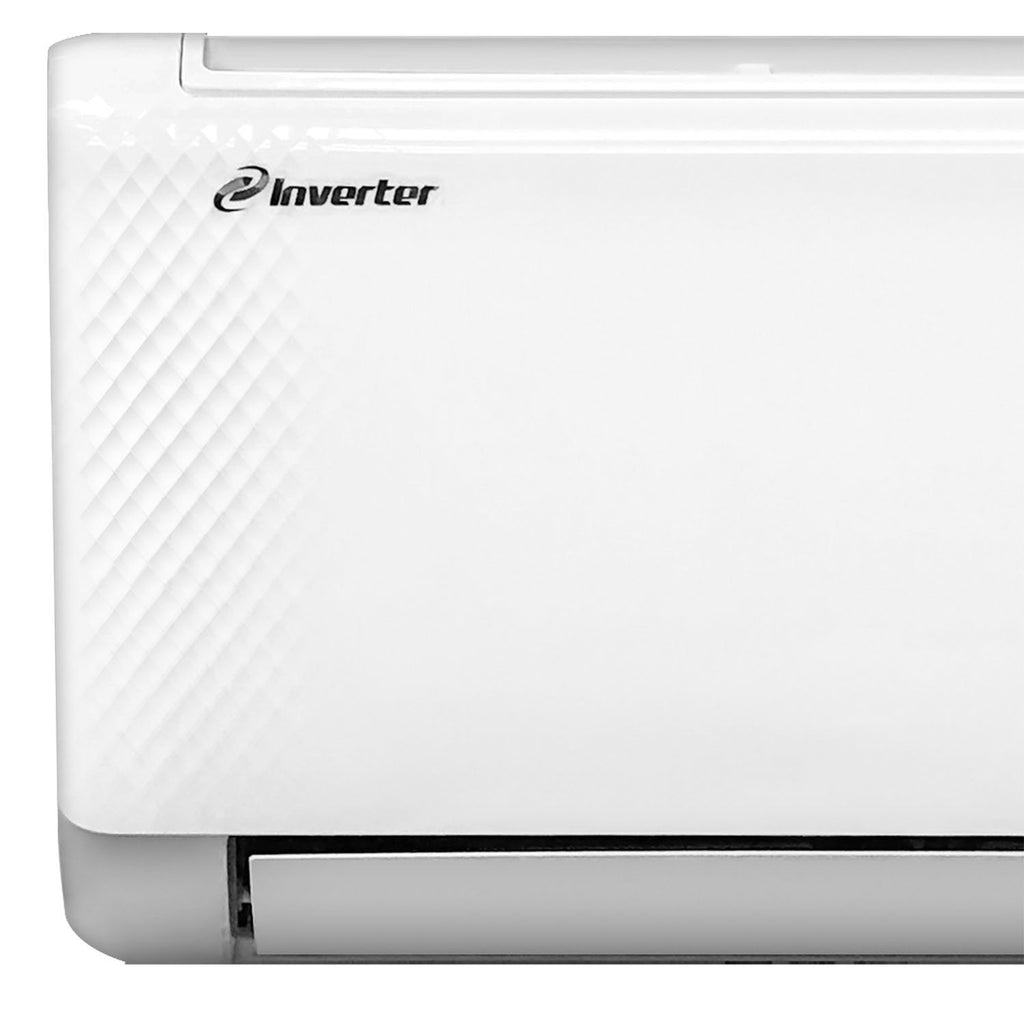

Indoor Unit:

Indoor Noise Level: 41 dB(A)

Evaporator:

• Rows: 2
• Tube pitch: 19.05
• Tube Material: screws inside
• Tube Thickness: 0.2mm
• Tube Quantity: 16
• Fin Material: hydrophilic foil
• Fin Type: window
• Fin Thickness: 0.094mm
• Fin spacing: 1.3mm

Fan System:

• Type: Crossflow
• Material: AS

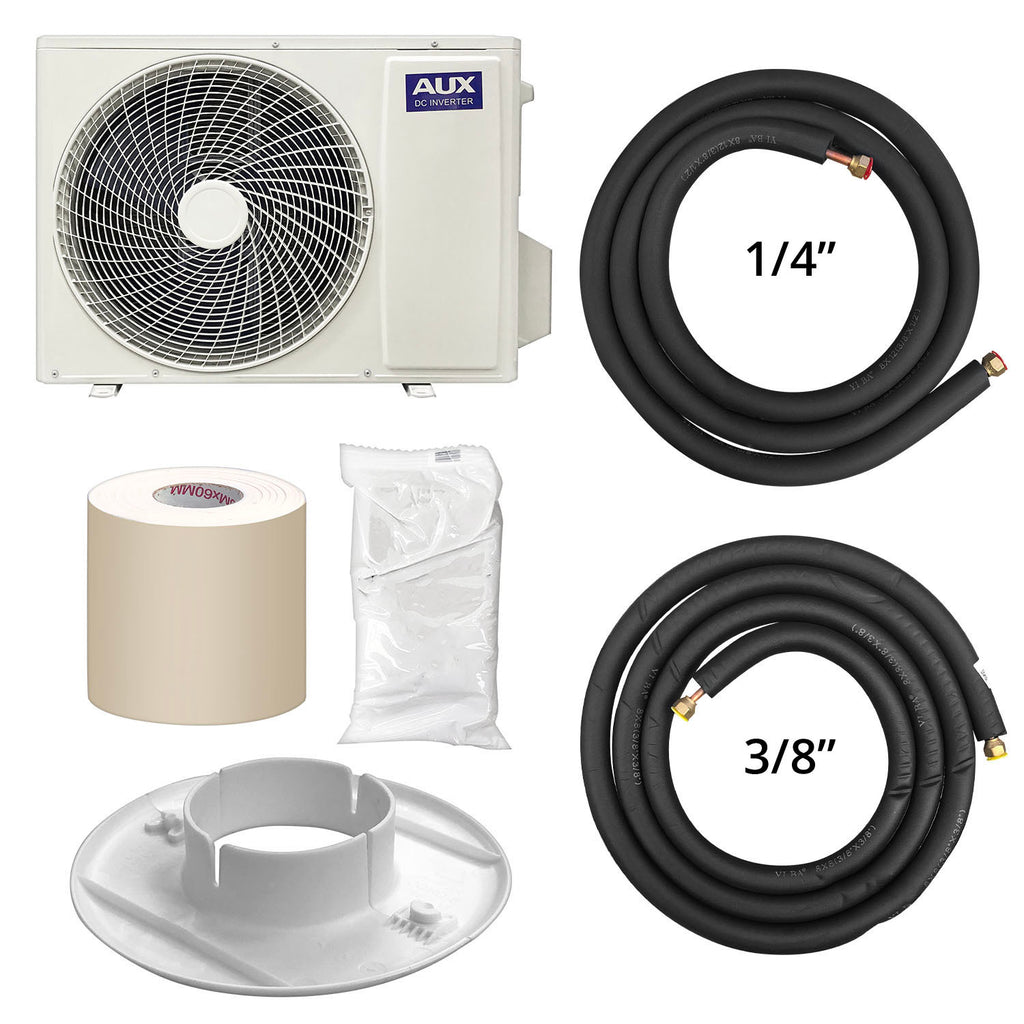

Connect pipe (length): 3m

Stop Valve:

• Liquid valve: 0.25
• Gas valve: 0.375

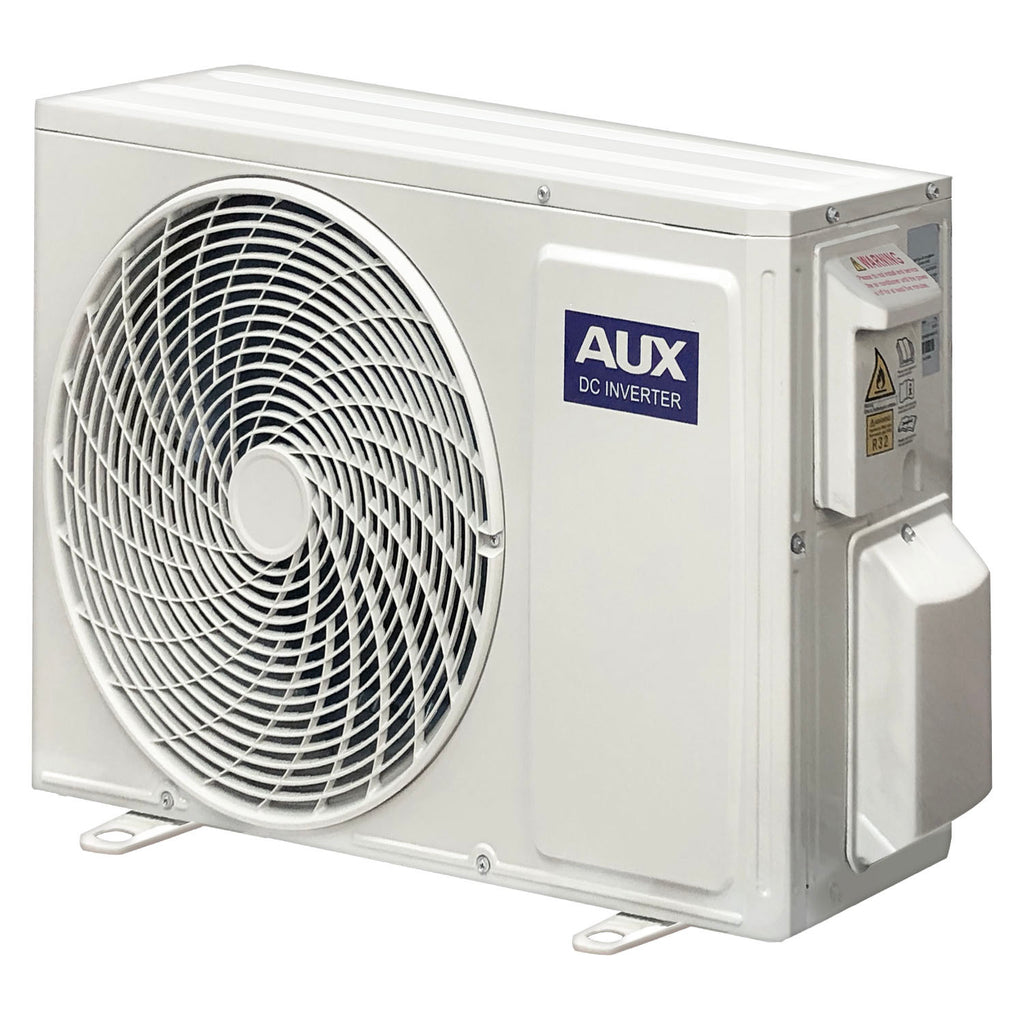

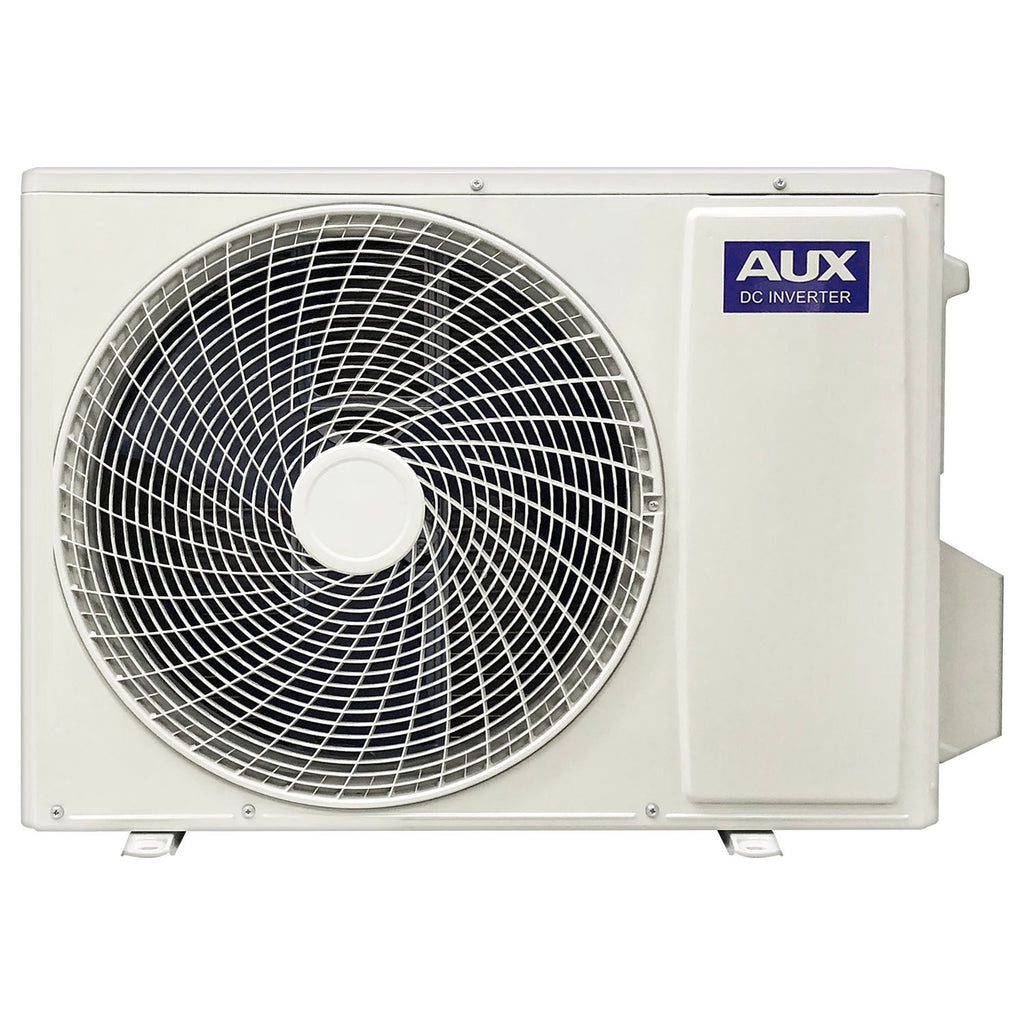

Outdoor Unit:

Outdoor Noise Level: 52 dB(A)

Type: Rotary

Fan:

• Type: Axis flow
• Vane Number: 3
• Blade Material: AS

Motor: D-20-10A

Condenser:

• Row: 1
• Tube Material: screws inside
• Tube Quantity: 11
• Fin Material: hydrophilic foil
• Fin Type: window
• Fin spacing: 1.3mm

Dimension & Weight:

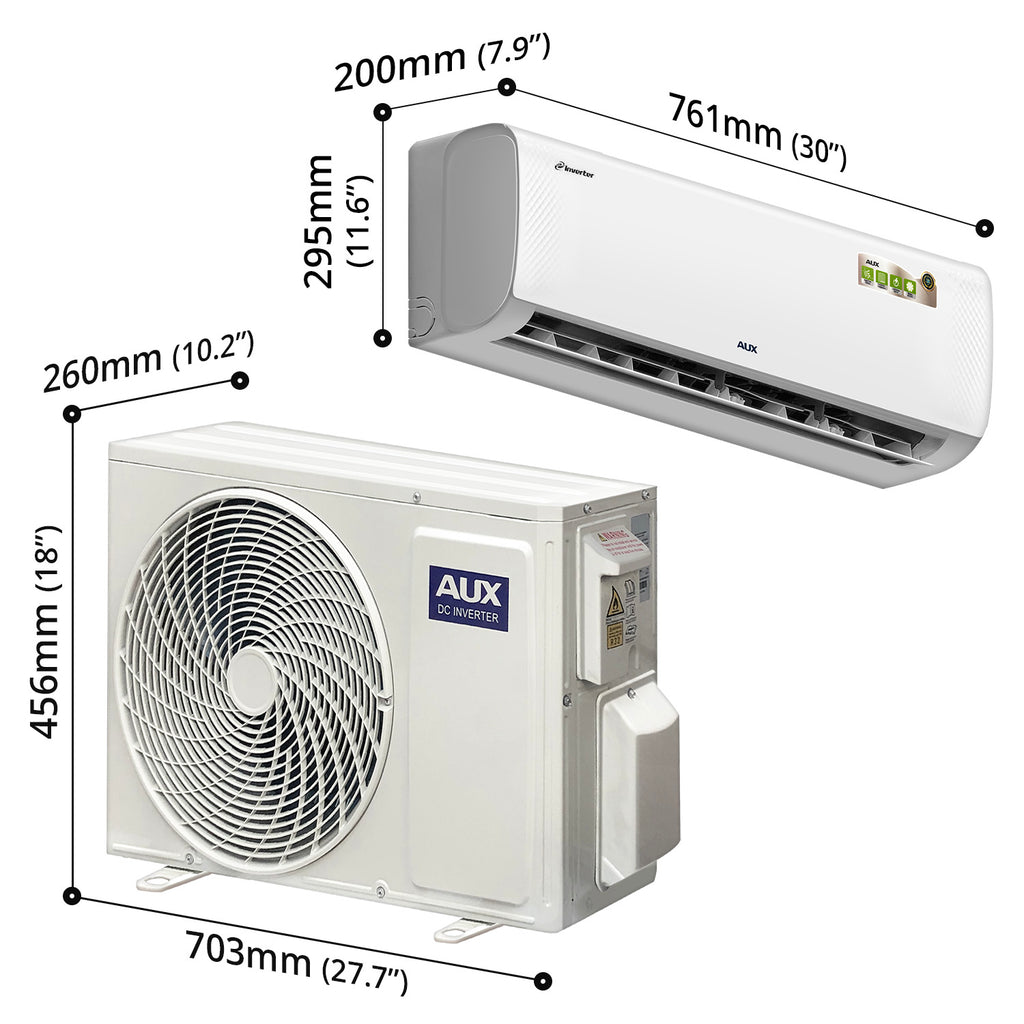

Net dimensions (W x H x D):

• Indoor: 761 x 295 x 200mm
• Outdoor: 703 x 456 x 260mm

Packing dimensions (W x H x D):

• Indoor: 825 x 367 x 277mm
• Outdoor: 760 x 305 x 510mm

Net weight:

• Indoor: 8kg
• Outdoor: 17kg

Gross weight

• Indoor: 11kg
• Outdoor: 20.5kg
