12000 BTU AC (Inverter)

    • Rf6,29900

    Inventory limit exceeded

    SKU: 59258

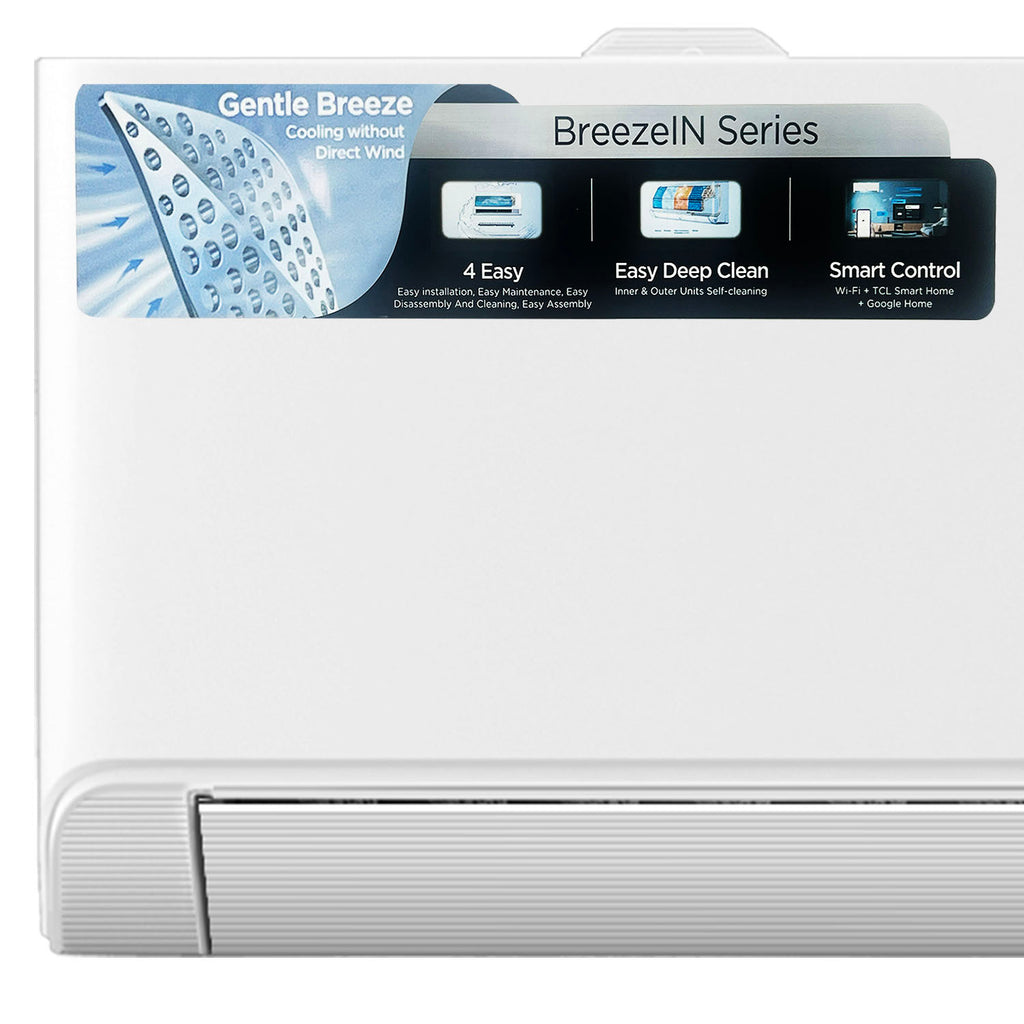

    INVERTER WIFI - BreezeIN
    SMART AC (No Dongle Required)
    Model no: TAC-13CSD
    Brand: TCL
    ALU: 41954
    Size: 12000BTU

    IMPORTANT CUSTOMER INFORMATION ON AC INSTALLATION:

    All Split AC's are sold with the Installation kit (material for basic installation) that contains of 10ft pipe, wire and wall bracket. Installation charges are not included in the AC price.

    Charges apply as follow:

    Basic Installation charges Male: +MVR 1089

    Basic Installation charges Hulhumale: +MVR 1419


    Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

    All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.



    Specification

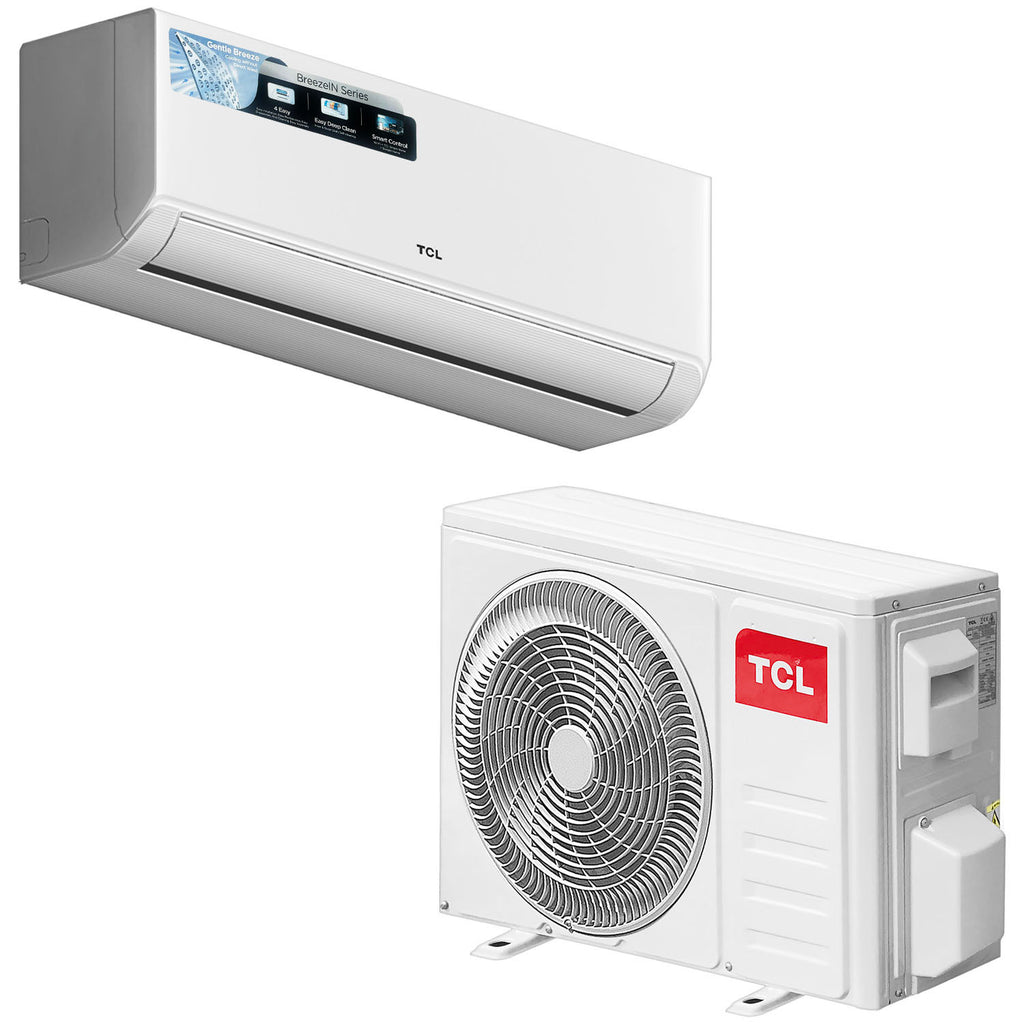

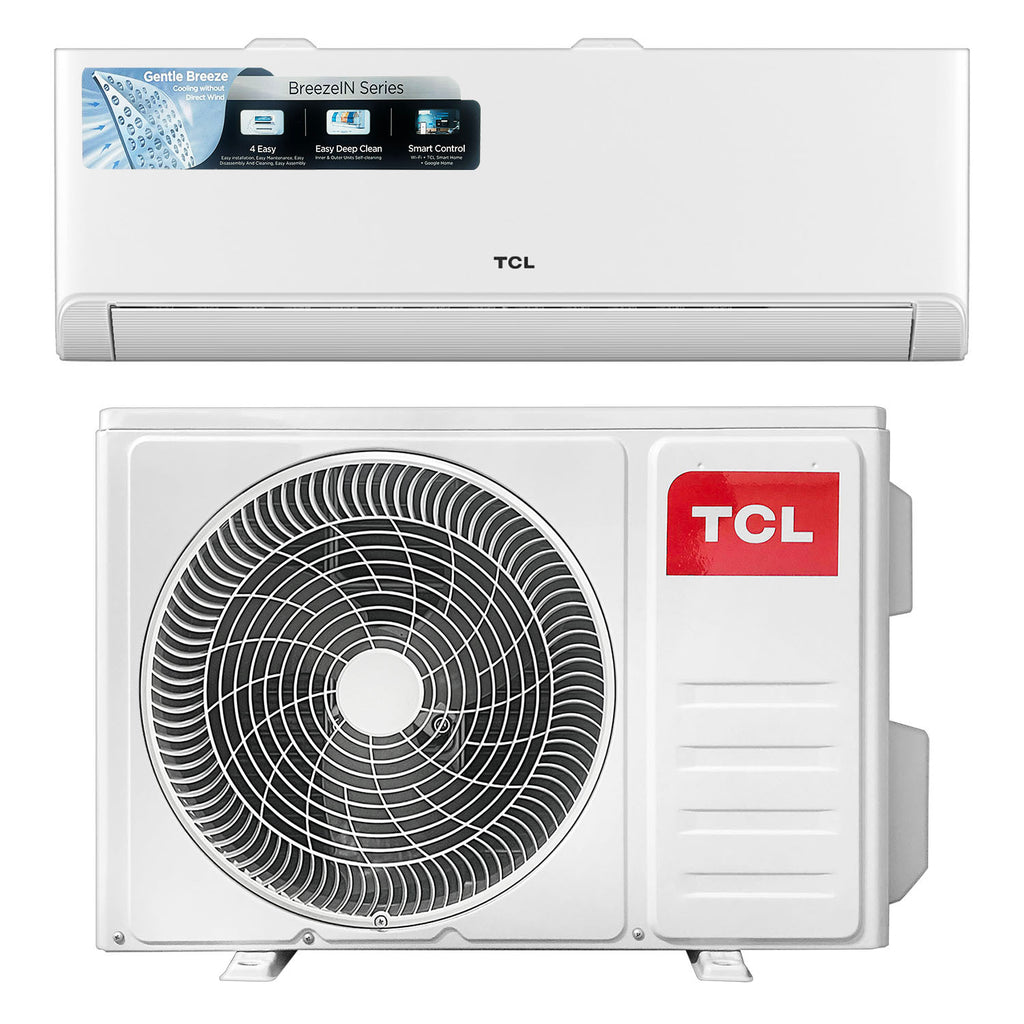

    TCL - Air Conditioner (12000BTU)

    Inverter – BreezeIN Series

    Brand: TCL

    Model: TAC-13CSD

    Capacity: 1200BTU

    Type: Cooling Only

    Control type: Remote & App

    Rated Cooling Capacity (Btu/h): 12500 (3360~13170)

    Rated Cooling Capacity (W): 3665 (985~3860)

    CSPF (Btu/h.w; W/W): 5.421

    Star Rating: 5 Star

    Moisture removal (Liters/h): 1

    Indoor noise level at cooling (dB (A)):

      • High: 44
      • Med: 41
      • Low: 38

    Outdoor noise level (dB (A)): 55

    Warranty: 1 Year Warranty plus 5 Years Compressor Warranty



    Power Supply:

    Power Supply: 220-240V~/50Hz/1P

    Voltage Range: 165 ~ 265V

    Rated current (Cooling): 5.3 (1.5~8.0) V

    Rated input (Cooling): 1160 (260~1700) W

    Max current: 8 A

    Max input: 1700 W



    Fan System:

    Indoor air circulation Cooling (m3/h): 600

    Indoor fan type: Cross Flow

    Outdoor fan type: Propeller Fan



    Additional Specs:

    Refrigerant/Charge: R32/0.45Kg

    Compressor (Type): Rotary

    Connecting Pipe:

      • Gas: Ø9.52 (3/8'')
      • Liquid: Ø6 (1/4'')

    Connecting Wiring (Size x Core number): 4 x 1.0

    Suitable area: 15-23 m2

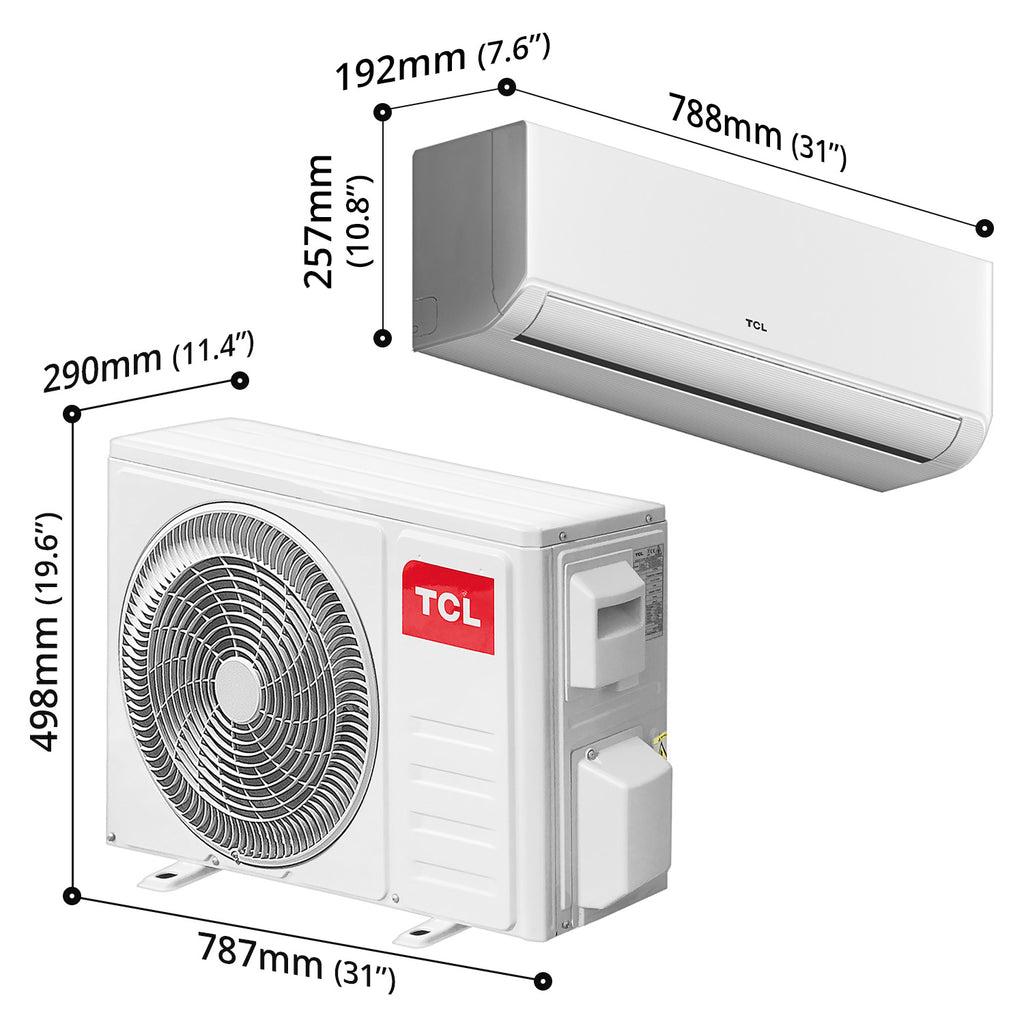

    Dimension & Weight:

    Width x Depth x Height

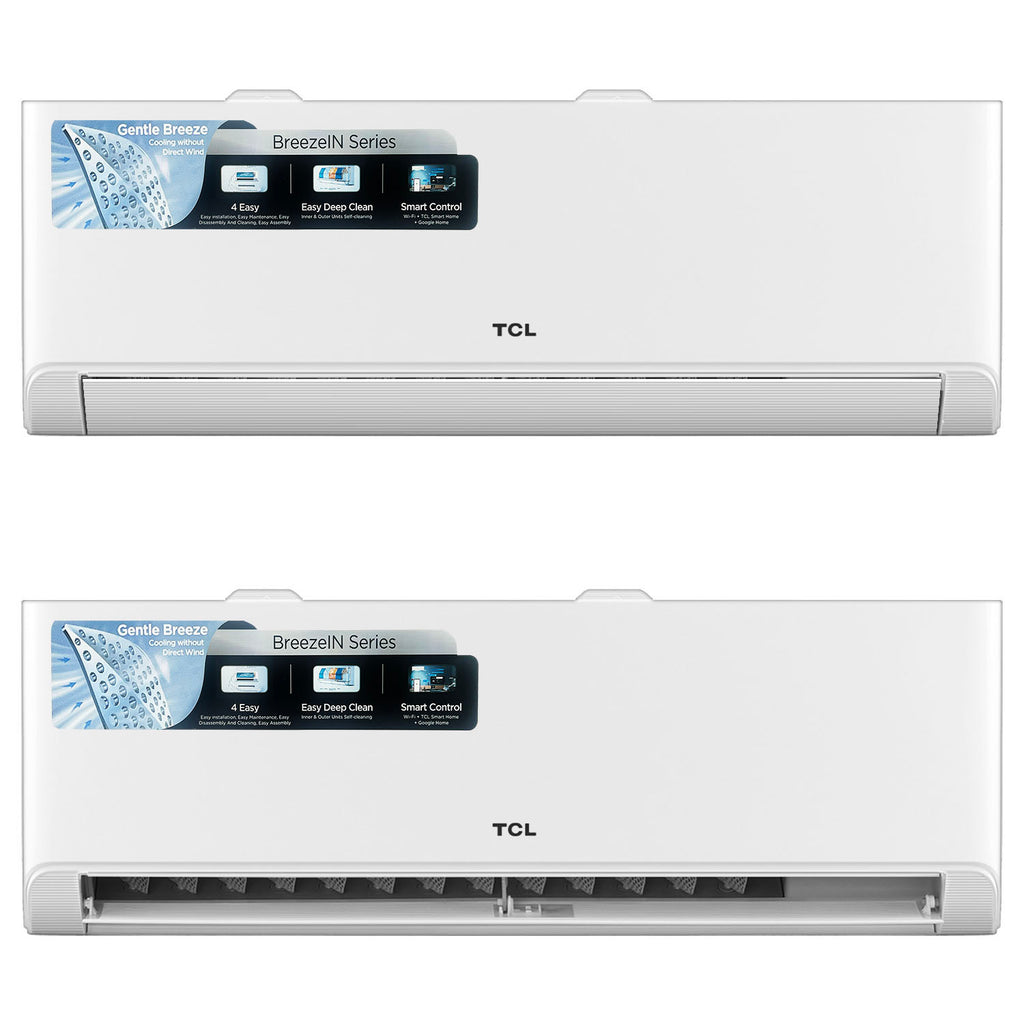

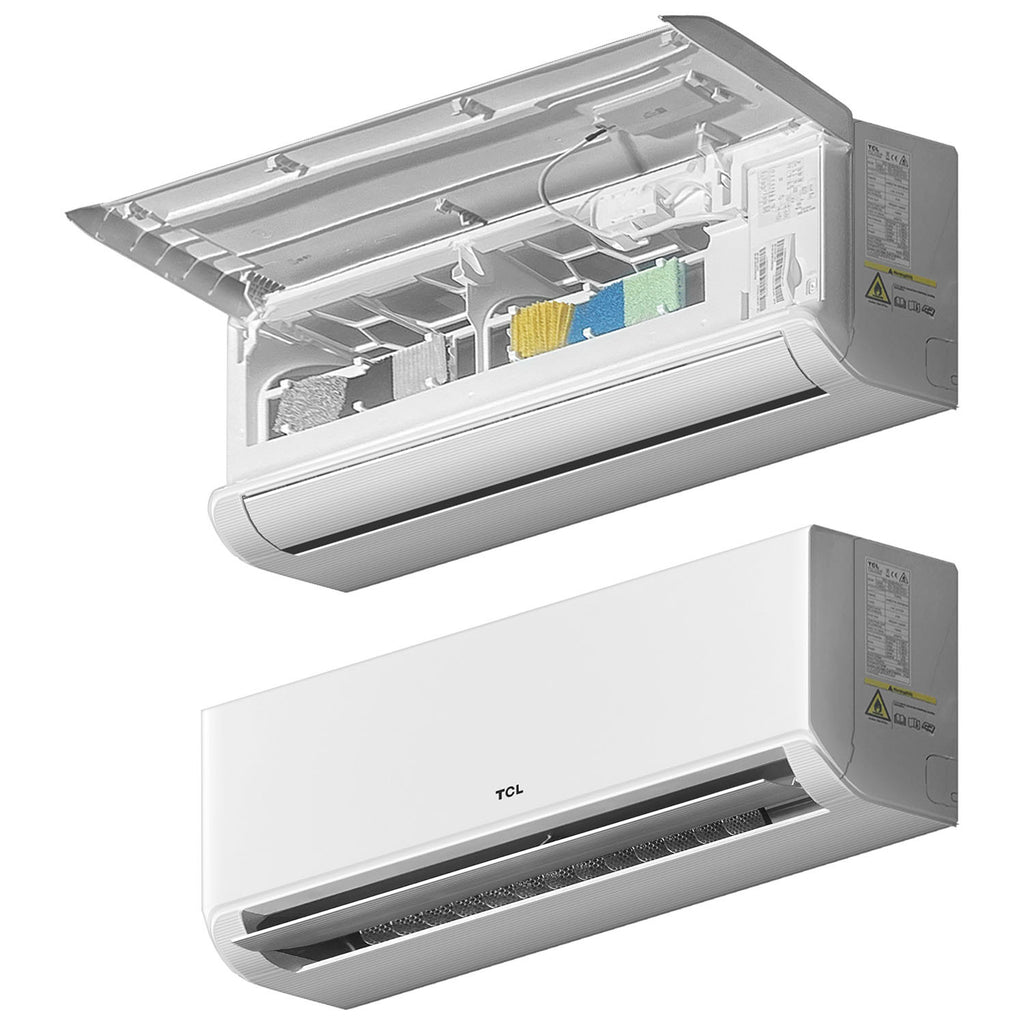

    Indoor Unit:

      • Product Dimension: 788 x 192 x 275mm (31” x 7.6” x 10.8”)
      • Packing Dimension: 850 x 275 x 320mm (33.5” x 10.8” x 12.6”)
      • Net Weight: 8.5kg
      • Gross Weight: 10.5kg

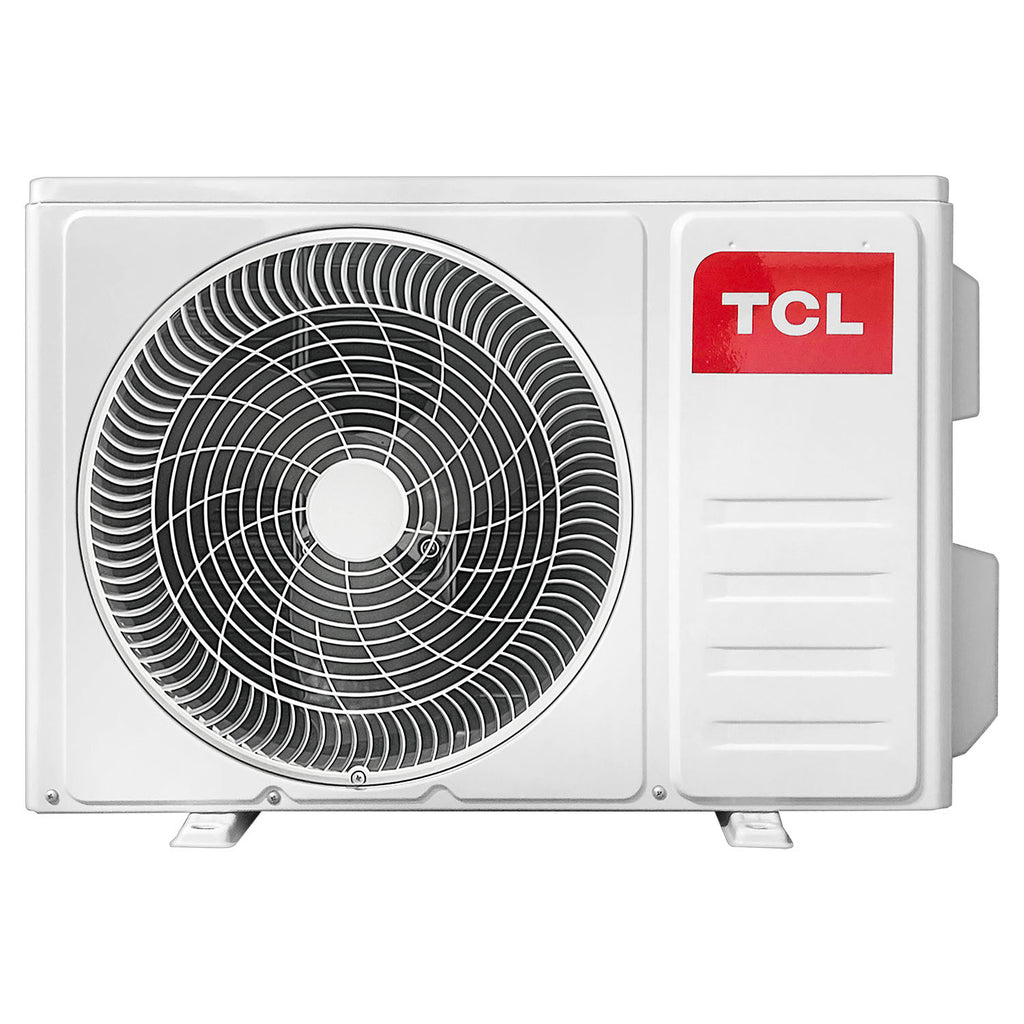

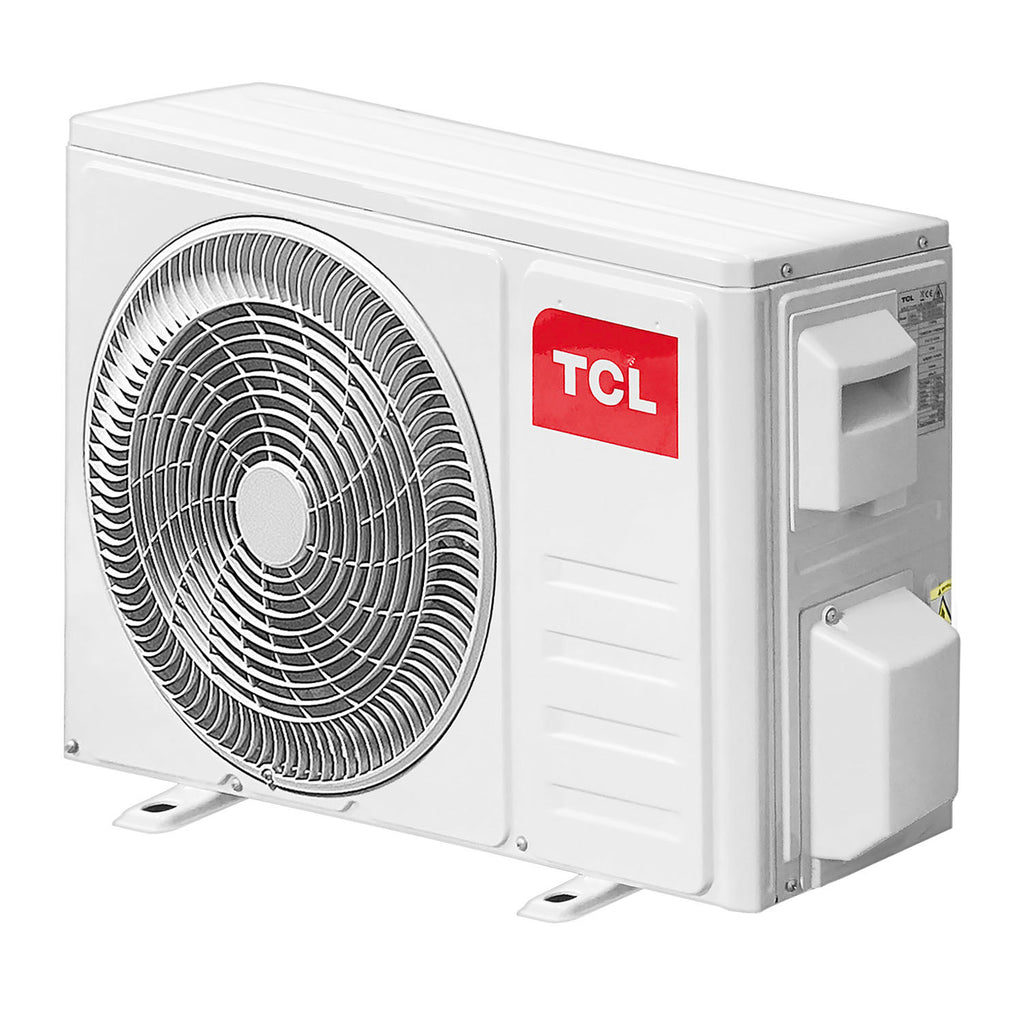

    Outdoor Unit:

      • Product Dimension: 787 x 290 x 498mm (31” x 11.4” x 19.6”)
      • Packing Dimension: 818 x 325 x 520mm (32.2” x 12.8” x 20.5”)
      • Net Weight: 21kg
      • Gross Weight: 24kg

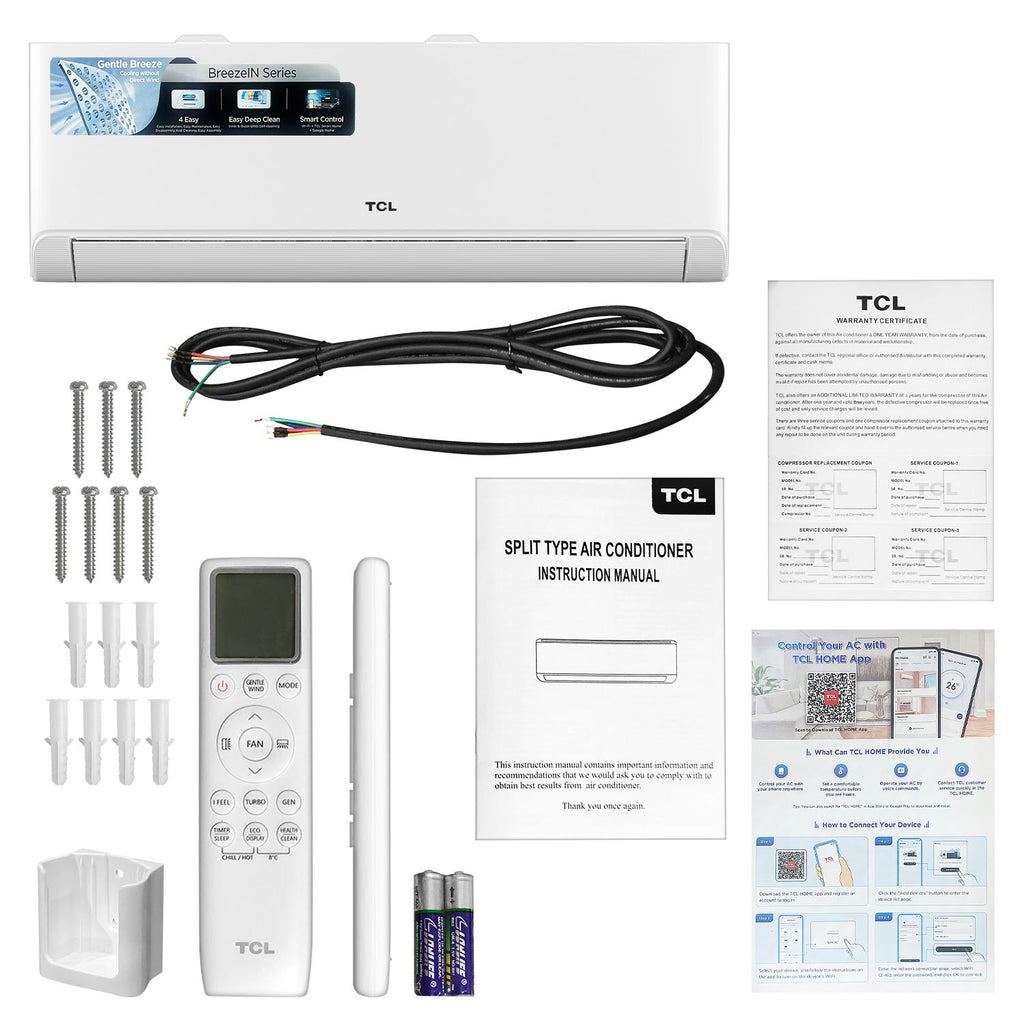

    Packing Contents:

    12k BTU Indoor Unit – x1

      • 12ft. Electric wire – x1

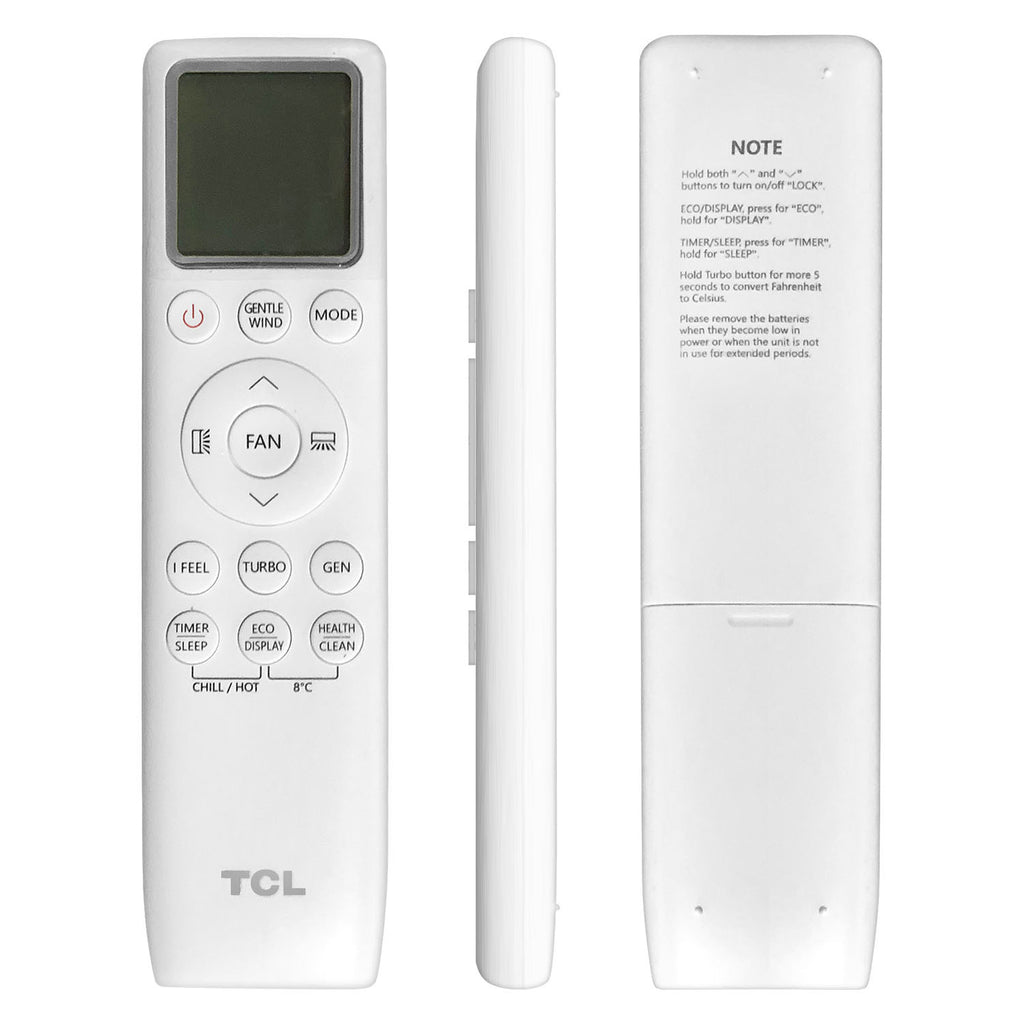

      • Remote Control – x1
      • AAA Battery – x2
      • Wall Mount Remote Holder – x1
      • Screws – x7
      • Wall Plugs – x7
      • App Control Manual – x1
      • Warranty Certificate – x1
      • User Manual – x1

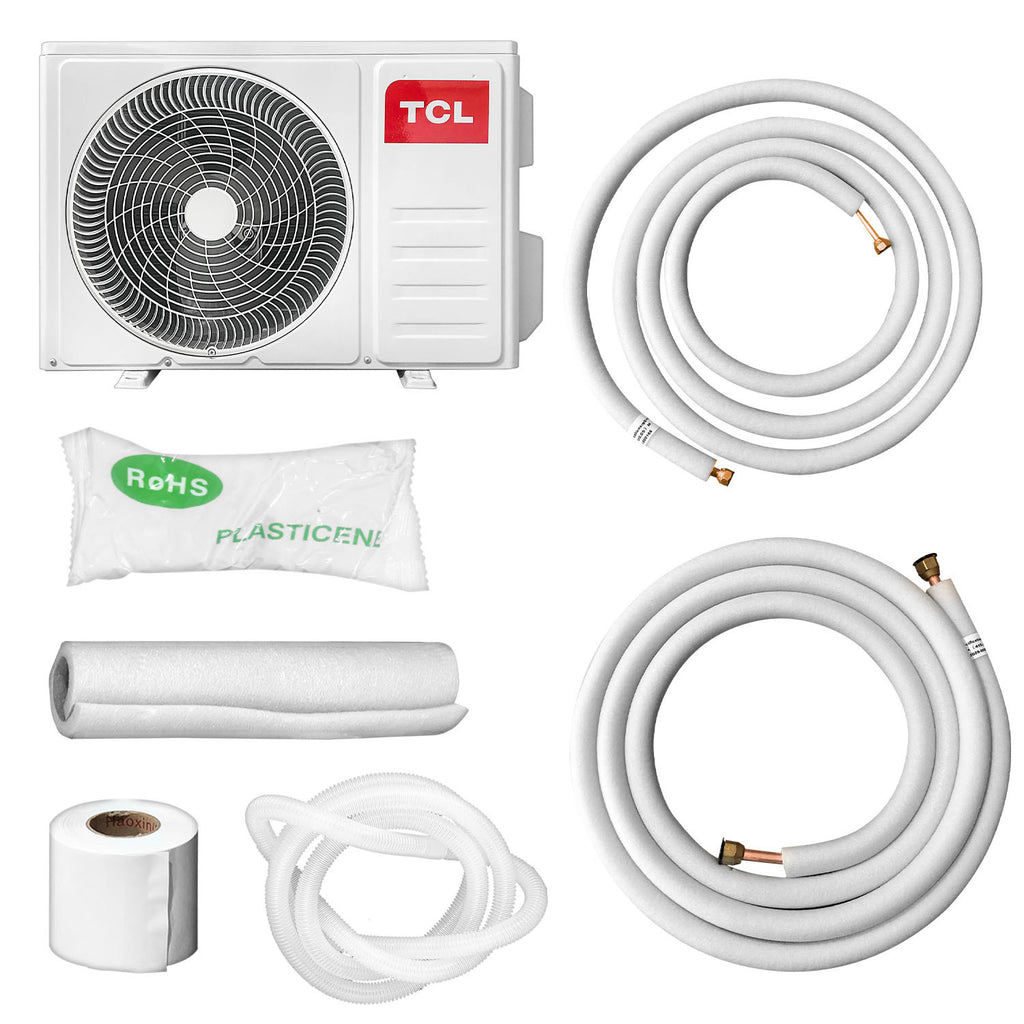

    12k BTU Outdoor Unit – x1

      • 1/4" Copper Tube (13ft.) – x1
      • 3/8” Copper Tube (13ft.) – x1
      • Drainage Hose – x1
      • Wrapping Roll – x1
      • Insulation Sheath – x1
      • Plasticene RoHS – x1



    Click here for User Manual

    Click here for Control App Manual
