Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.



Specification

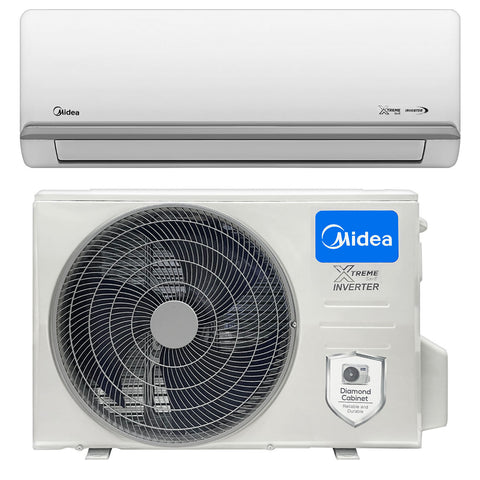

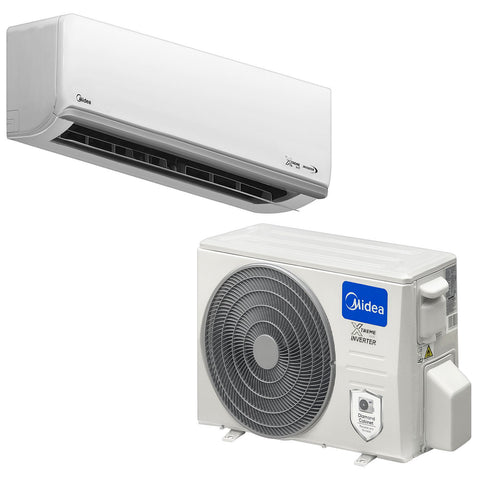

Midea – Air Conditioner

Xtreme Series

Brand: Midea

Model: MSXS-25CRDN8

Capacity: 24000BTU

Type: Cooling Only

Control type: Remote (Wi-Fi Control Optional)

Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz

Cooling:

    • Cooling Capacity (Btu/h): 24000
    • Input (W): 2420W
    • Rated Current (A): 10.5A
    • EER (W/W): 2.91

Max. Input Consumption (W): 3700W

Max. Current (A): 19A

Compressor:

    • Type: Rotary
    • Capacity (W): 7740W
    • Input (W): 2085W
    • Rated current (RLA) (A): 9.45A

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

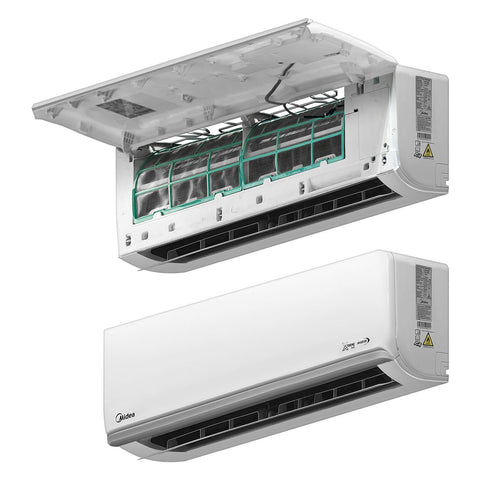

Indoor Unit:

Indoor Fan Motor:

    • Input (W): 58W
    • Capacitor (uF): 0 uF
    • Speed (High/Middle/Low): 1150/1000/850 r/min

Indoor Coil:

    1. Number of rows: 2
    2. Tube pitch (a) x row pitch (b): 21 x 13.37mm
    3. Fin spacing: 1.3mm
    4. Fin type (code): Hydrophilic aluminum
    5. Tube outside dia. and type: Φ7,Inner groove tube
    6. Coil (length x height x width): 820 x 210 x 26.74mm + 820 x 126 x 26.74mm
    7. Number of circuits: 4

Indoor air flow (High/Middle/Low): 1090/770/610 m3/h

Indoor noise level (High/Middle/Low): 46/37/34.5 dB (A)

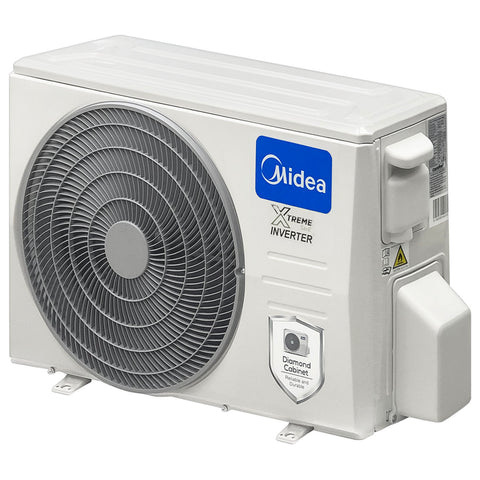

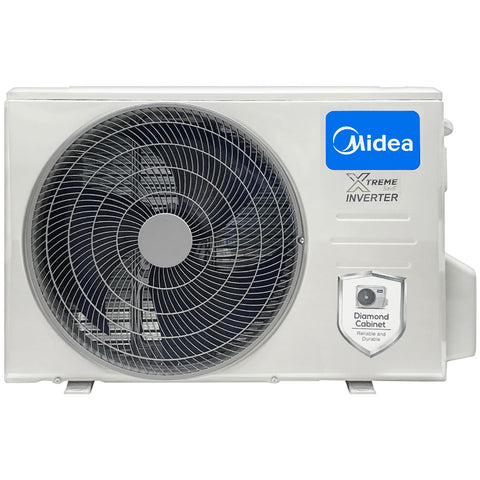

Outdoor Unit:

Outdoor Fan Motor:

    • Input (W): N/A
    • Capacitor (uF): N/A
    • Speed: 830/700/550 r/min

Outdoor Coil:

    1. Number of rows: 1.6
    2. Tube pitch (a) x row pitch (b): 21 x 13.37mm
    3. Fin spacing: 1.3mm
    4. Fin type (code): green anti-corrosion aluminum
    5. Tube outside dia. and type: Φ7,Inner groove tube
    6. Coil (length x height x width): 900 x 44 x 609mm
    7. Number of circuits: 5

Outdoor air flow: 3500 m3/h

Outdoor noise level: 60 dB (A)



Additional Specs:

Refrigerant Type: R32/1.45 kg

Design Pressure: 4.3/1.7 MPa

Refrigerant Piping:

    • Liquid Side / Gas Side: 9.52mm (3/8in) / 15.9mm (5/8in)
    • Max. Refrigerant Pipe Length: 30m
    • Max. Difference in Level: 20m

Connection Wiring: 3.5m

Plug Type: //no-plug

Thermostat Type: Remote Control

Operation Temperature: 17 ~ 30 °C

Room Temperature:

    • Indoor (Cooling): 17 ~ 32 °C
    • Outdoor (Cooling): 0 ~ 50 °C

Application Area (Cooling Standard): 32 ~ 47m2

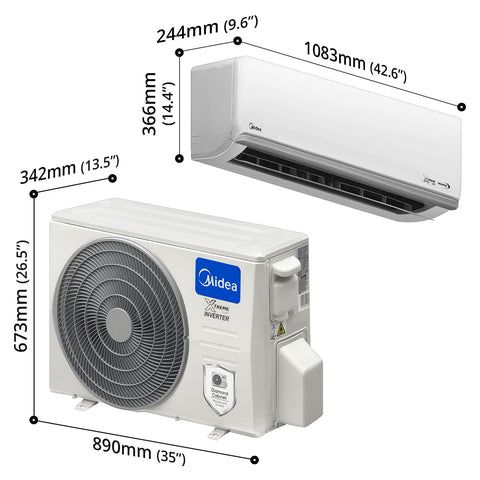

Dimension & Weight:

Width x Depth x Height

Indoor Unit:

    • Product Dimension: 1083 x 244 x 366mm (42.6” x 9.6” x 14.4”)
    • Packing Dimension: 1155 x 415 x 315mm (45.5” x 16.3” x 12.4”)
    • Net Weight: 13.6kg
    • Gross Weight: 17.3kg

Outdoor Unit:

    • Product Dimension: 890 x 342 x 673mm (35” x 13.5” x 26.5”)
    • Packing Dimension: 995 x 398 x 740mm (39.2” x 15.7” x 29.1”)
    • Net Weight: 43.9kg
    • Gross Weight: 46.9kg

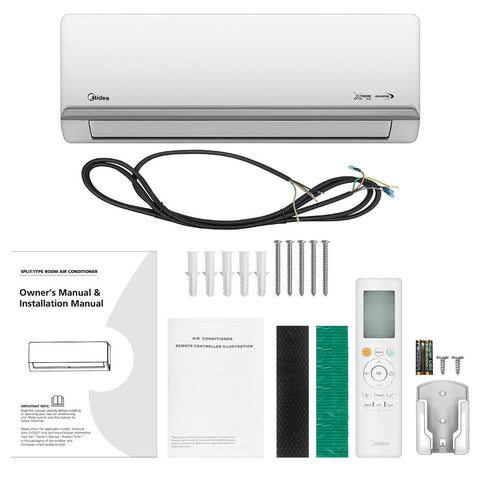

Packing Contents:

24k BTU Indoor Unit – x1

    • Electric Wire – x1

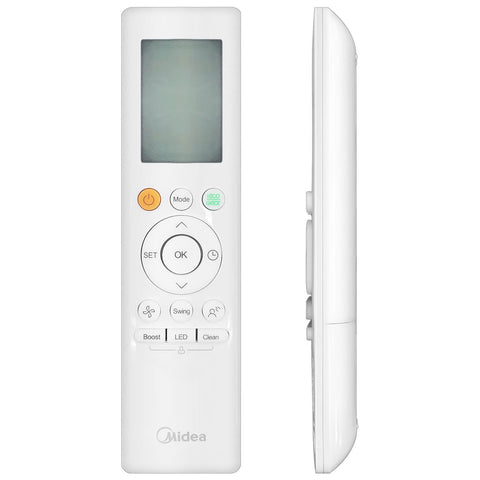

    • Remote Control – x1
    • AA Battery – x2
    • Remote Holder (Wall-Mount) with 2 Screws – x1
    • Screws – x5
    • Wall Plugs – x5
    • Small Filter – x2
    • Remote Controller User Manual – x1
    • User Manual – x1

24k BTU Outdoor Unit – x1

    • 1/2" Insulated Copper Tube – x1
    • 1/4” Insulated Copper Tube – x1
    • Sealing Clay – x1
    • Wall Sleeve – x1
    • Wall Hole Cover – x1
    • Wrapping Roll – x1
