Specification

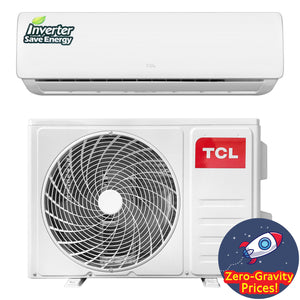

TCL - Air Conditioner (24000BTU)

Inverter

Brand: TCL

Model: TAC-24CSD

Capacity: 24000BTU

Type: Cooling Only

Control type: Remote

Rated Cooling Capacity (Btu/h): 24000 (5118 ~ 24520)

Rated Cooling Capacity (W): 7033

CSPF (Btu/h.w; W/W): 4.52

Moisture removal (Liters/h): 22

Indoor noise level at cooling (dB (A)):

• High: 51
• Med: 47
• Low: 43

Outdoor noise level (dB (A)): 55

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

Power Supply:

Voltage Range: 155 ~ 265V

Rated current (Cooling): 10.5 (2.5~13.5) A

Rated input (Cooling): 2250 (500 ~ 2900) W

Max current: 13.5 A

Max input: 2900 W

Fan System:

Indoor air circulation Cooling (m3/h): 1000

Indoor fan type: Cross Flow

Indoor fan speed H/M/L:

• Cooling (rpm): 1150/1050/950/850/800
• Dry (rpm): 850
• Sleep (rpm): 850

Indoor fan motor output: 44 W

Outdoor fan type: Propeller Fan

Outdoor fan speed: 880rpm

Outdoor fan motor output: 45W

Others

Refrigerant/Charge (Gram): R32/730

Compressor:

• Type: Rotary

Evaporator: 3-bend

Indoor coil:

1. Number of rows: 2
2. Tube pitch (a)x row pitch (b): 21 x 12.7mm
3. Fin spacing: 1.4mm
4. Fin type (code): Hydrophilic
5. Tube outside dia.and type: Ø7mm inner groove tube
6. Coil (length x height x width): 797 x 357 x 25.4mm
7. Number of circuits: 4

Condenser: double-arranged

Connecting Pipe:

• Gas: 1/2''
• Liquid: 1/4''

Connecting Wiring (Size x Core number): 4 x 2.5

Dimension & Weight:

Width x Depth x Height

Suitable area: 30-50 m²

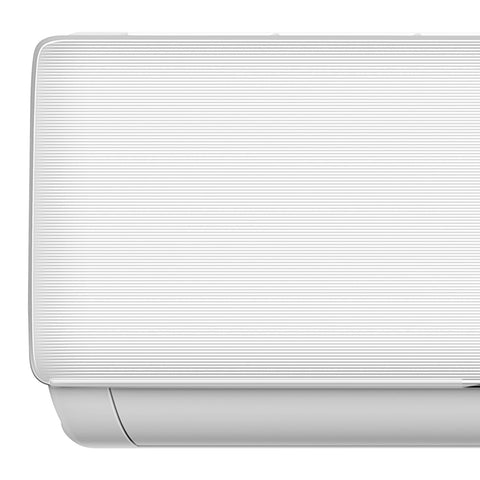

Indoor Unit:

• Product Dimension: 1010 x 220 x 315mm (39.8” x 8.7” x 12.4”)
• Packing Dimension: 1094 x 300 x 386mm (43.1” x 11.8” x 15.2”)
• Net Weight: 13kg
• Gross Weight: 16kg

Outdoor Unit:

• Product Dimension: 780 x 290 x 605mm (30.8” x 11.4” x 23.8”)
• Packing Dimension: 890 x 385 x 628mm (35” x 15.2” x 24.7”)
• Net Weight: 32kg
• Gross Weight: 37kg

Packing Contents:

24k BTU Indoor Unit – x1

• 12ft. Electric wire – x1
• Remote Control – x1
• AAA Battery – x2
• Wall Mount Remote Holder – x1
• Screws with Plugs – x8
• Warranty Certificate – x1
• User Manual – x1

24k BTU Outdoor Unit – x1

• 1/4" Copper Tube (13ft.) – x1
• 1/2” Copper Tube (13ft.) – x1
• Drainage Hose – x1
• Wrapping Tape – x1
• Insulation Sheath – x1
• Plasticene RoHS – x1

Click here for User Manual
