Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.

Specification

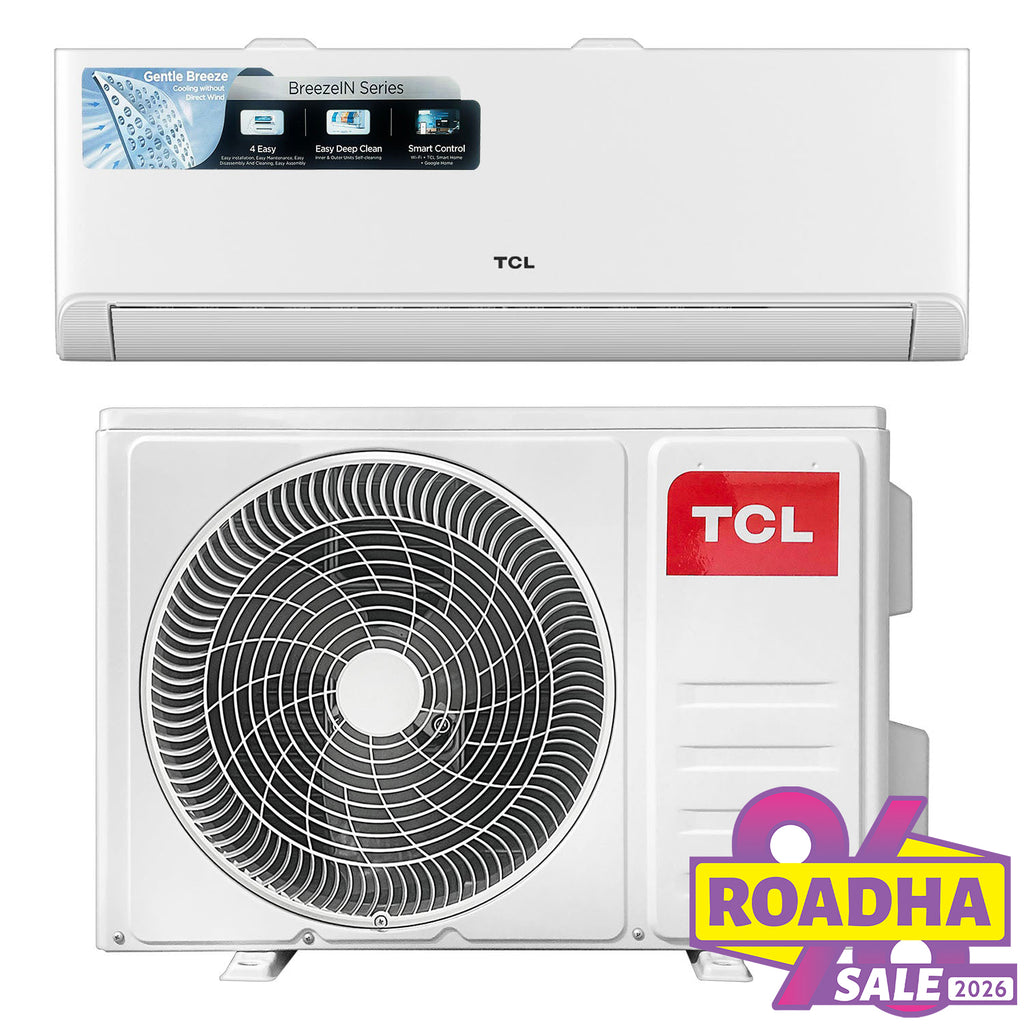

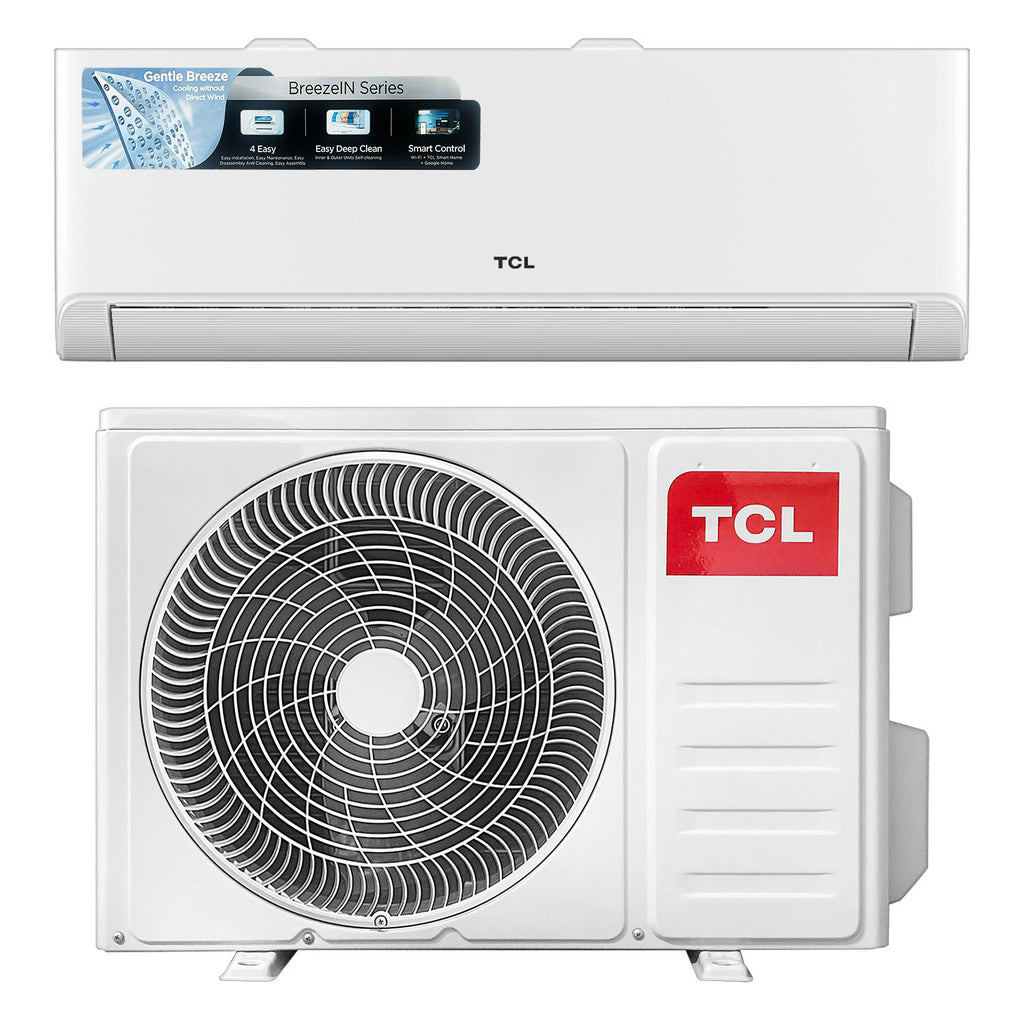

TCL - Air Conditioner (18000BTU)

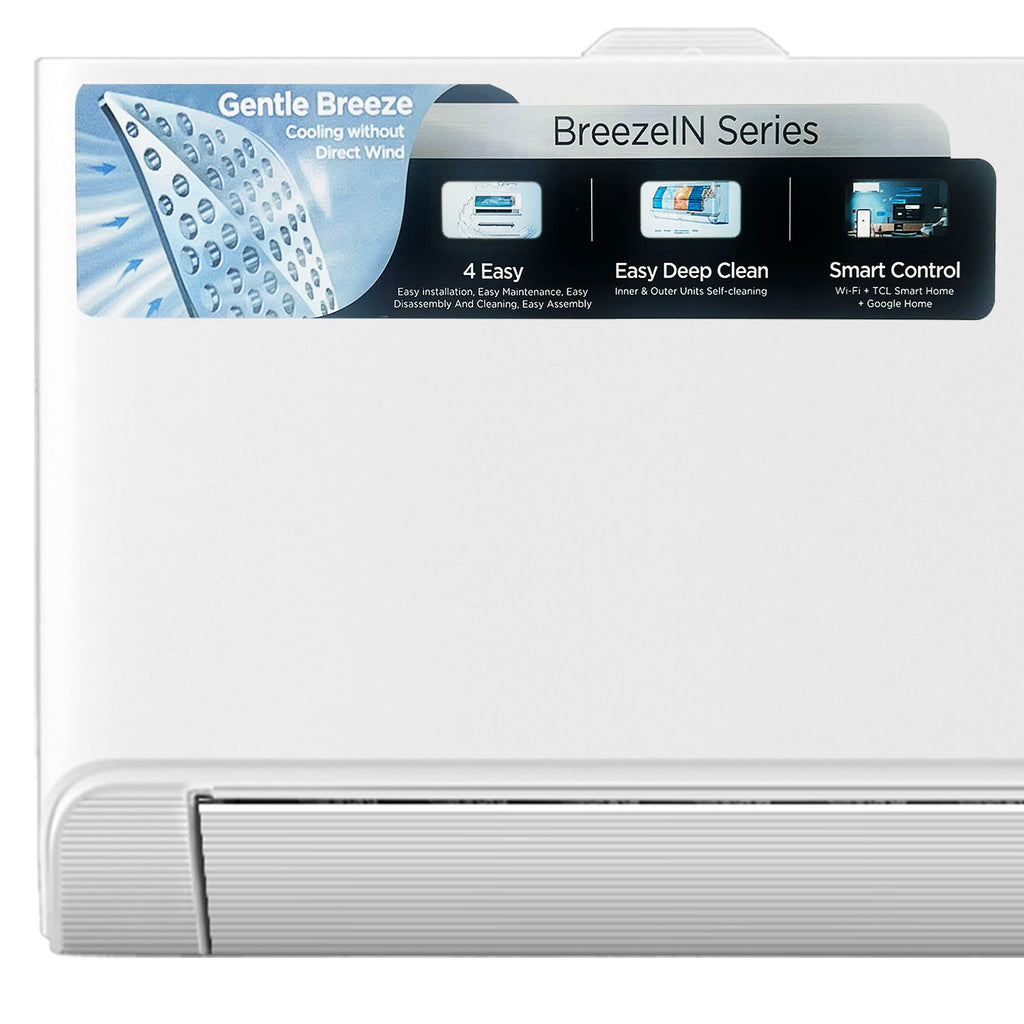

Inverter – BreezeIN Series

Brand: TCL

Model: TAC-19CSD

Capacity: 18000BTU

Type: Cooling Only

Control type: Remote & App

Rated Cooling Capacity (Btu/h): 18000 (3412~18766)

Rated Cooling Capacity (W): 5380 (1000~5500)

CSPF (Btu/h.w; W/W): 5.469

Star Rating: 5 Star

Moisture removal (Liters/h): 1.5

Indoor noise level at cooling (dB (A)):

• High: 50
• Med: 47
• Low: 44

Outdoor noise level (dB (A)): 56

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

Power Supply:

Power Supply: 220-240V~/50Hz/1-Phase

Voltage Range: 165 ~ 265V

Rated current (Cooling): 8.5 (1.6~12) V

Rated input (Cooling): 1900 (300~2100) W

Max current: 12 A

Max input: 2100 W

Fan System:

Indoor air circulation Cooling (m3/h): 850

Indoor fan type: Cross Flow

Outdoor fan type: Propeller Fan

Additional Specs:

Refrigerant/Charge: R32/0.5Kg

Compressor (Type): Rotary

Connecting Pipe:

• Gas: Ø12 (1/2'')
• Liquid: Ø6 (1/4'')

Connecting Wiring (Size x Core number): 4 x 1.5

Suitable area: 20-30 m²

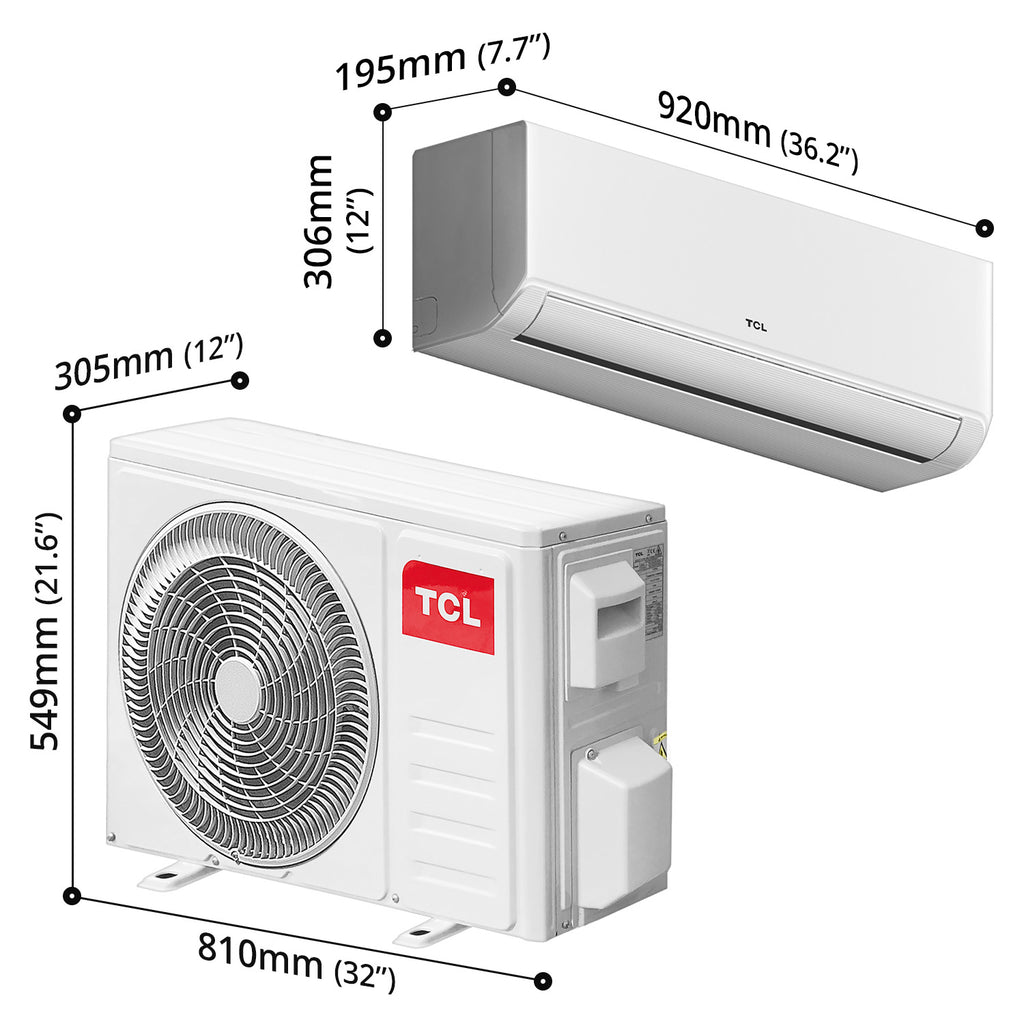

Dimension & Weight:

Width x Depth x Height

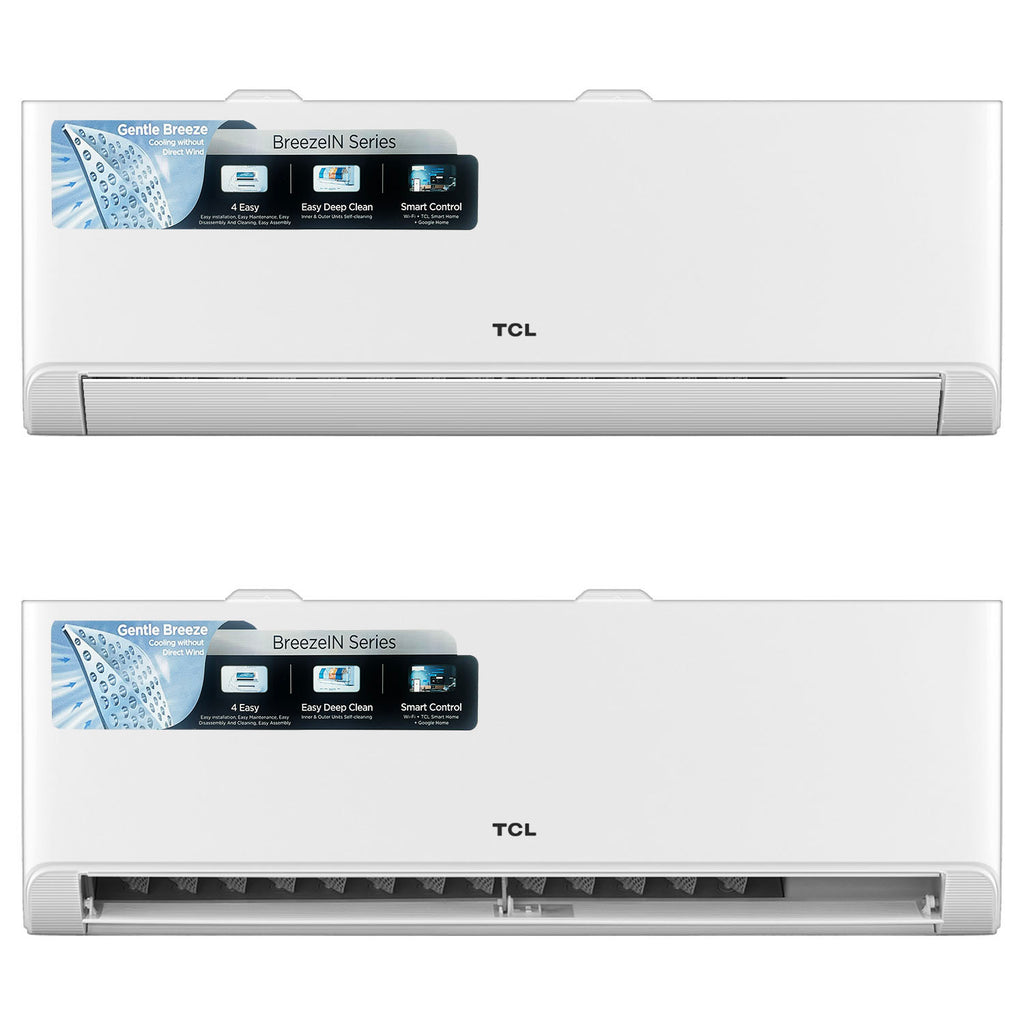

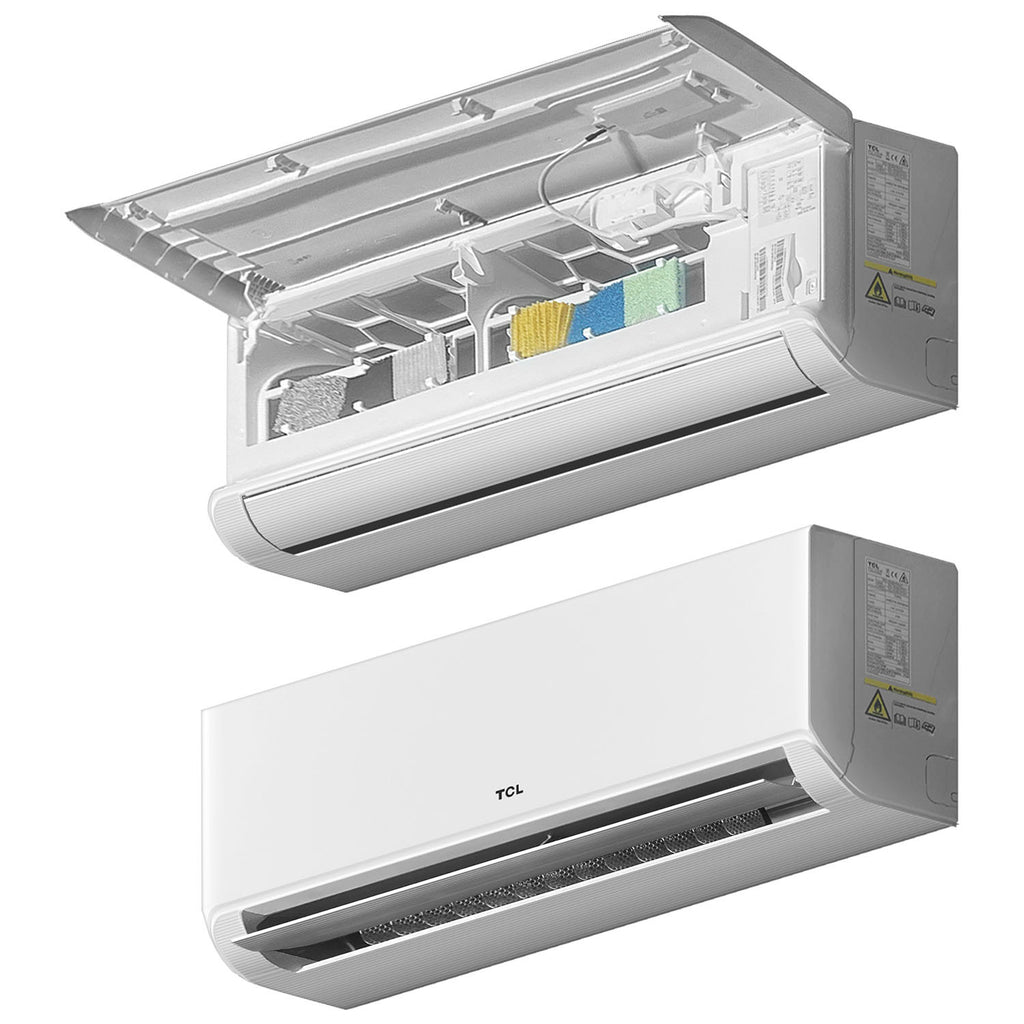

Indoor Unit:

• Product Dimension: 920 x 195 x 306mm (36.2” x 7.7” x 12”)
• Packing Dimension: 990 x 265 x 380mm (39” x 10.4” x 15”)
• Net Weight: 9kg
• Gross Weight: 11kg

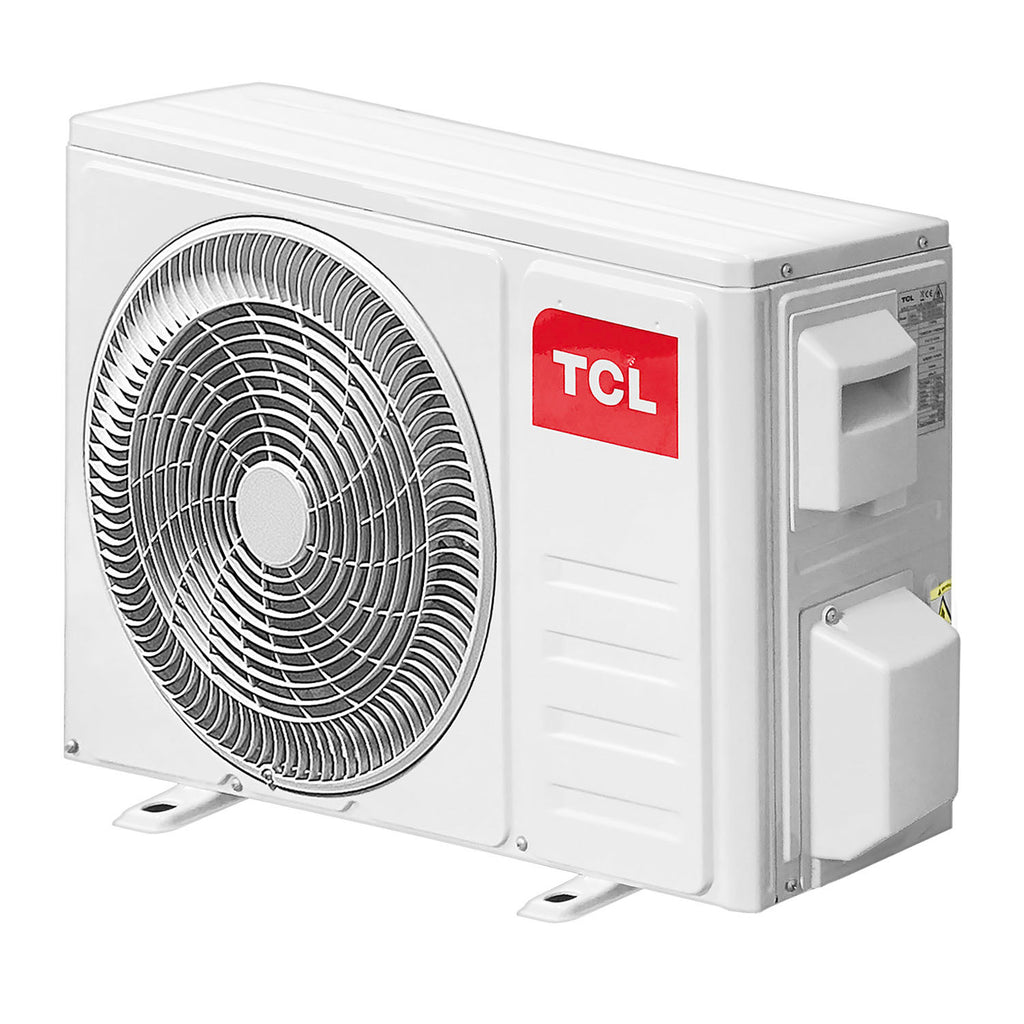

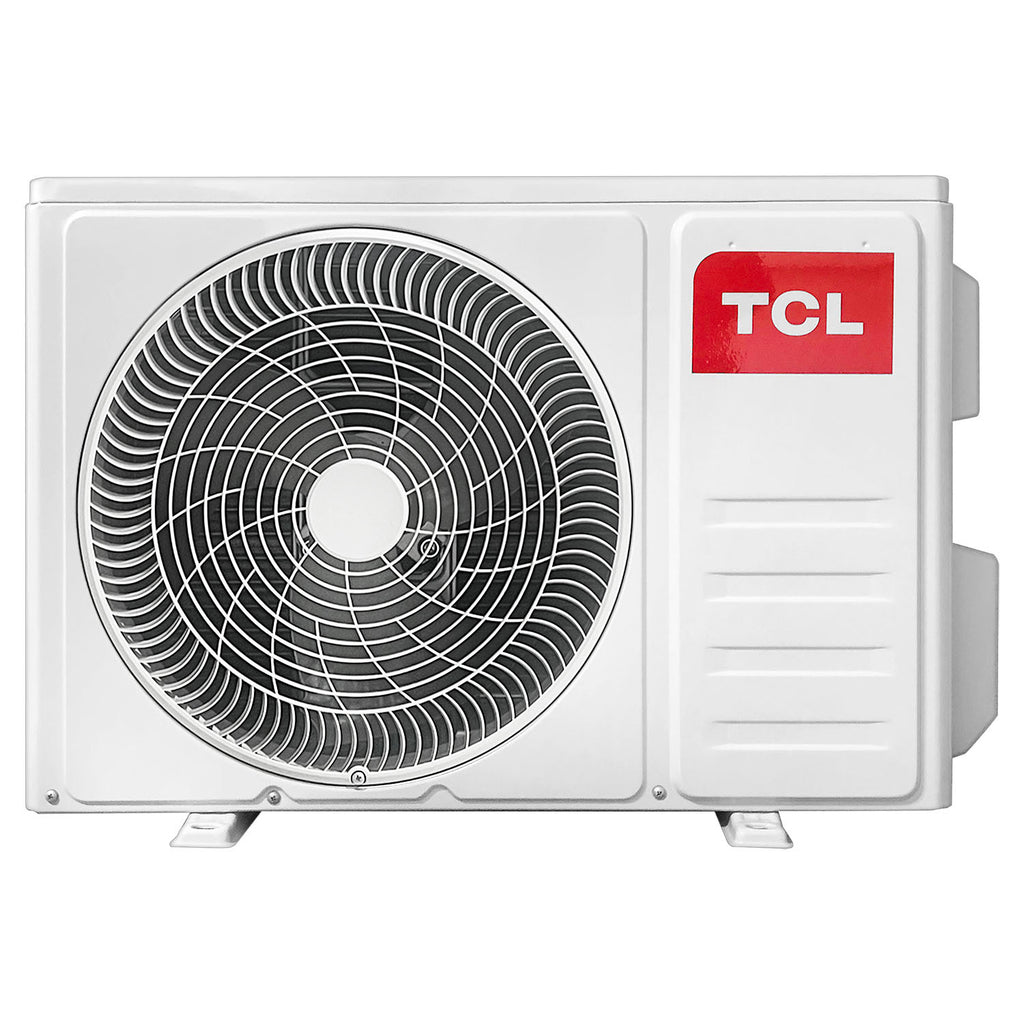

Outdoor Unit:

• Product Dimension: 810 x 305 x 549mm (32” x 12” x 21.6”)
• Packing Dimension: 835 x 340 x 585mm (32.9” x 13.4” x 23”)
• Net Weight: 23kg
• Gross Weight: 26kg

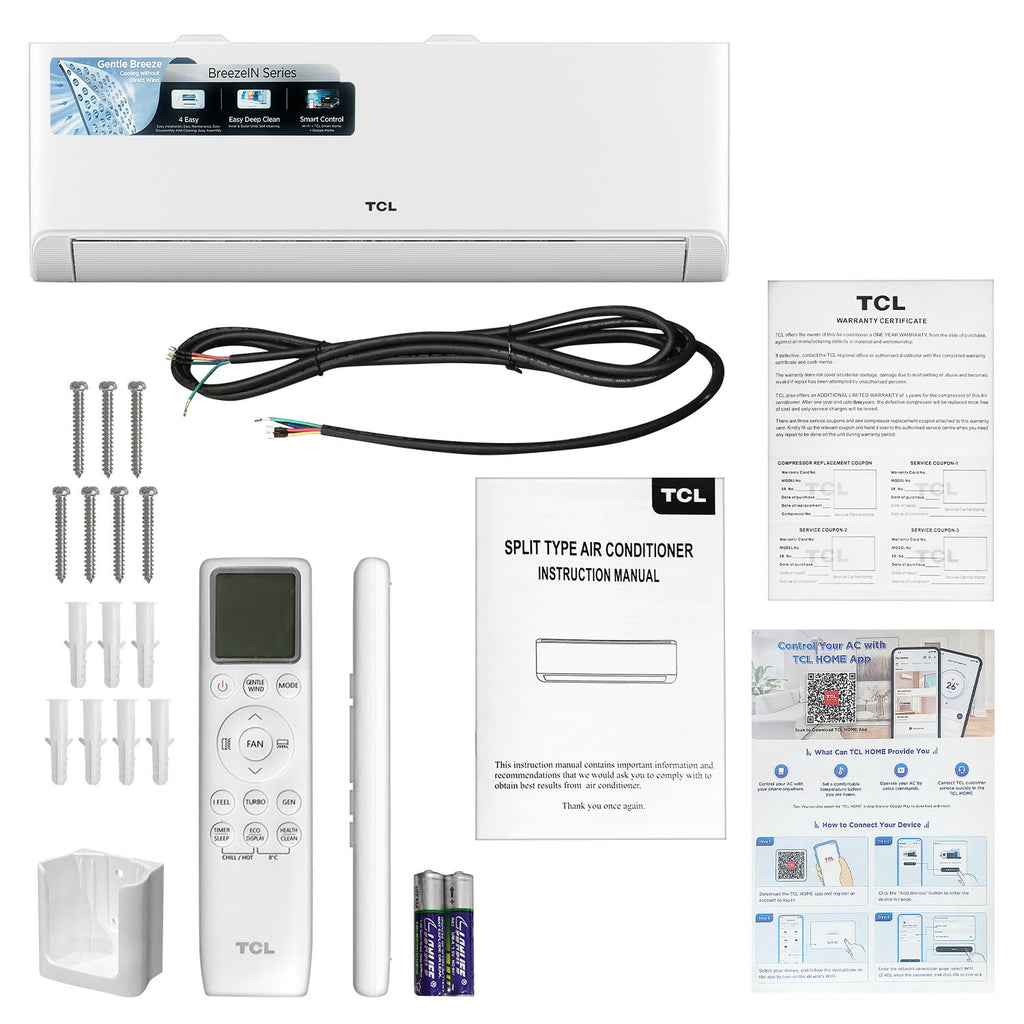

Packing Contents:

18k BTU Indoor Unit – x1

• 12ft. Electric wire – x1
• Remote Control – x1
• AAA Battery – x2
• Wall Mount Remote Holder – x1
• Screws – x7
• Wall Plugs – x7
• App Control Manual – x1
• Warranty Certificate – x1
• User Manual – x1

18k BTU Outdoor Unit – x1

• 1/4" Copper Tube (13ft.) – x1
• 1/2” Copper Tube (13ft.) – x1
• Drainage Hose – x1
• Wrapping Roll – x1
• Insulation Sheath – x1
• Plasticene RoHS – x1
