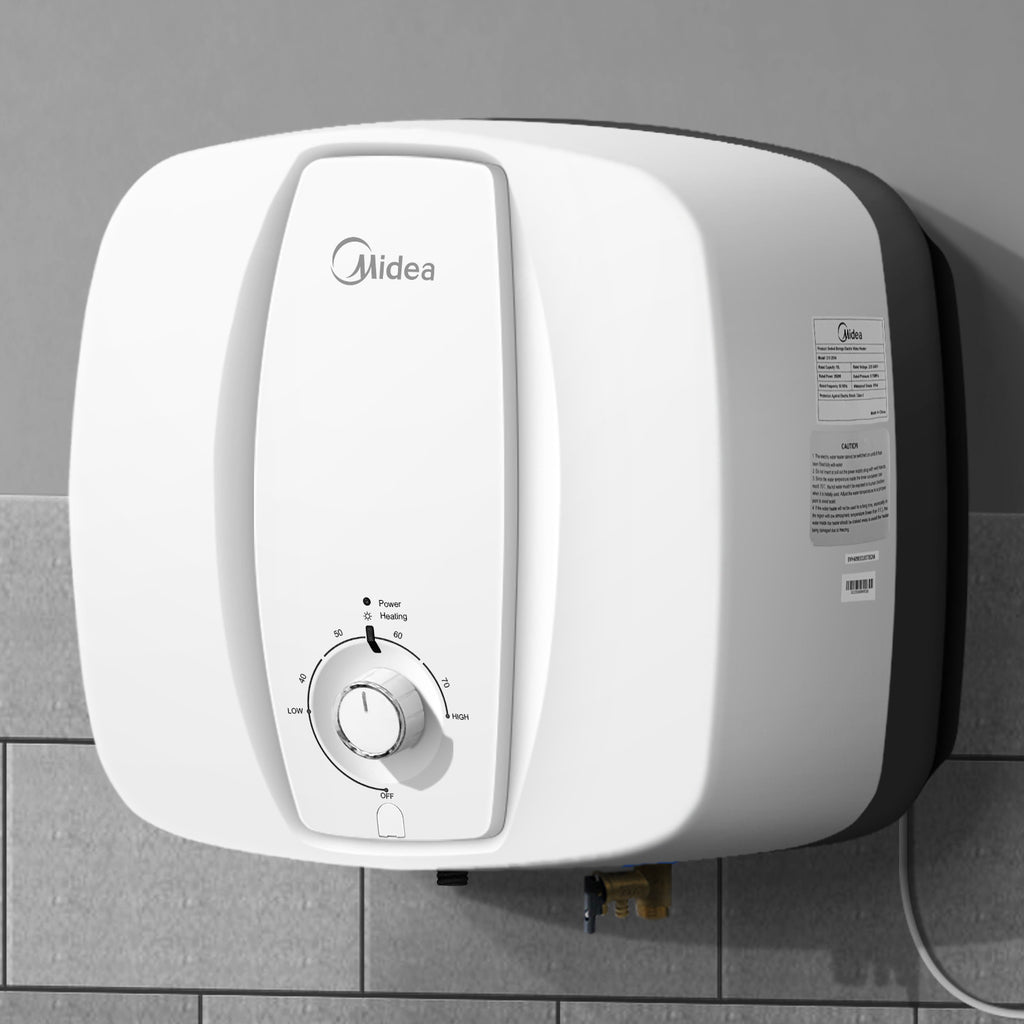

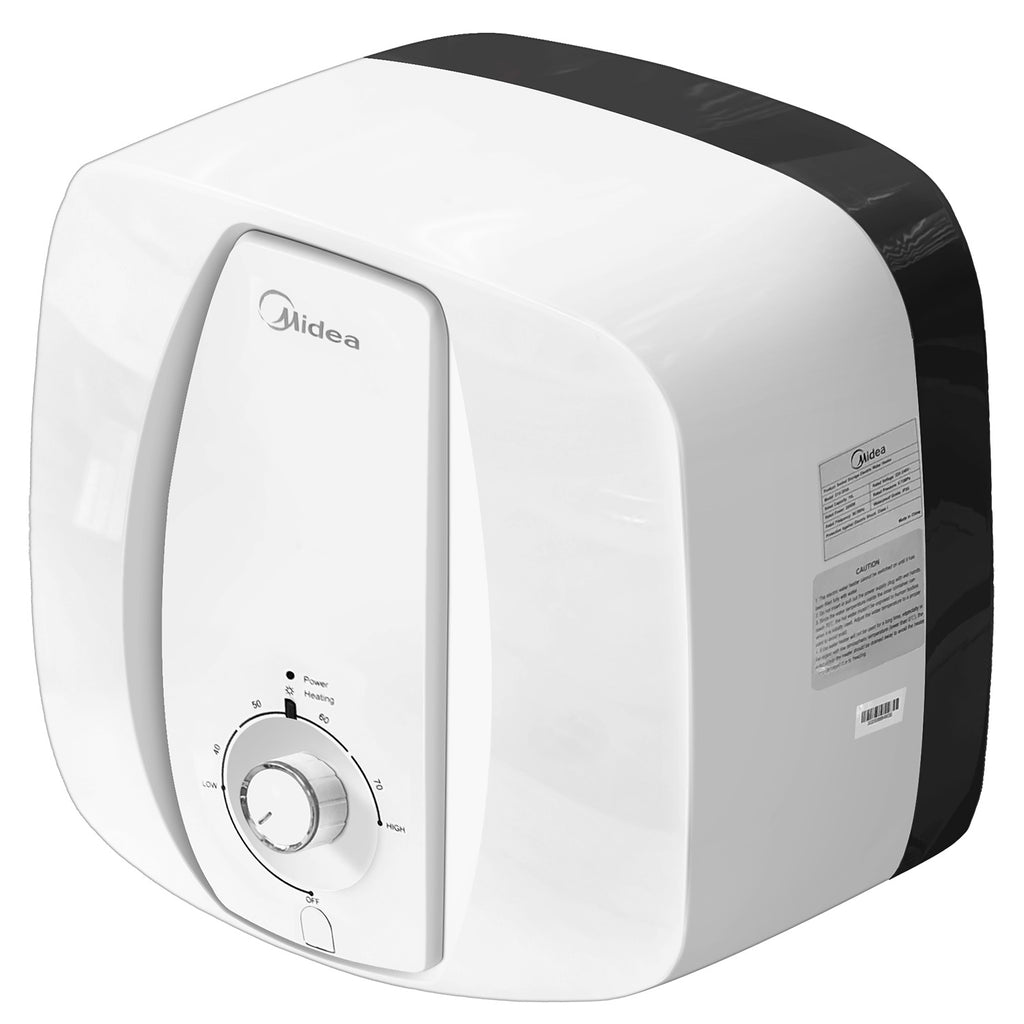

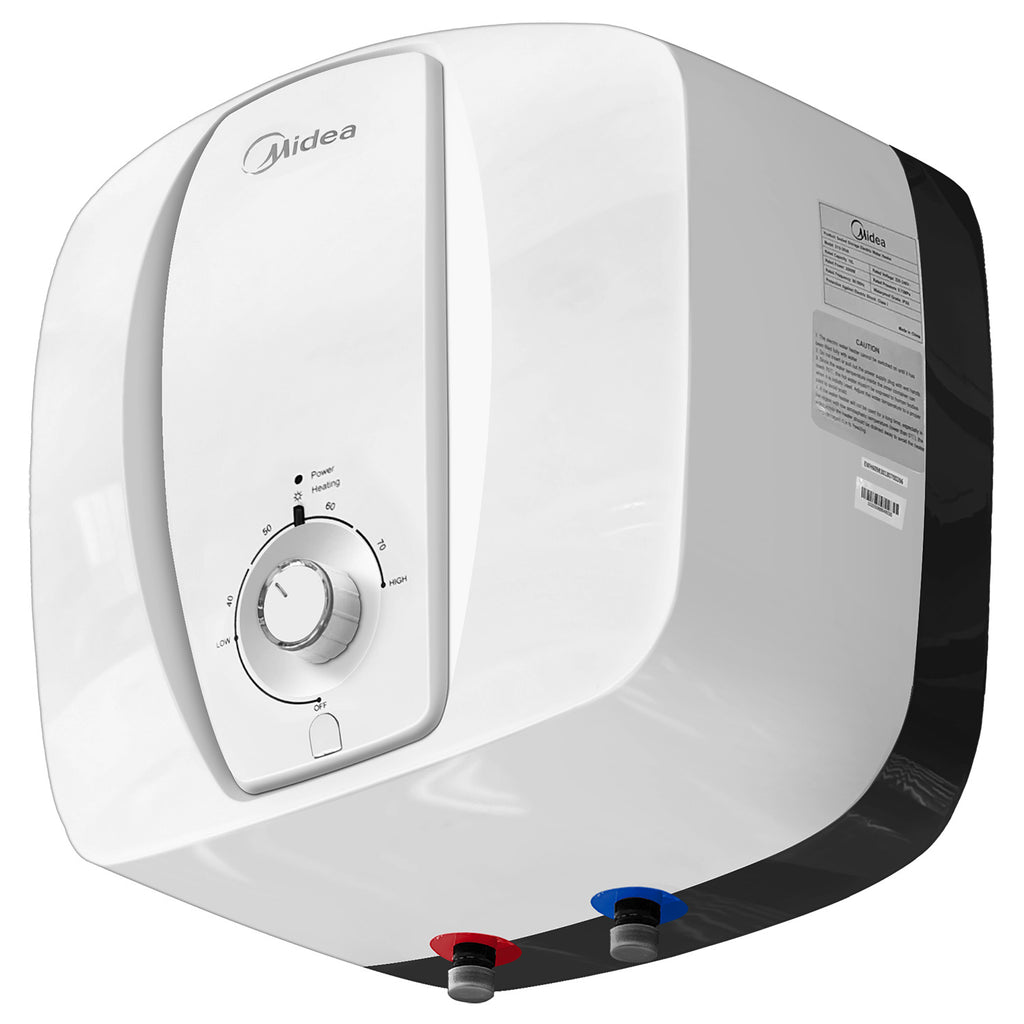

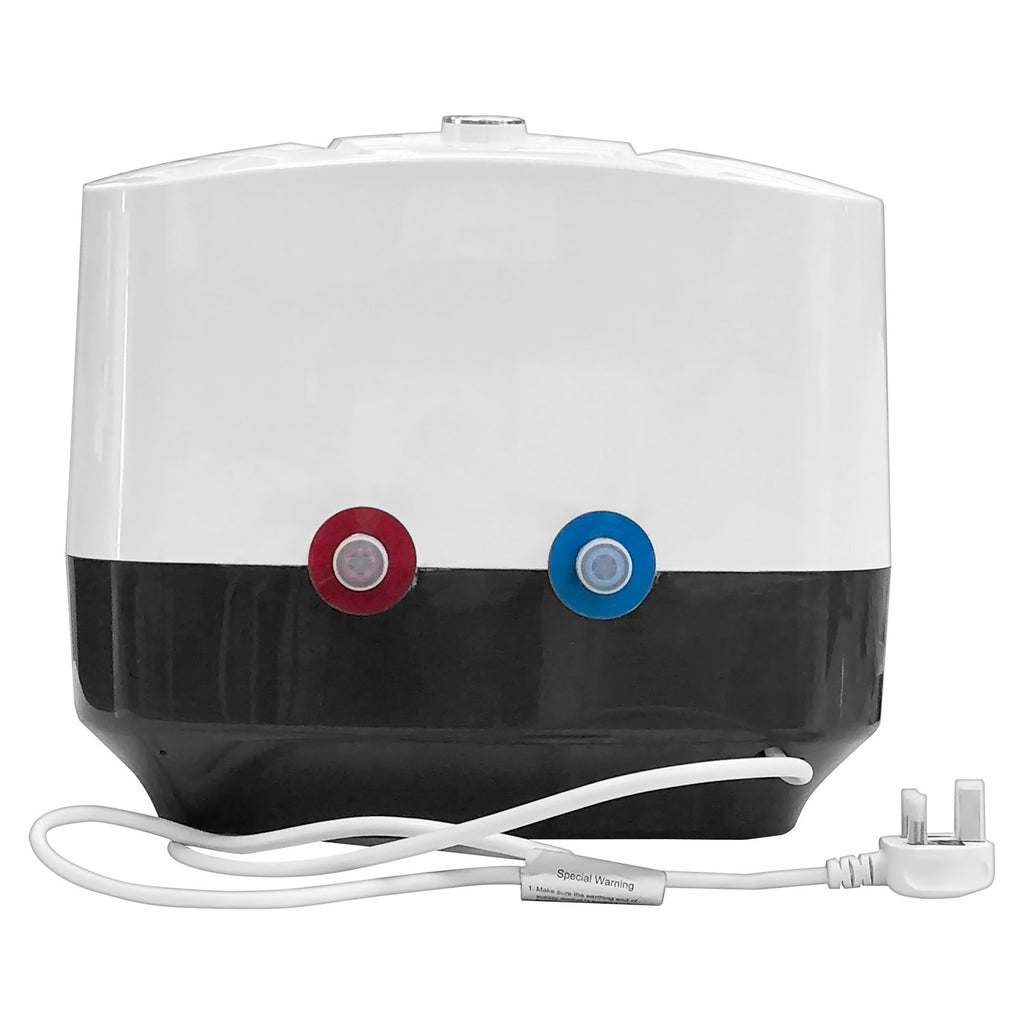

Midea – Storage Water Heater with Plastic Body

15L Sealed Storage Electric water heater

Advantages:

• Enamel coated tank.
• Energy Efficiency enhancer.
• Longer life time magnesium rod.
• Water-proof grade IPX4
• Multi-Safety Protection.

Brand: Midea

Model: D15-20VA

Capacity: 15 Liter

Rated Power:  2500W

Voltage: 230V~

Frequency: 50/60Hz

Current: 10.87 A

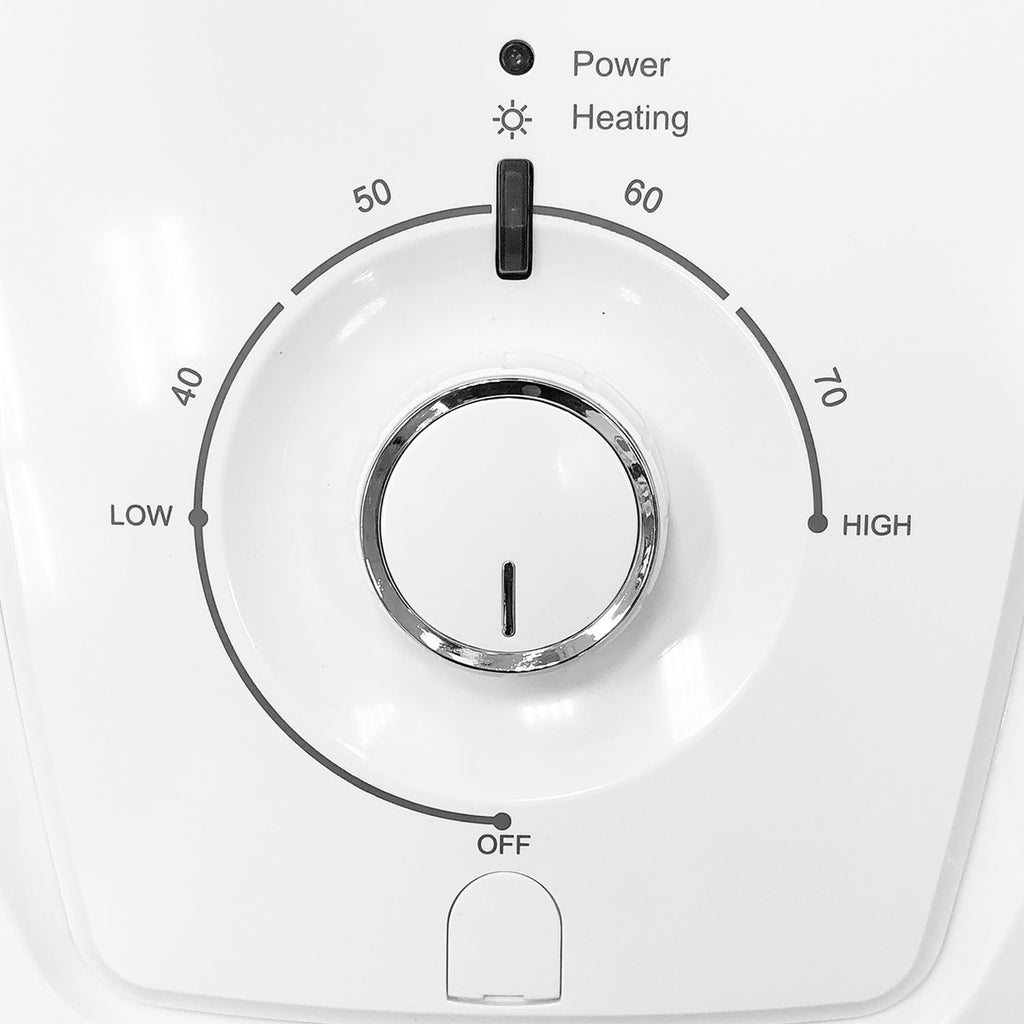

Temperature Range: 30°C - 75°C

Maximum Working Pressure: 0.75 MPa

Max Temperature: 101°C

Material Thickness: 2mm

Outer Cabinet Material: HIPS

Inner Tank: Enamel Tank

Average Thickness of Insulation, (mm): 27mm

Magnesium Anode Size, (mm): Ø18 X 100mm

Type of Healing Element: Enamel

Type of Mounting:  Vertical

Protection Class: I

Water Proof Class: IPX4

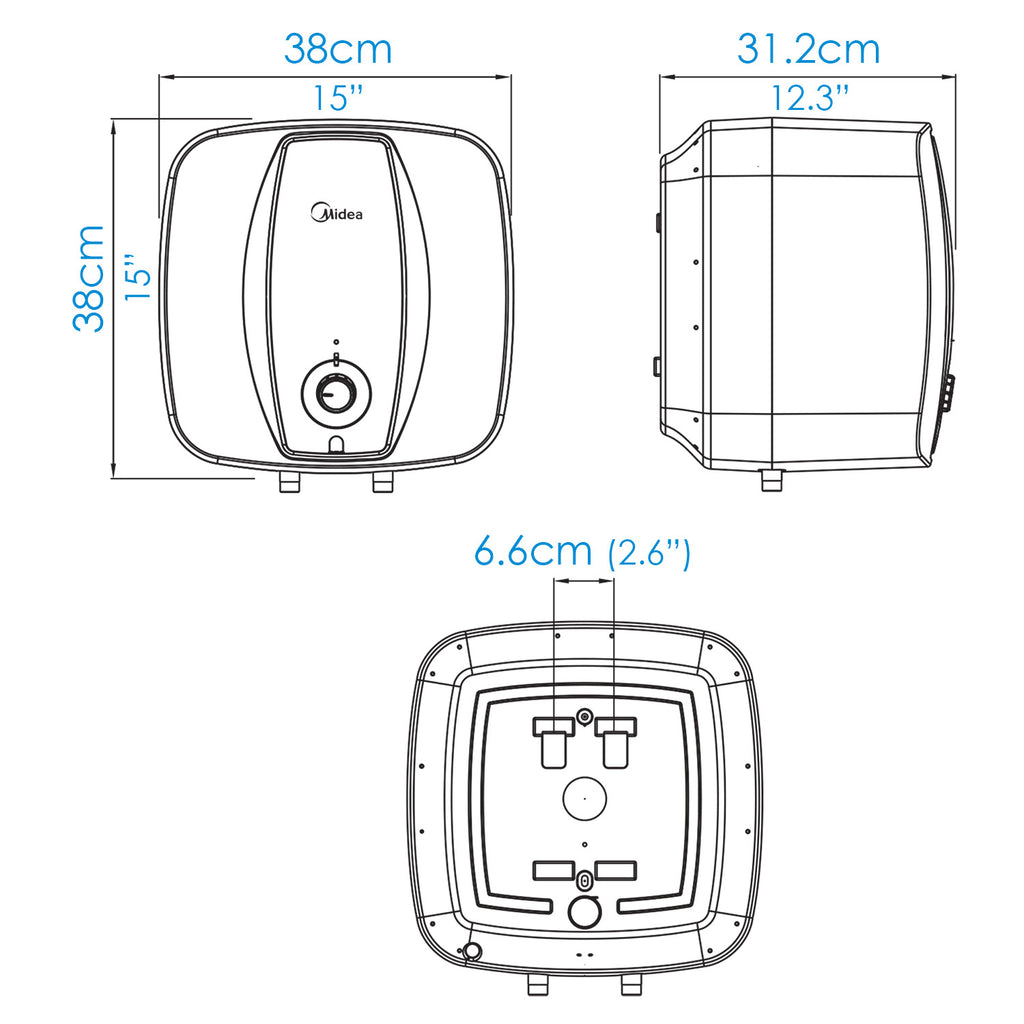

Dimension (W x D x H):

• Millimeter (mm): 380 x 312 x 380mm
• Inch (”): 15” x 12.3” x 15”

Package Dimension (W x D x H): 427 x 395 x 383mm

Net Weight: 9.6kg

Gross Weight: 11.2kg

Warranty: 12 Months Warranty

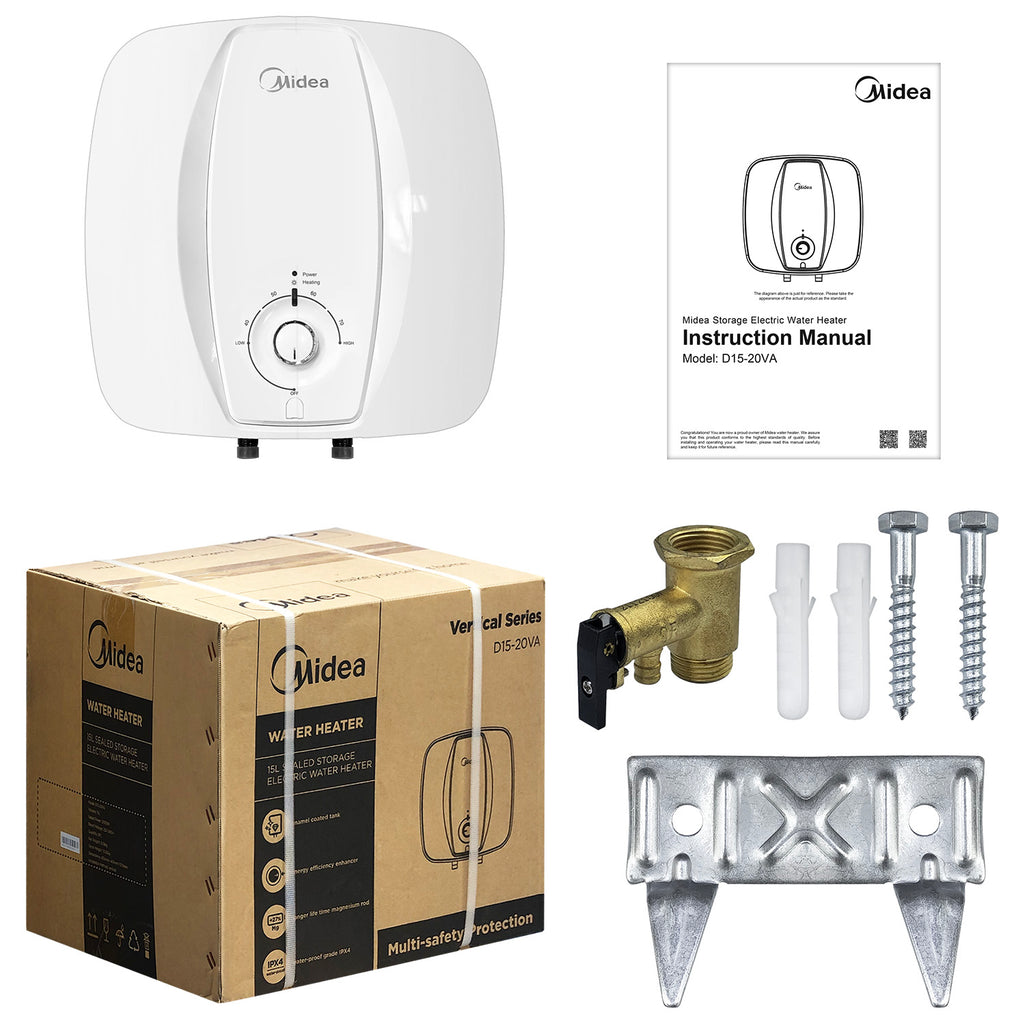

Click here for Instruction Manual
