Note: Power cord and plug not included.

Midea – Instant Water Heater

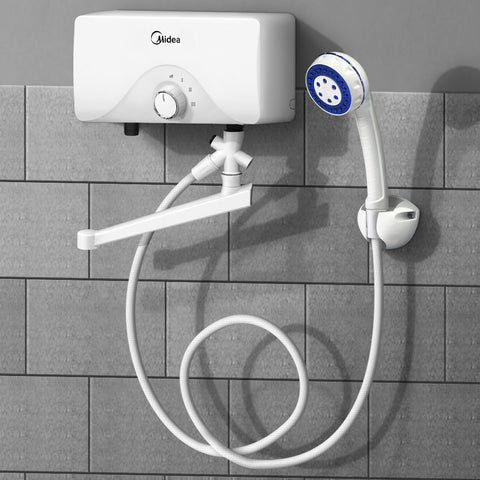

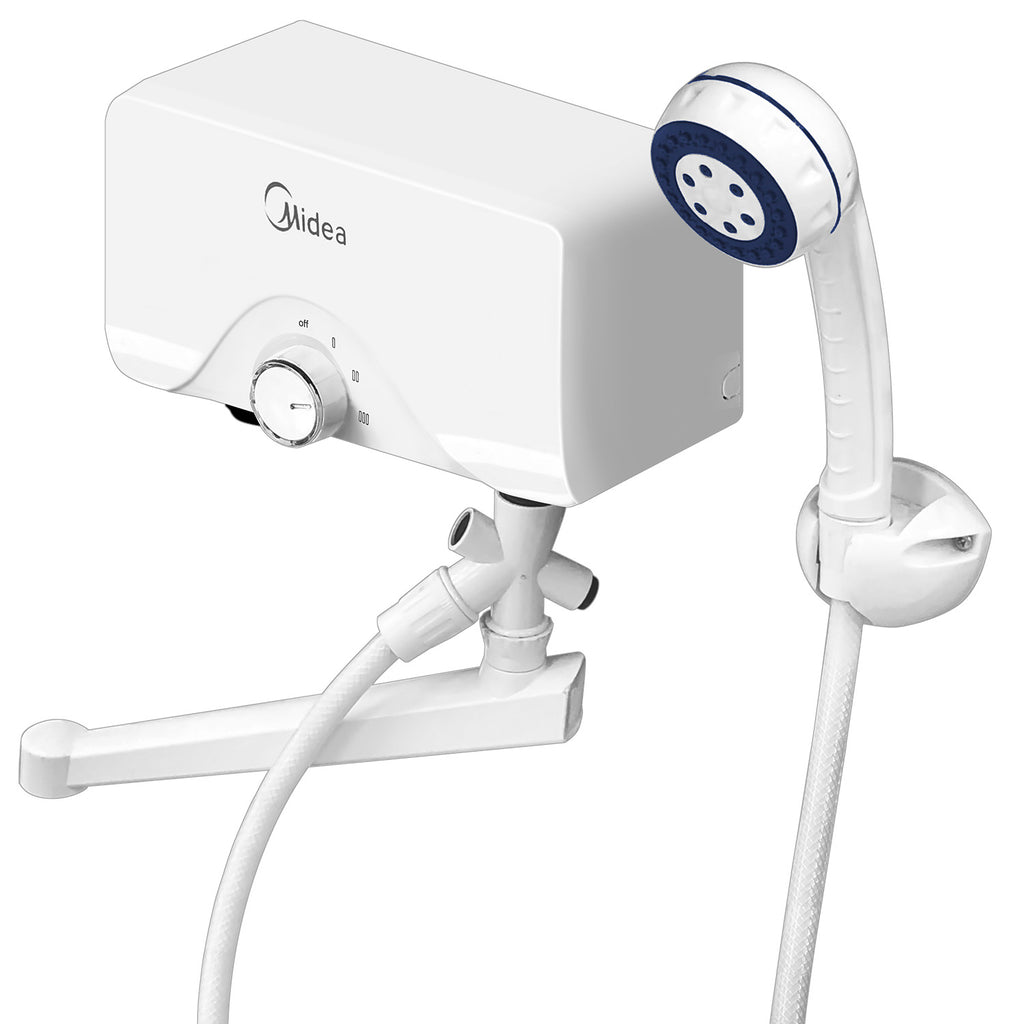

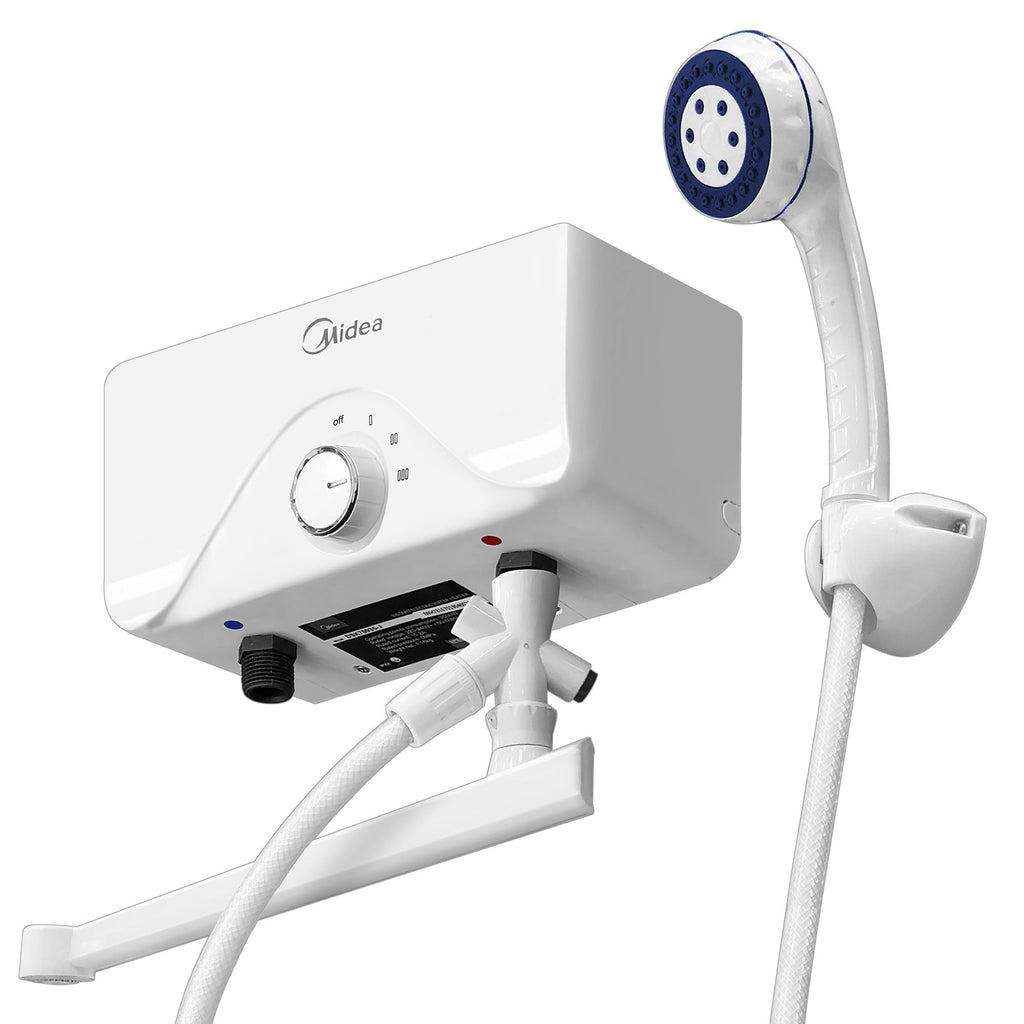

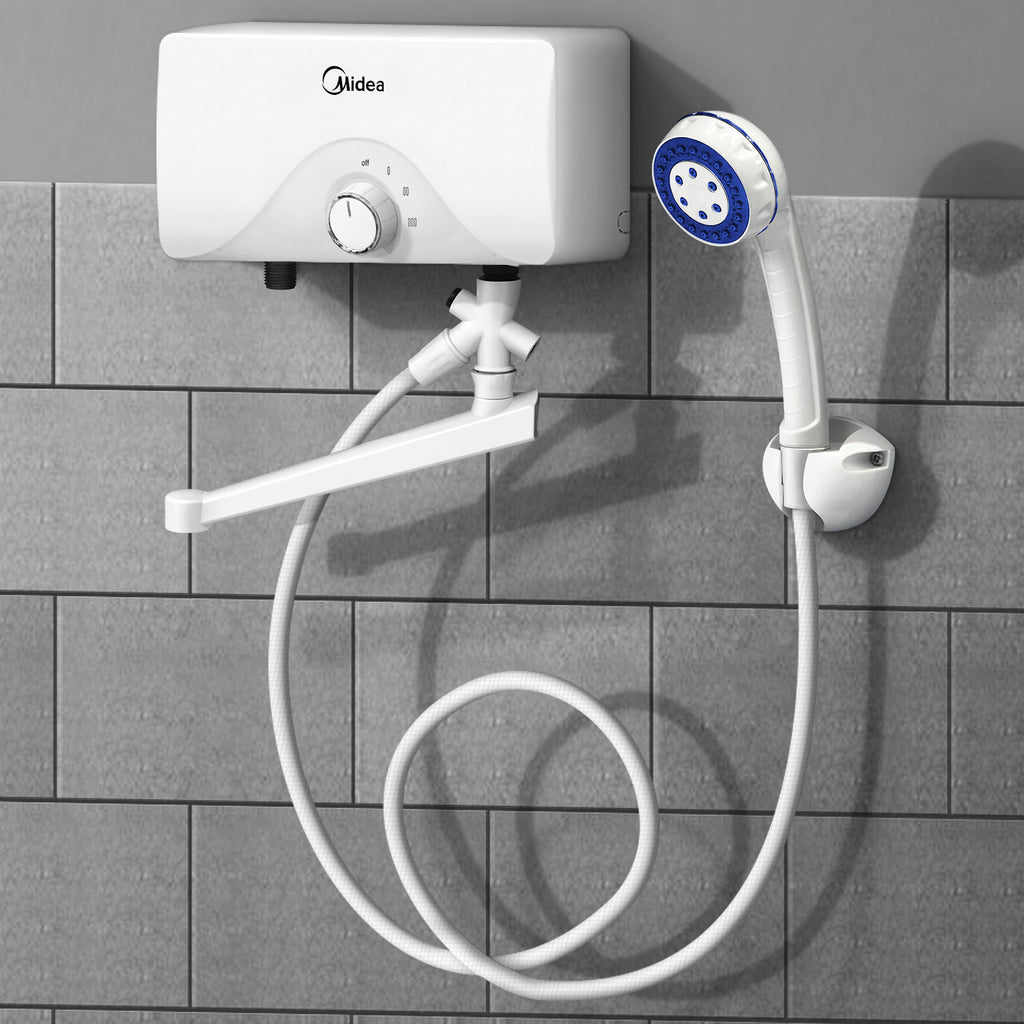

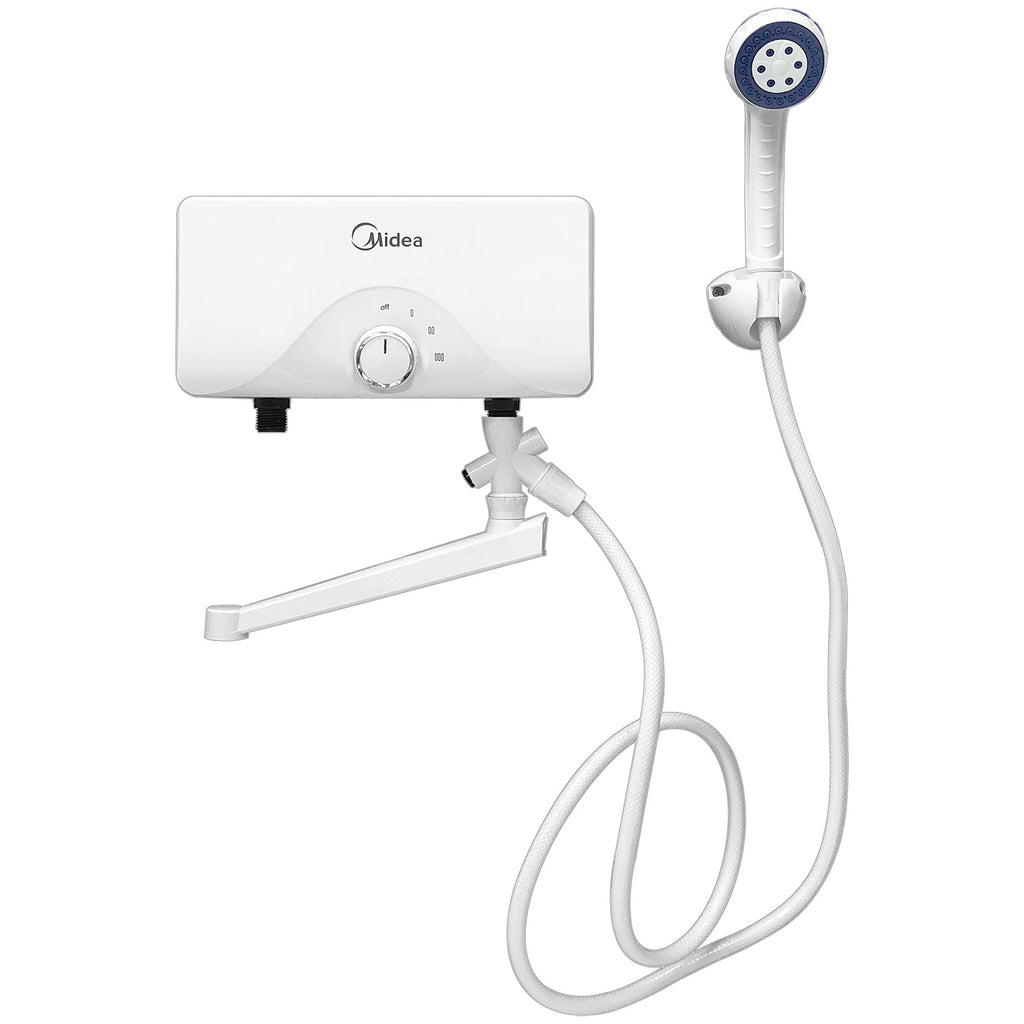

Electric Instant Water Heater with Shower Set

Brand: Midea

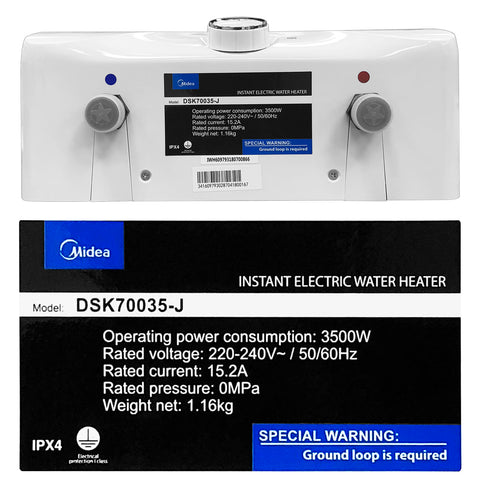

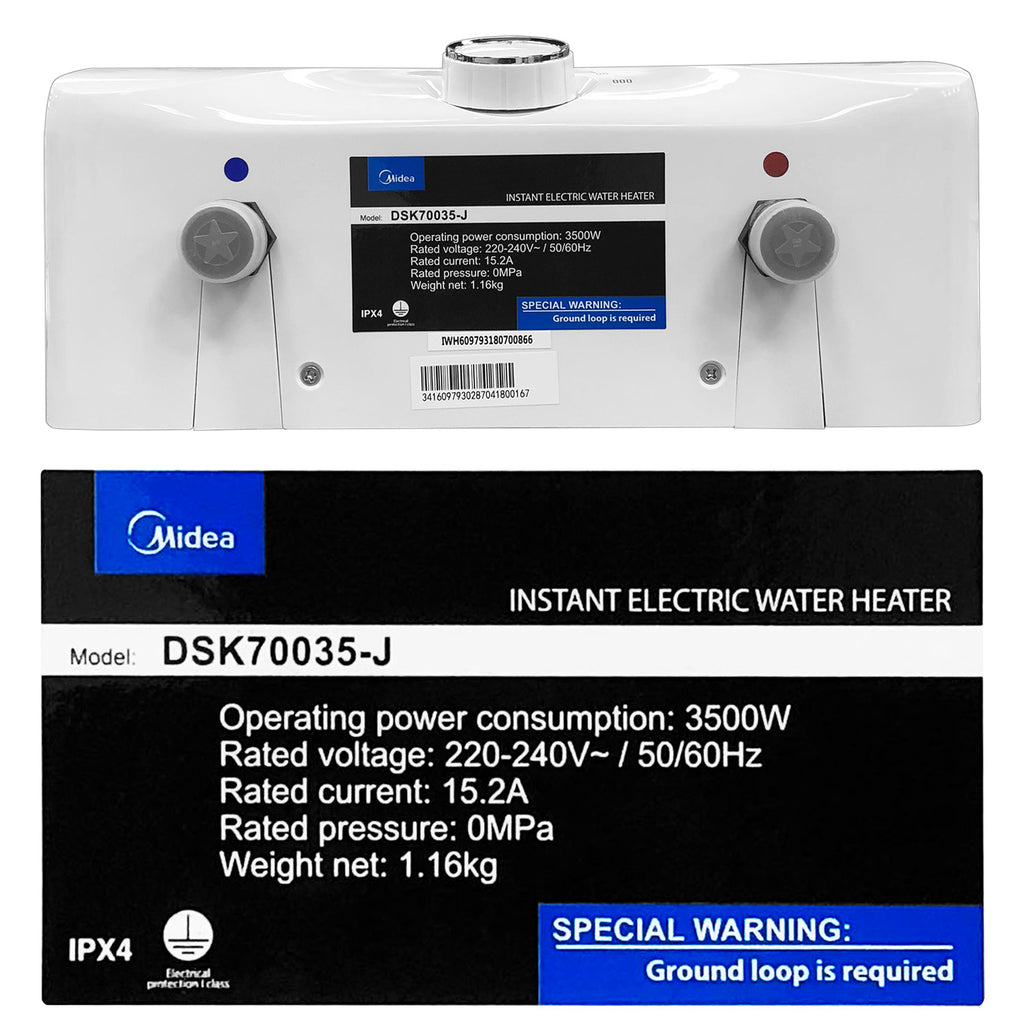

Model: DSK70035-J

Installation Method: Wall-Mounting

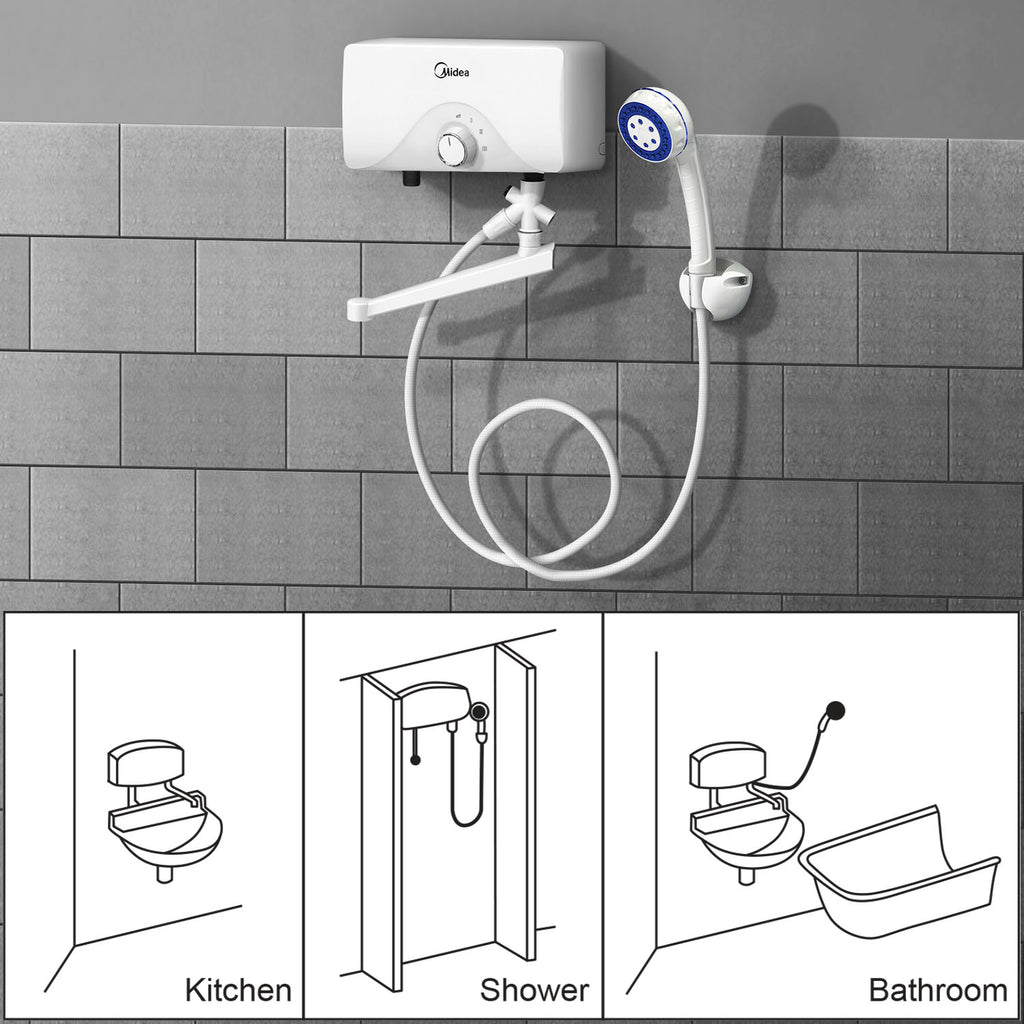

Applicable on: Bathroom and Kitchen

Rated Power: 3500W

Rated Voltage: 220 – 240V~

Rated Frequency: 50/60Hz

Rated Current: 15.9 A

Dia. of Wire Code: 1.5mm²

Air Switch: ≥20A

Rated Pressure: 0 MPa

Flow Rate (min.): 2.5 Liters/minute

Inlet Pressure (max.): 0.03 MPa

Inlet Pressure (min.): 0.6 MPa

Outlet Water Temperature (max.): 55 °C

Waterproof Grade: IPX4

Max. Temperature: 95 °C

Heating Elements Material: Copper

Operating Condition: Open Type

Pump: No

Warranty: 12 Months Warranty

Advantages:

• CE Certificate.
• Earthing protection.
• Dry Heat Protection.
• Overheat Protection.
• Water-proof grade IPX4.
• Thermoplastic Material.
• Copper heating element.

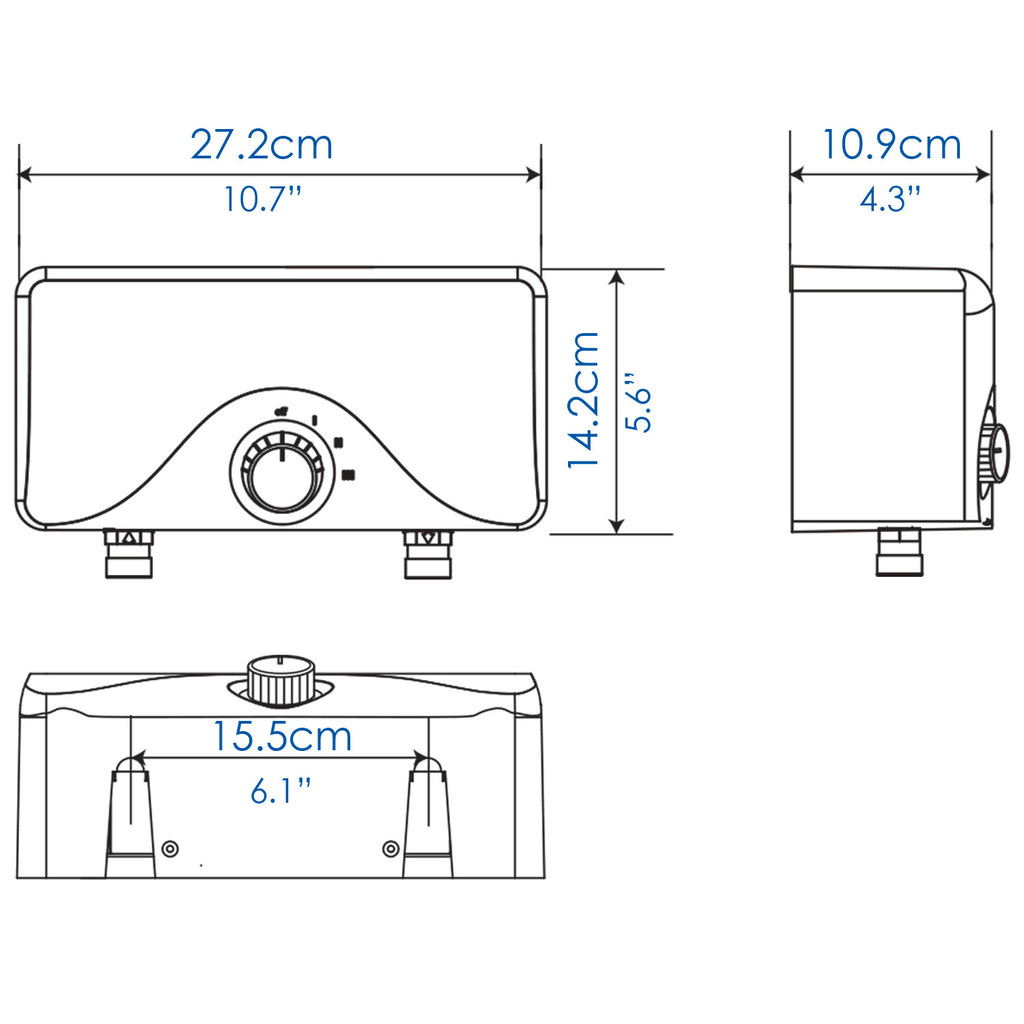

Dimension & Weight:

Product Dimension (W x D x H): 27.2 x 10.9 x 14.2cm (10.7” x 4.3” x 5.6”)

Package Dimension (W x D x H): 28.2 x 12.2 x 23.4cm

Net Weight: 1.16kg

Gross Weight: 1.8kg

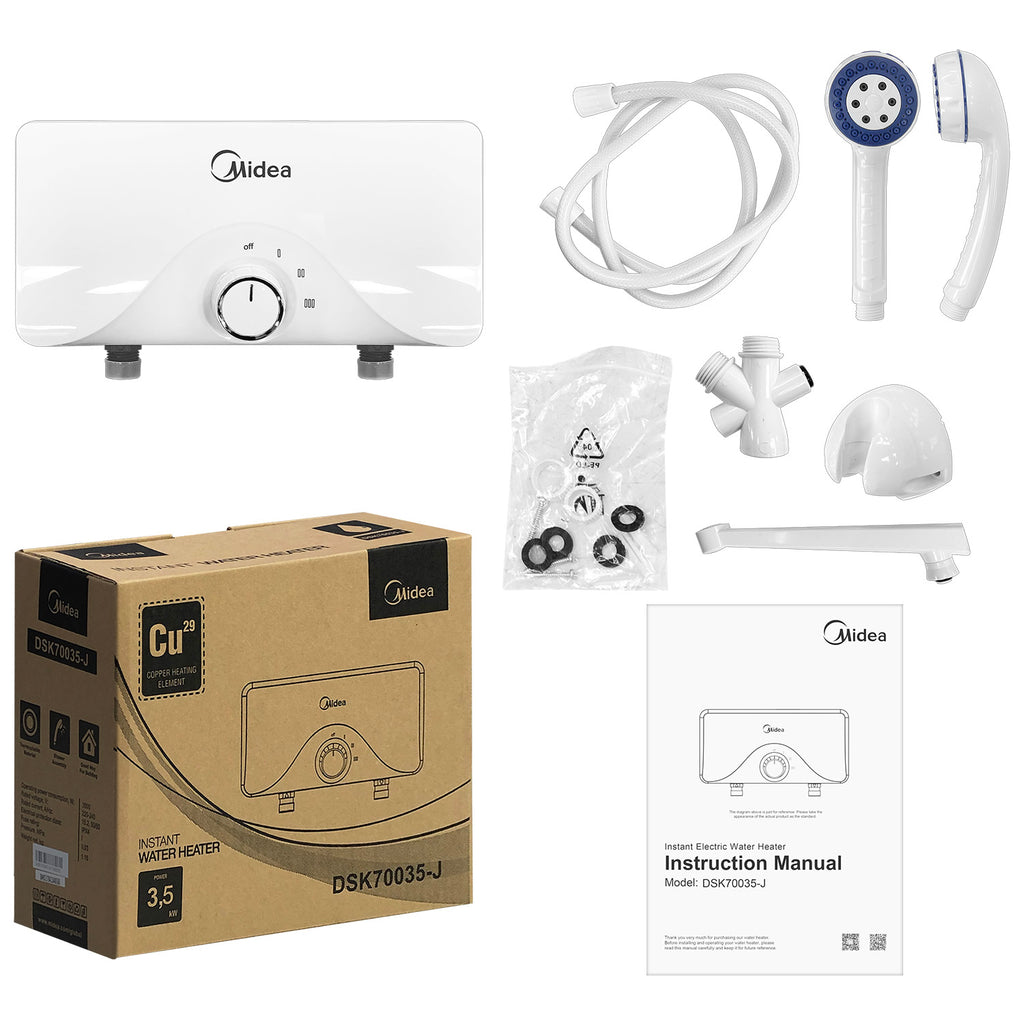

Packing Contents:

• Water heater – x1
• Shower head – x1
• Shower hose – x1
• Shower holder – x1
• Hand wash accessory – x1
• Water valve – x1
• Flat gaskets – x4
• Mounting Kit – x1
• User manual – x1

Basic Installation Charge Note:

The basic installation charge covers the wall mounting and installation of the water heater only.

Please ensure that:

• A water inlet and outlet connection (including hoses and valves) is available within reach of the water heater installation location.
• A dedicated 15A power socket is installed within reach of the water heater power cord.

Any additional plumbing, electrical work, extension of water pipes, relocation ofconnections, or installation of new power points is not included in the basic installation charge and will be charged separately if required.
