Note: Power cord and plug not included.

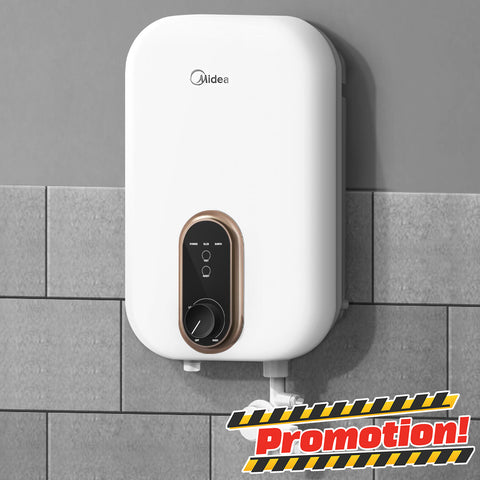

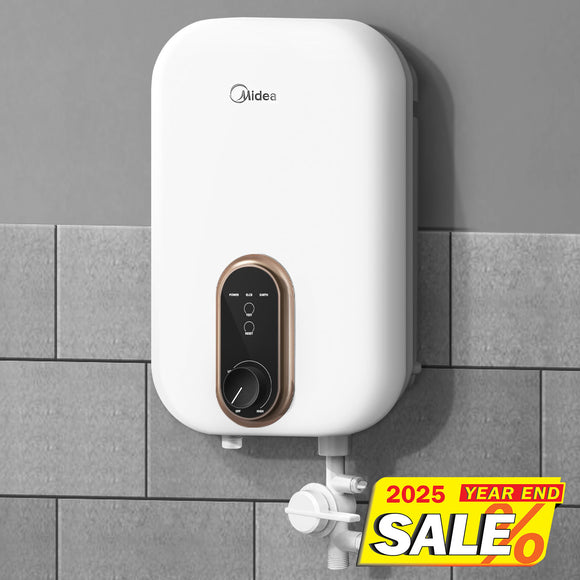

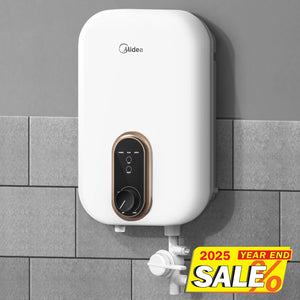

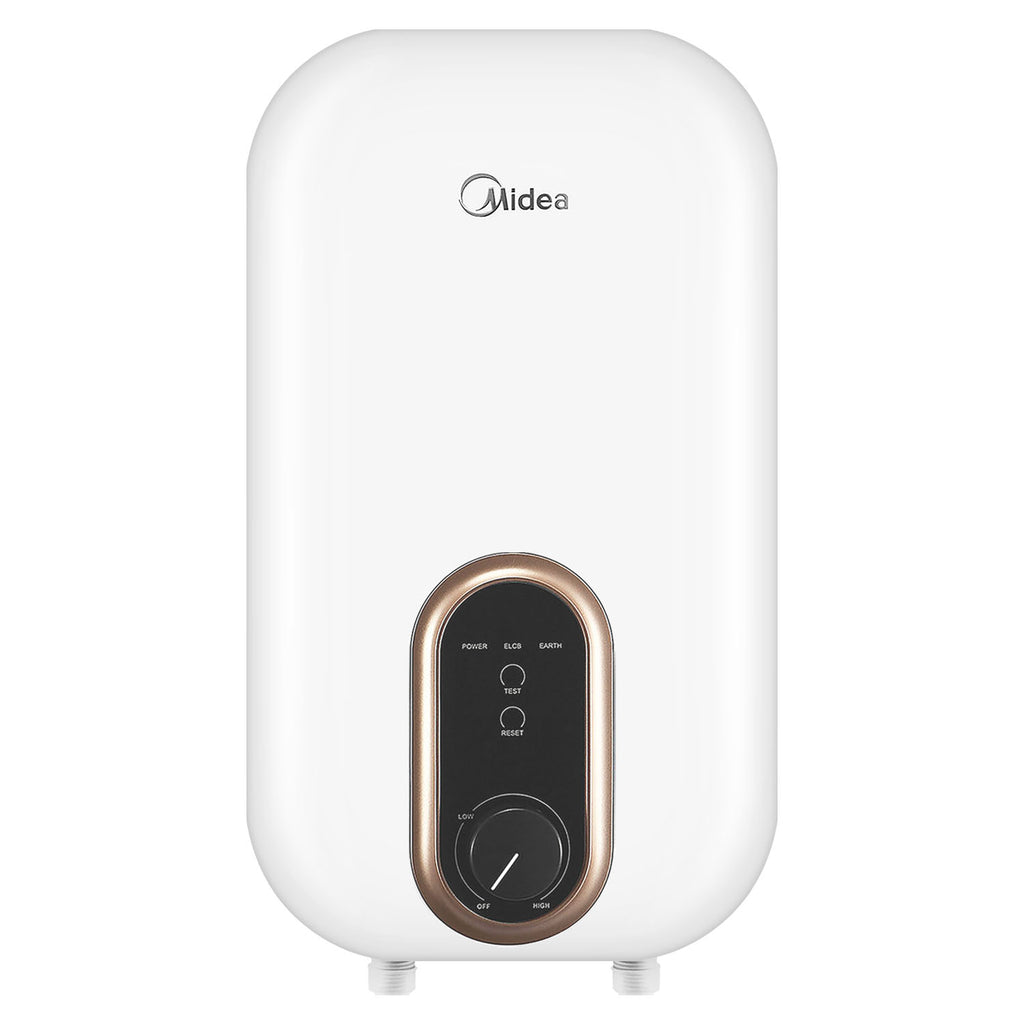

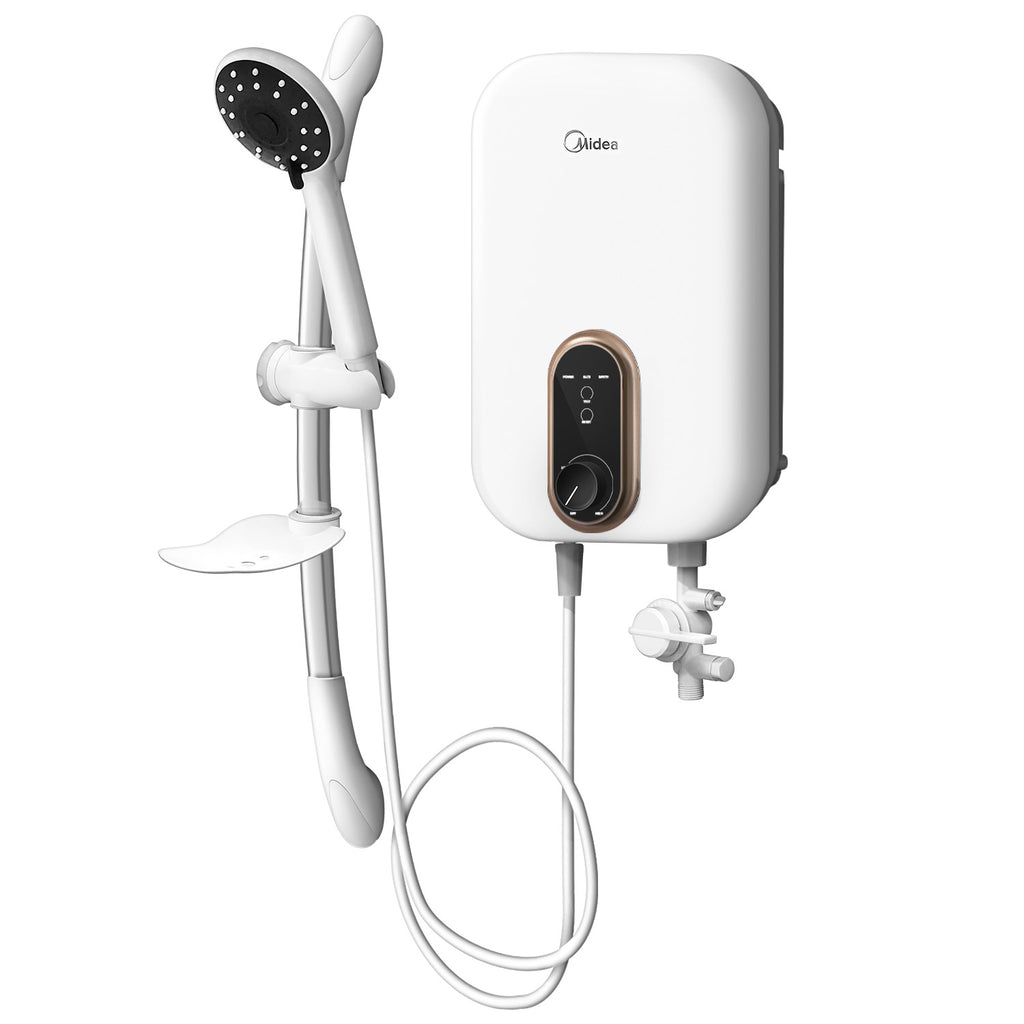

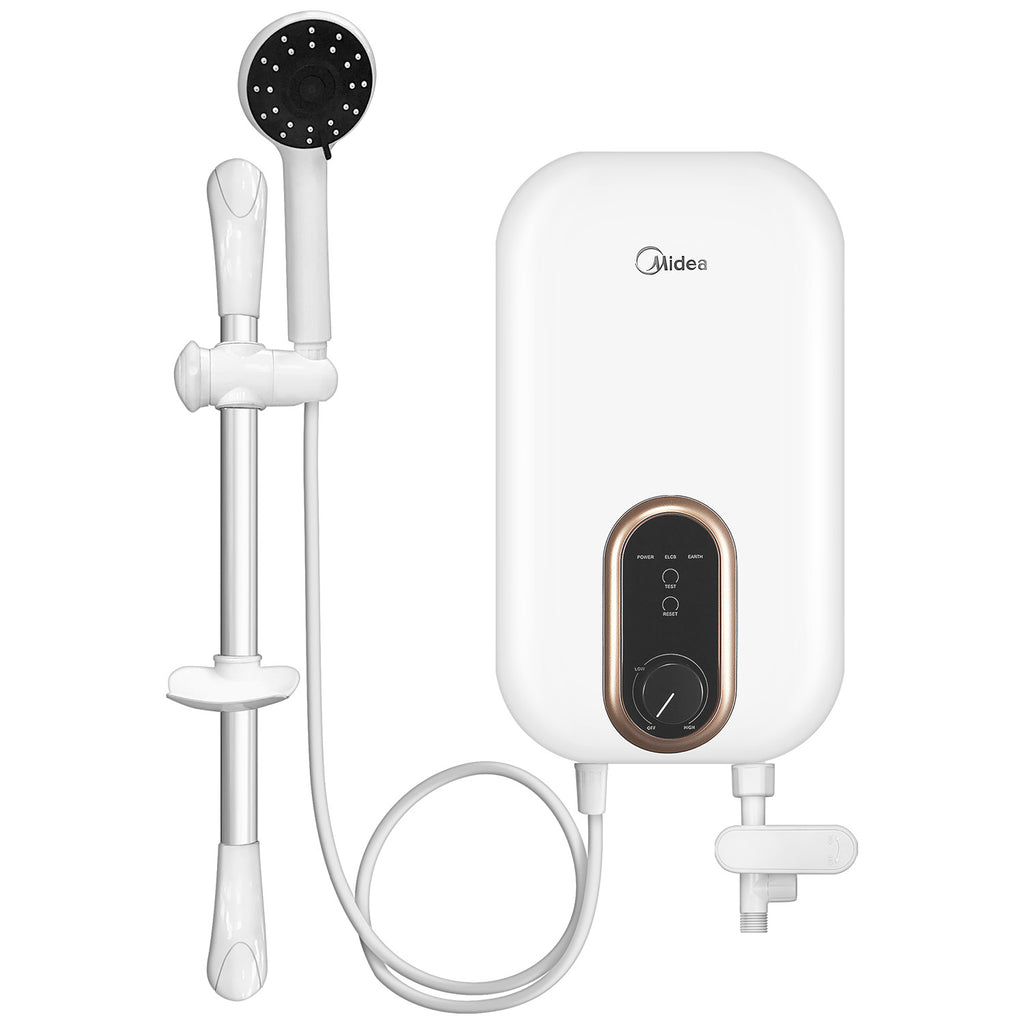

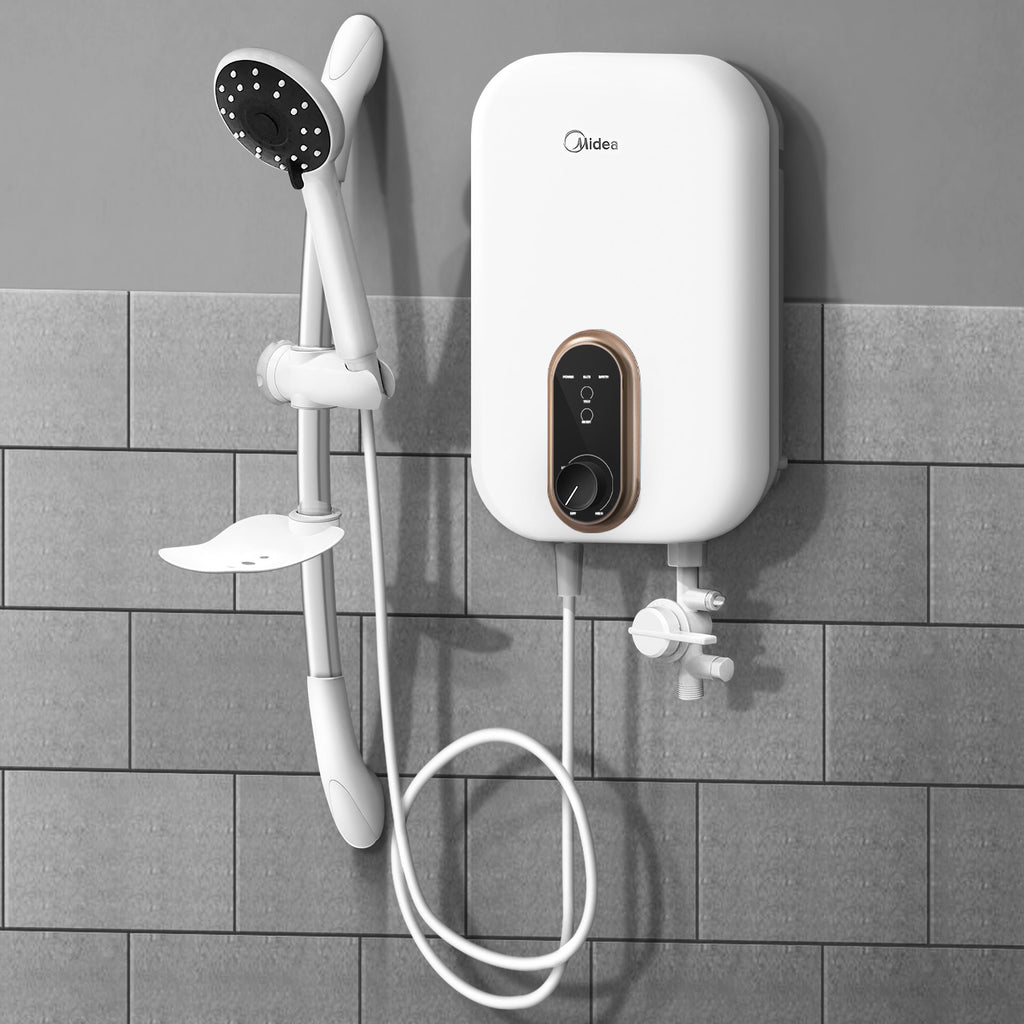

Midea – Instant Water Heater with Shower Set

Instant Electric Water Heater

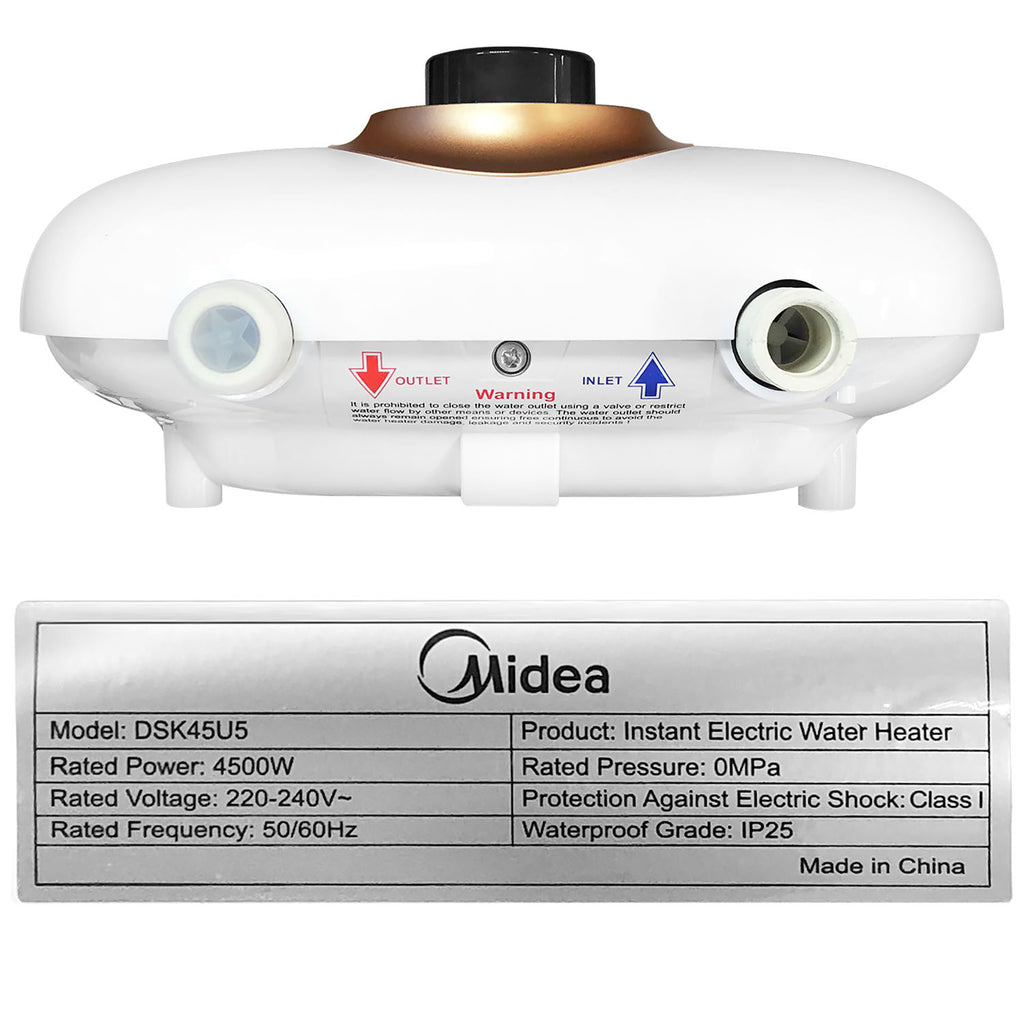

Brand: Midea

Model: DSK45U5

Rated Voltage: 220/240V-

Rated Frequency: 50/60Hz

Rated Power: 4500W

Rated Current: 20.4A

Dia. Of Wire Core: 2.5mm²

Air Switch: ≥25A

Rated Pressure: 0 MPa

Minimum Flow Rate: 1.2L/min

Minimum inlet Pressure: 0.03MPa

Maximum inlet Pressure: 0.3MPa

Protection class: Type I

Water proof class: IP25

Warranty: 12 Months Warranty

Advantages:

• Built-in ELCB: Cuts off current flow in the event of any current leakage.
• Built-in Auto flow sensor: Shuts off heater if water flow is lower than 1.2 litre/minute.

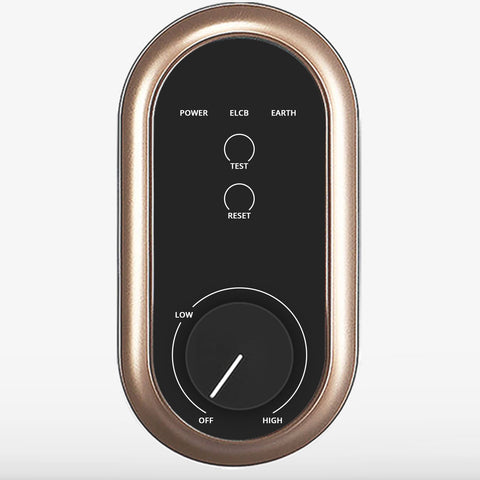

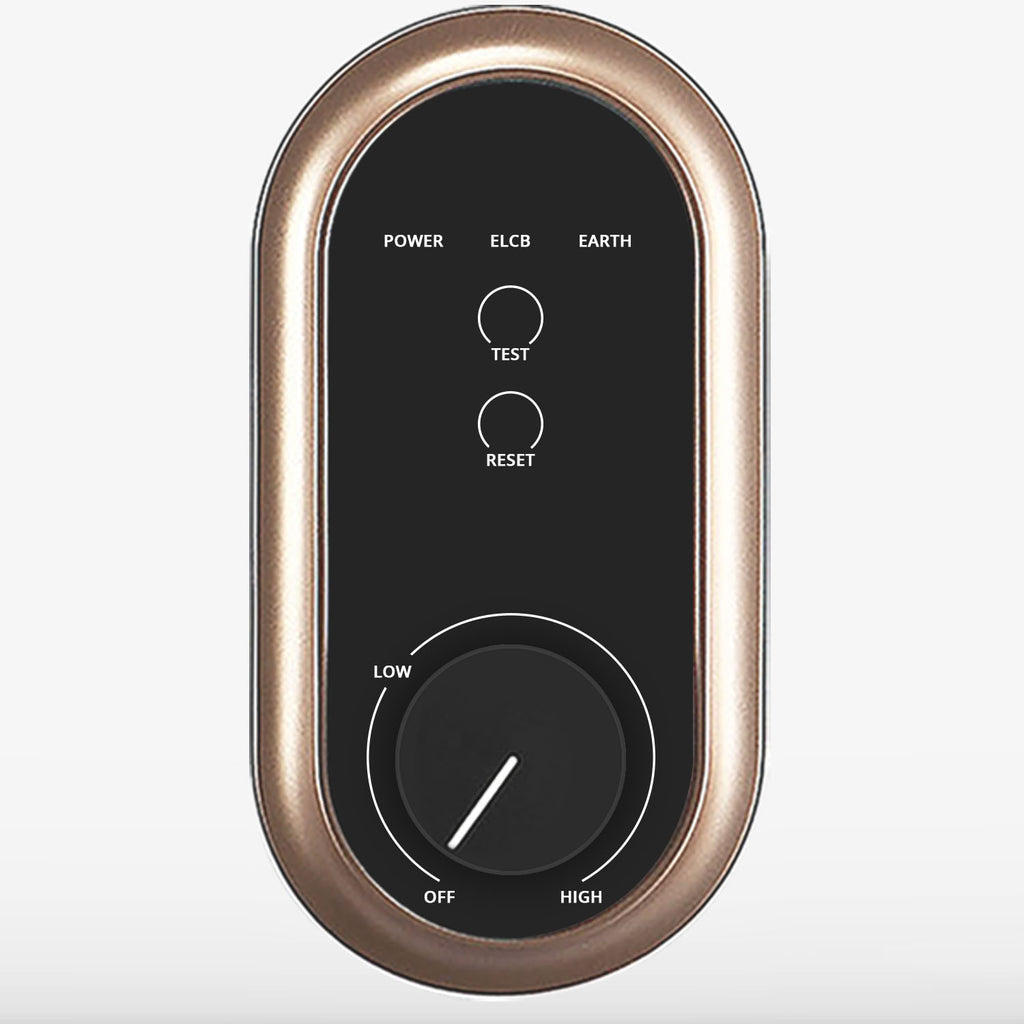

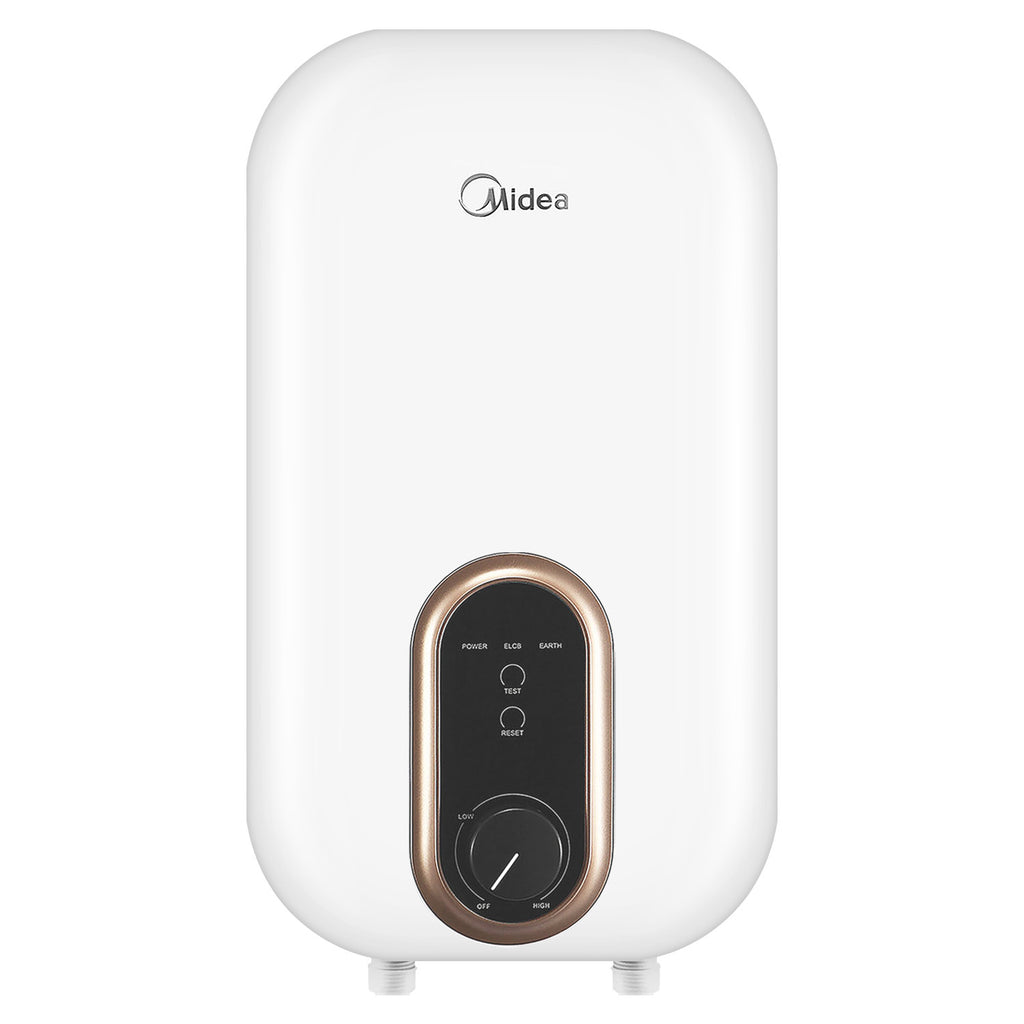

• Stepless control: Shower temperature can be selected according to personal preference.
• Splash-proof IP25 Standard: Protection against water seeping into the heater’s internal mechanism.
• Nylon glass fibre: A strong & durable non-conductive material for further insulation against electric shock.
• Precise thermal cut-out: Electronic detector auto shut off in the event of water temperature over 55℃.

Dimension & Weight:

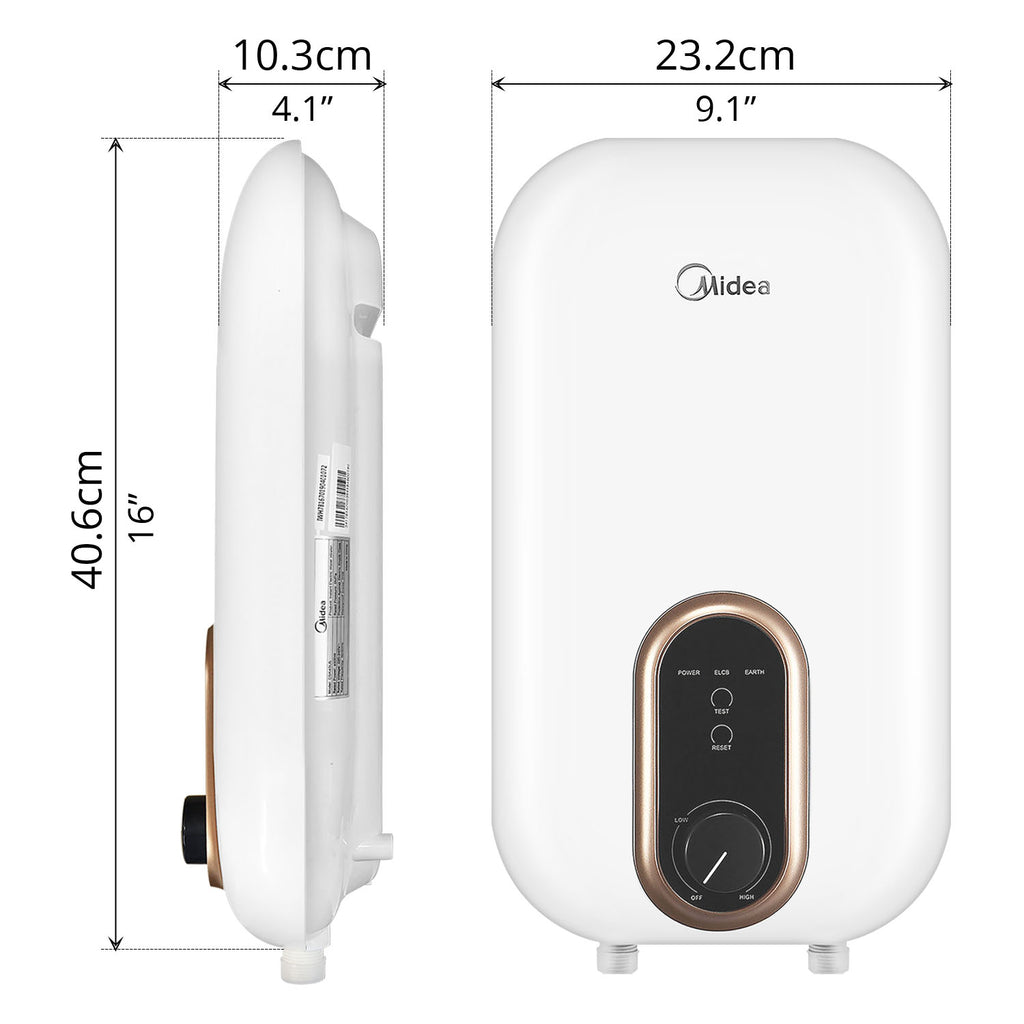

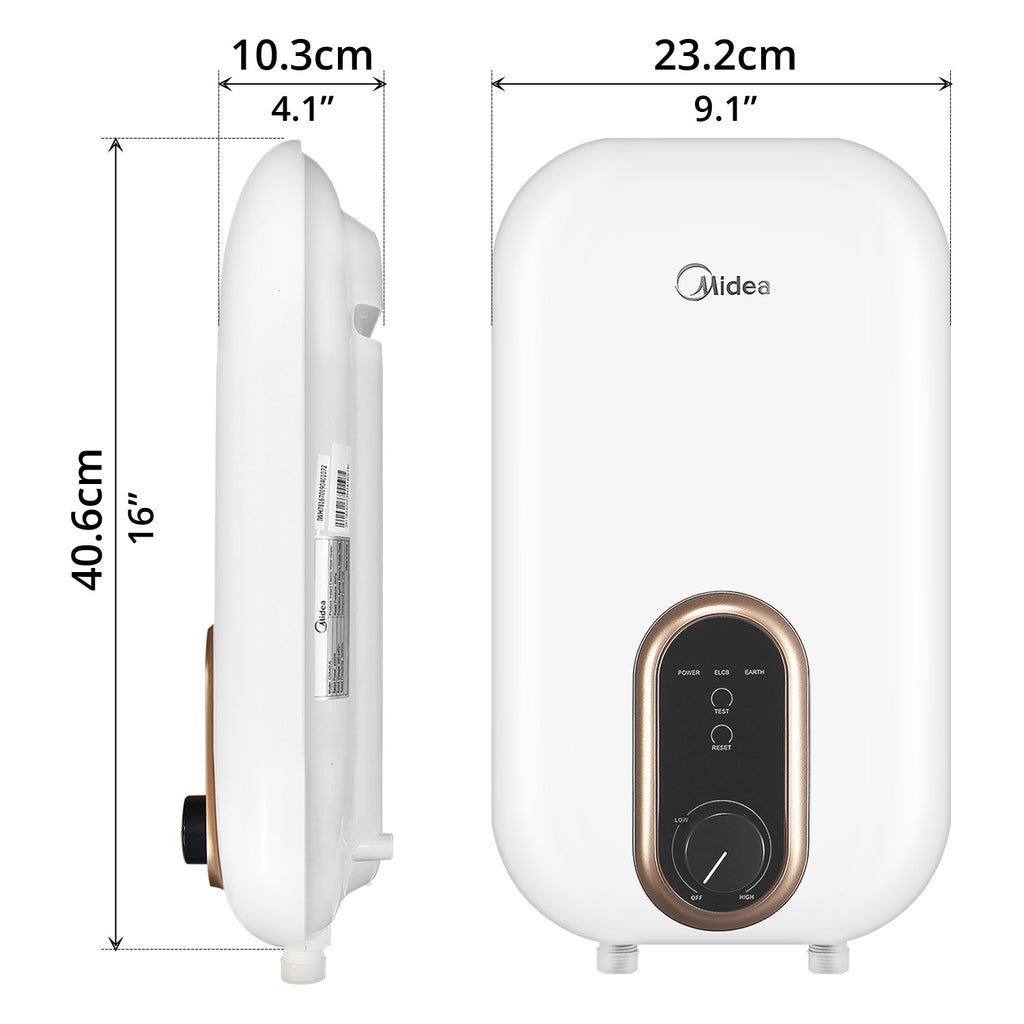

Product Dimension (W x D x H): 23.2 x 10.3 x 40.6cm (9.1” x 4.1” x 16”)

Package Dimension (W x D x H): 26 x 12.5 x 66cm (10.2” x 4.9” x 26”)

Net weight: 1.84kg

Gross weight: 2.6kg

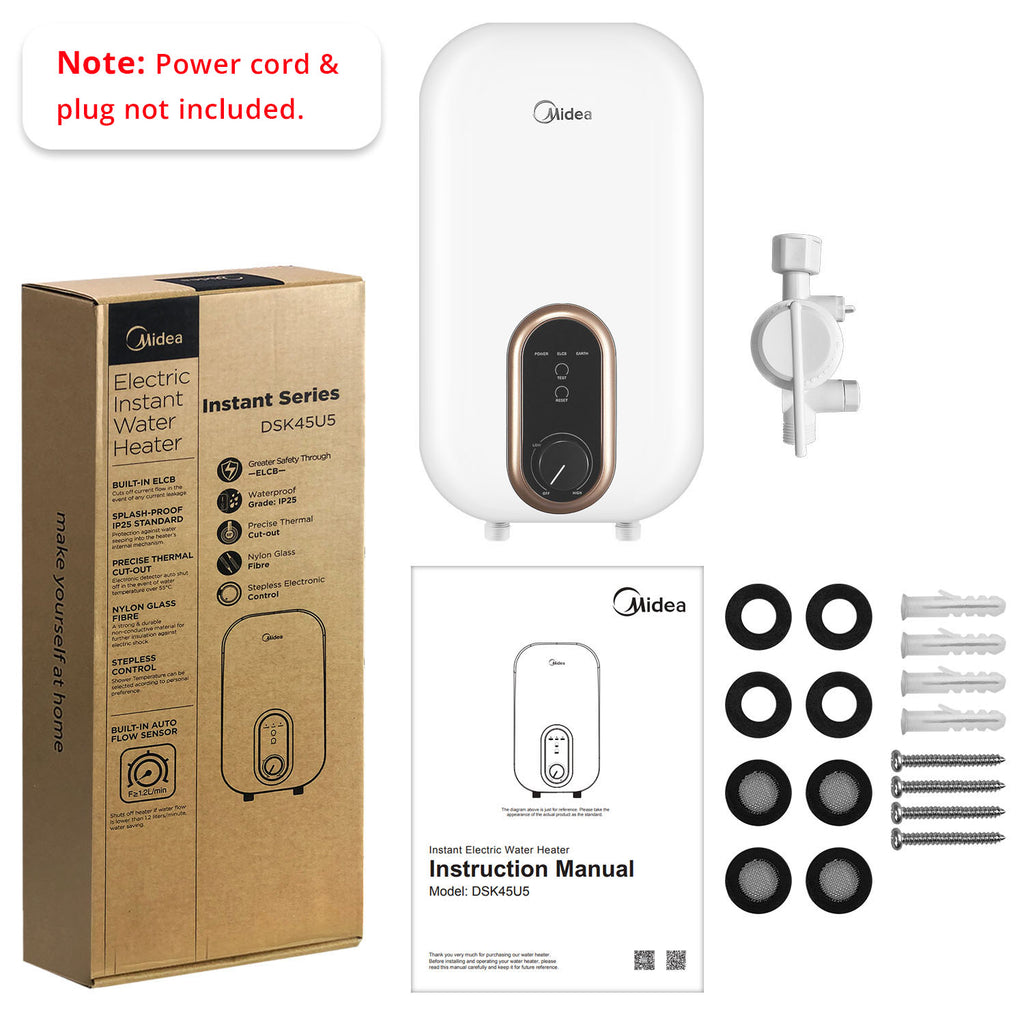

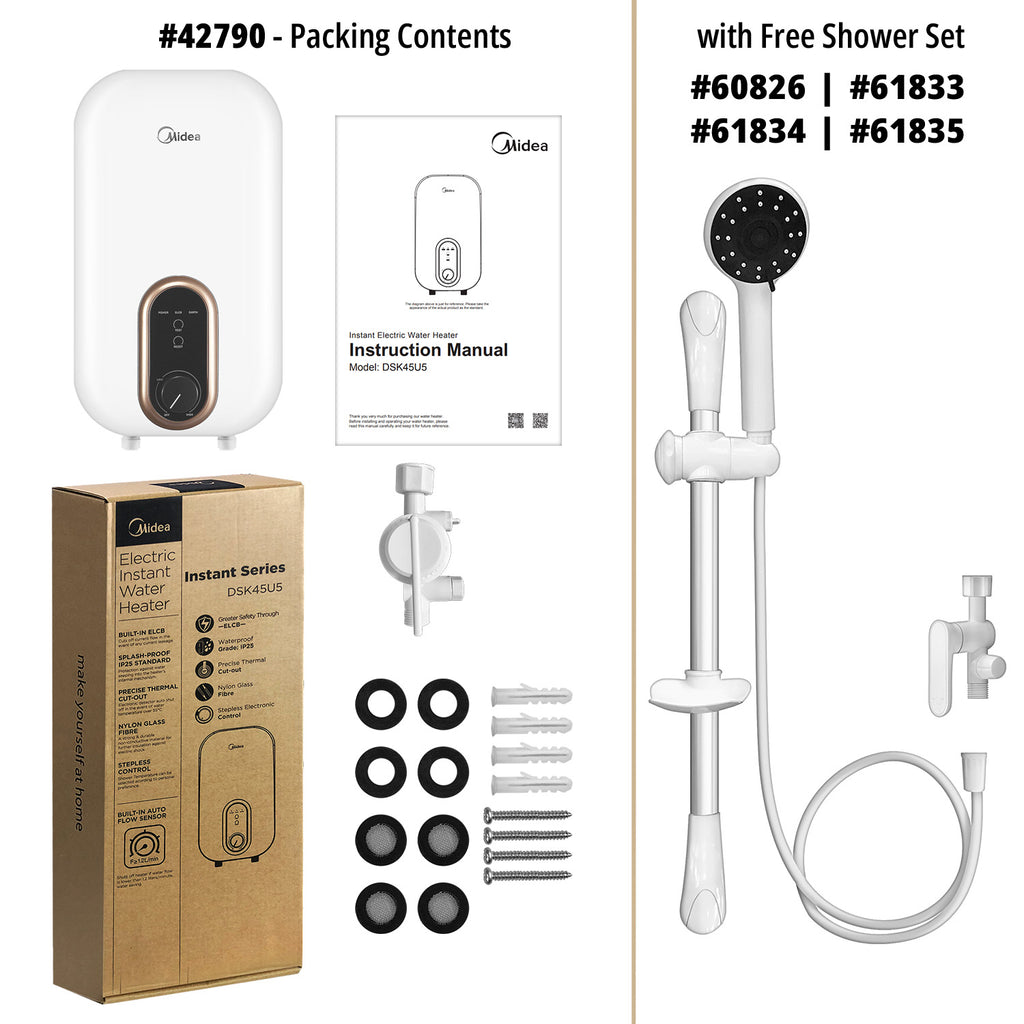

Water Heater Packing Contents:

• Water heater – x1

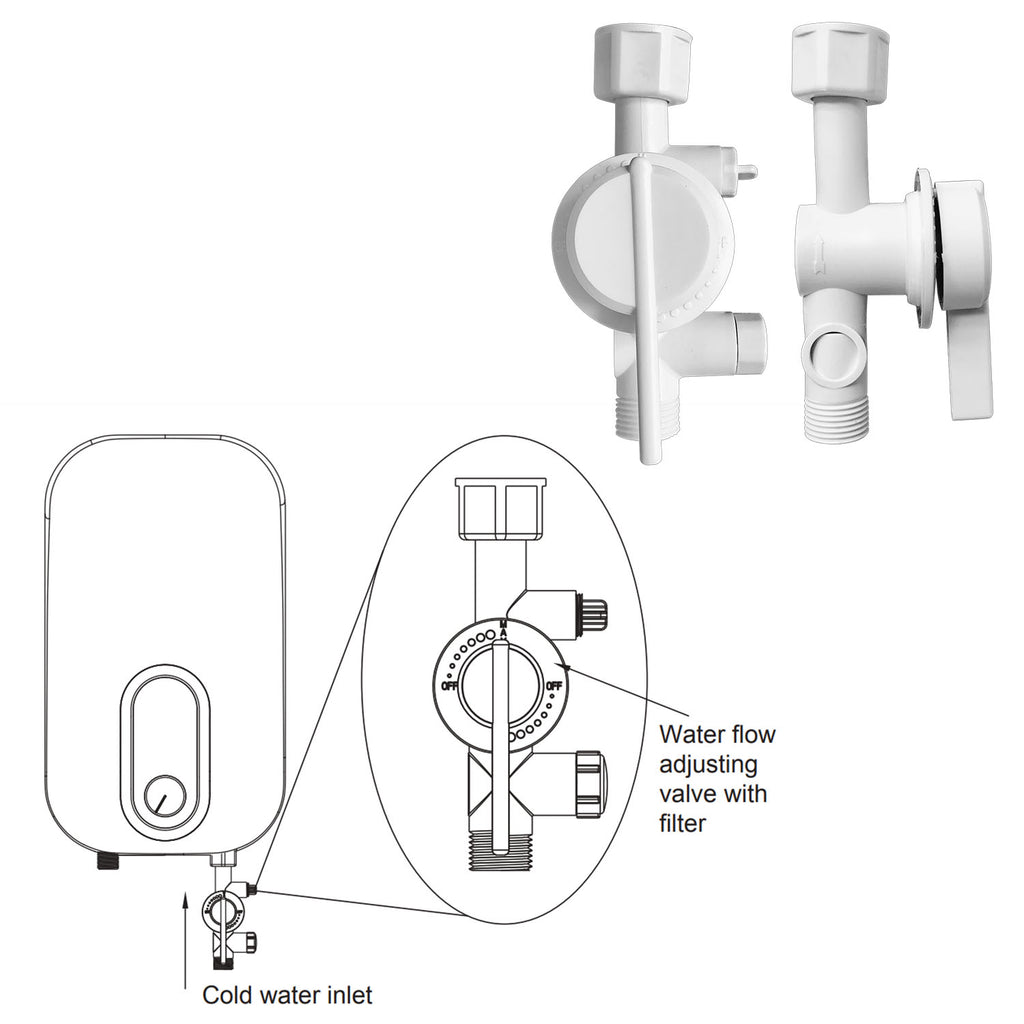

• Filter control valve – x1
• Screws – x4
• Screw plugs – x4
• Flat gaskets – x8
• User manual – x1

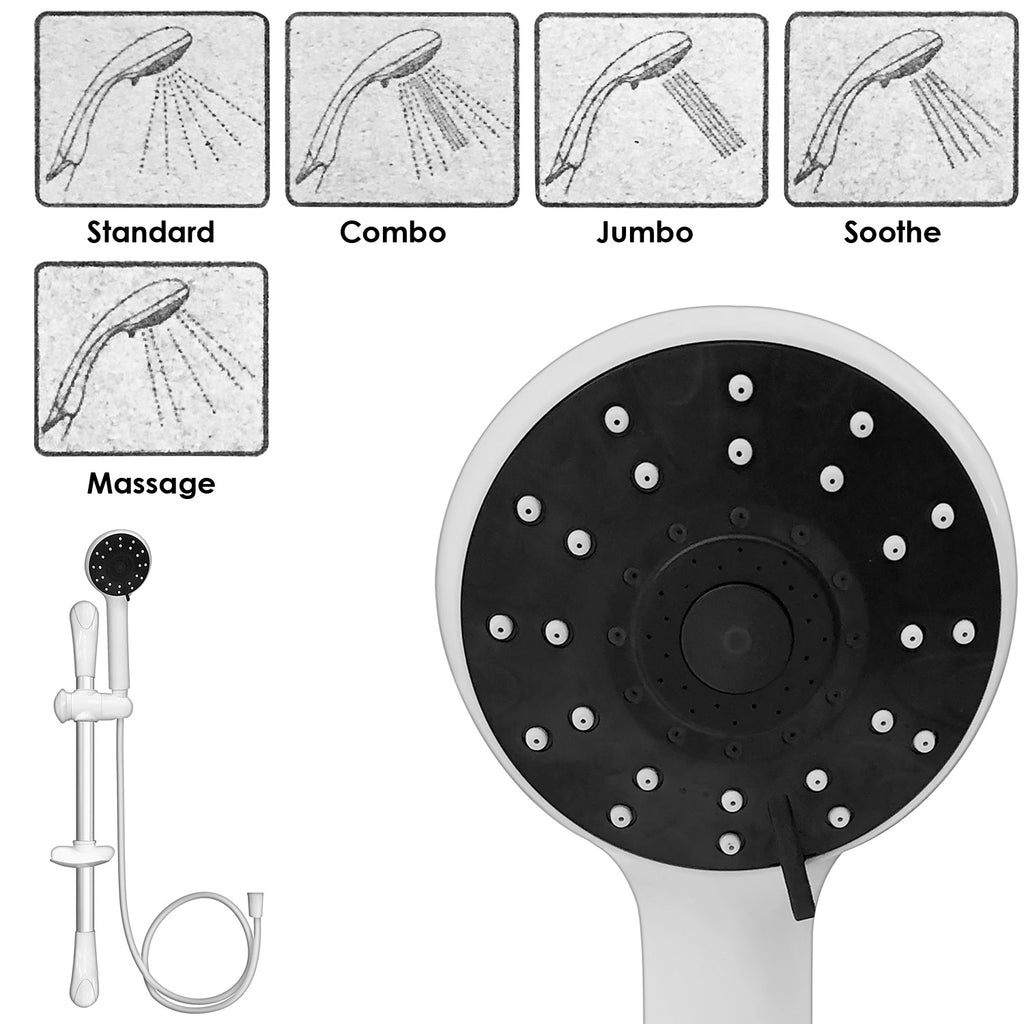

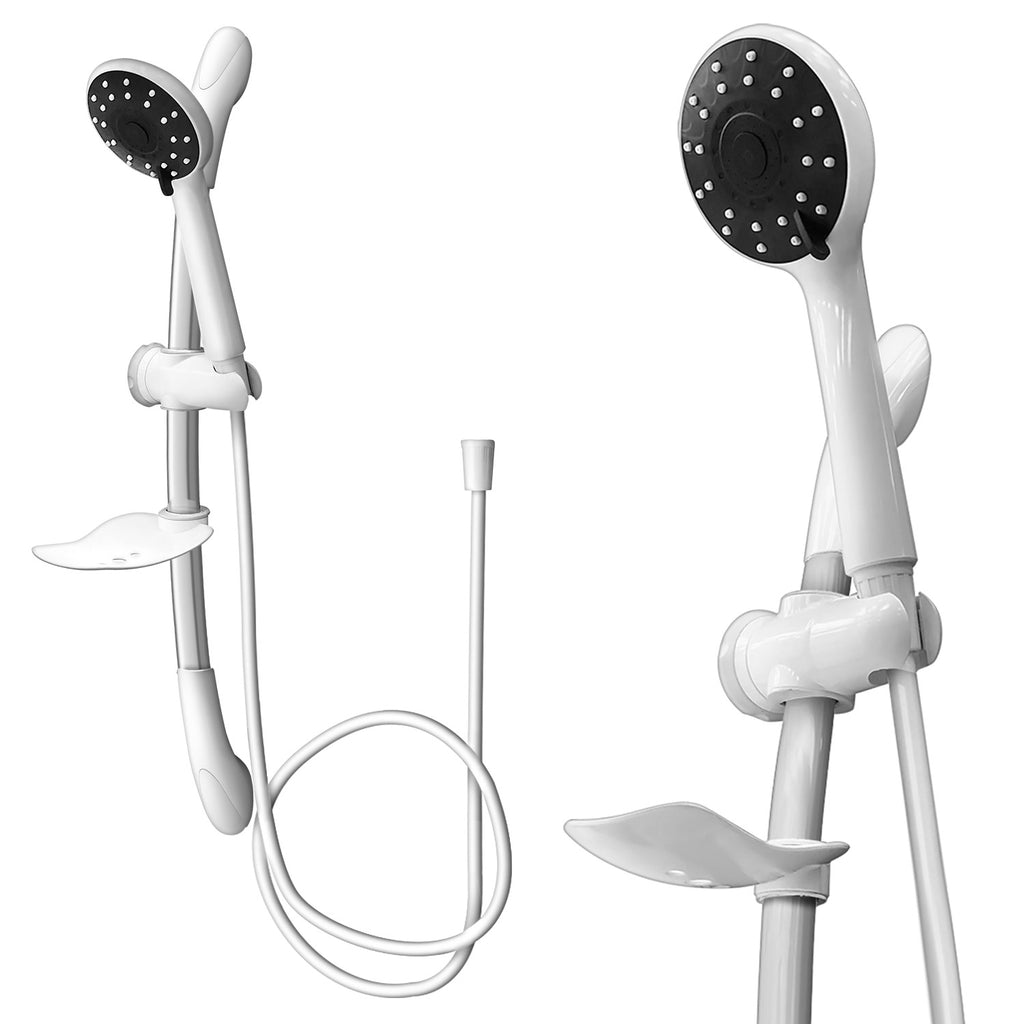

with Shower Set Contents:

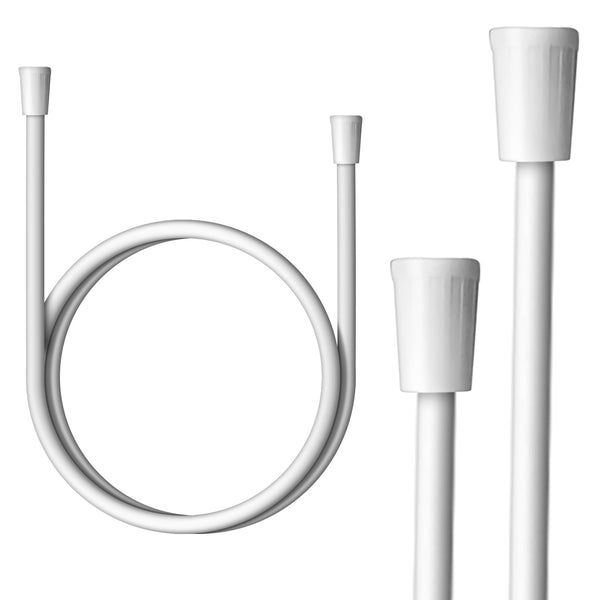

• • #61833 - Shower Hose - x1

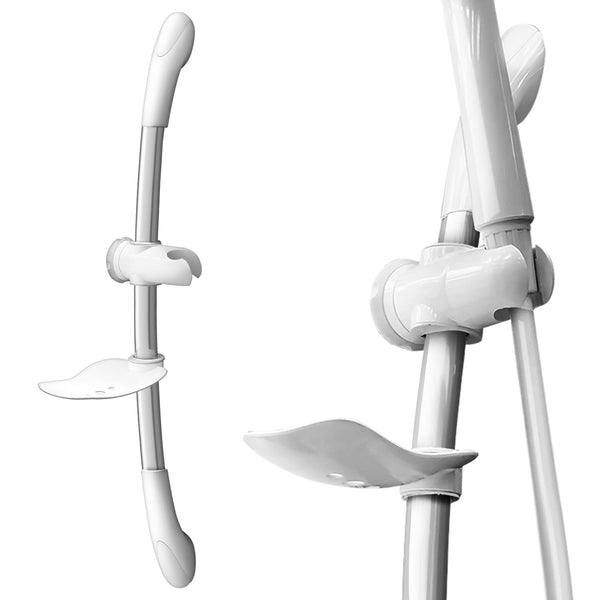

  • #61834 - Shower Holder - x1

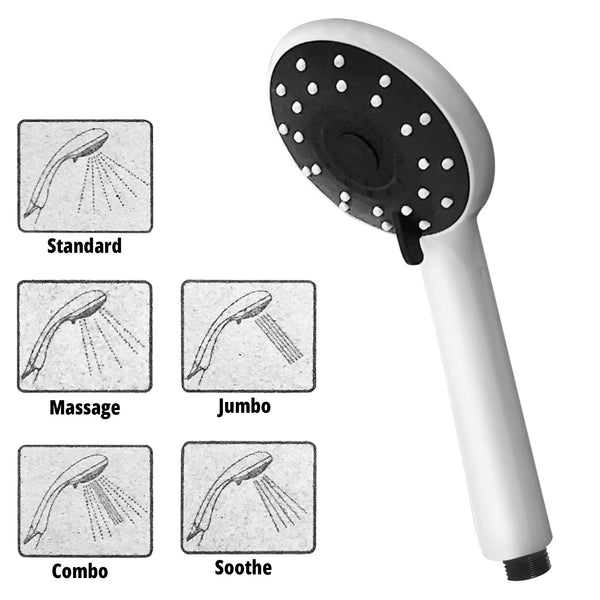

  • #61835 - Shower Head - x1

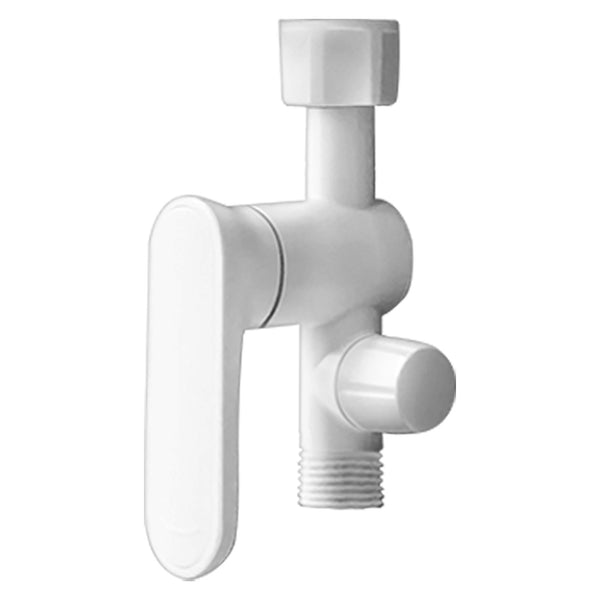

  • #60826 - Shower Valve - x1

Basic Installation Charge Note:

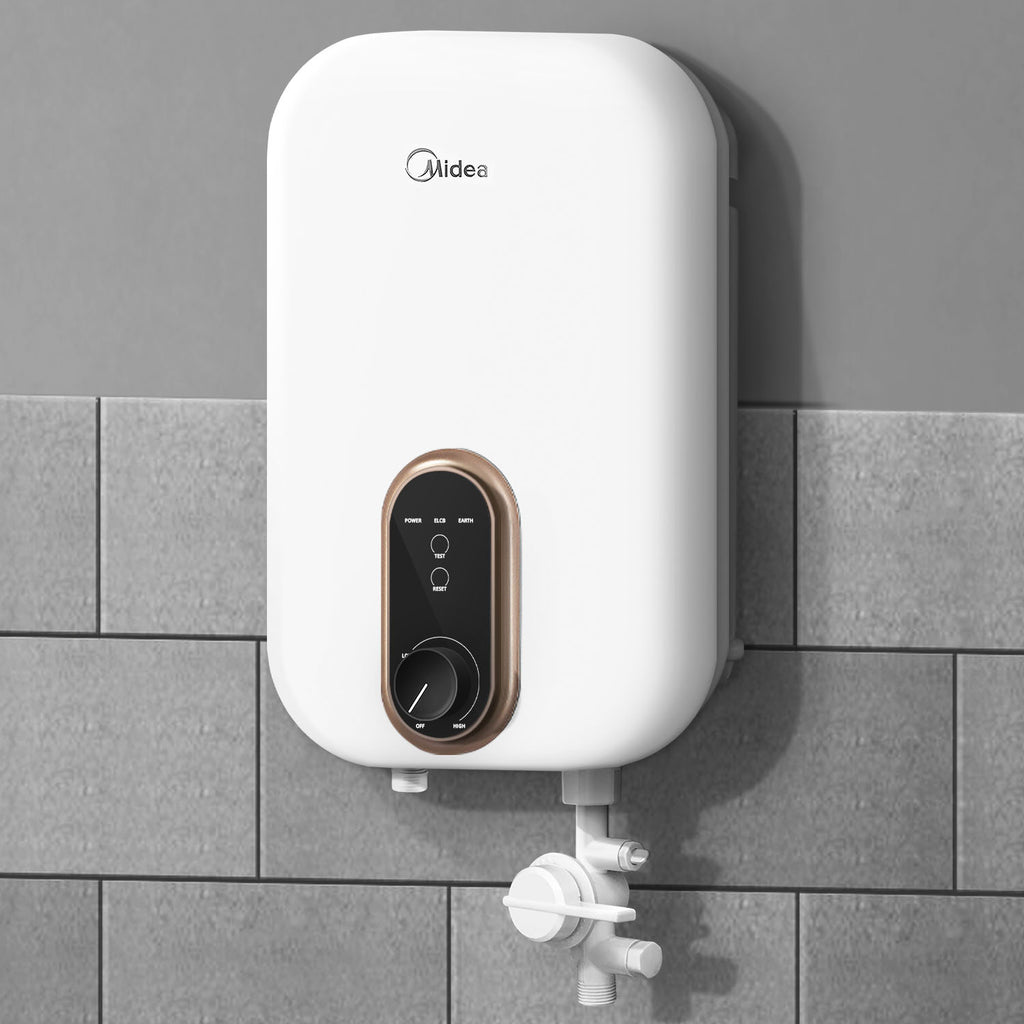

The basic installation charge covers the wall mounting and installation of the water heater only.

Please ensure that:

• A water inlet and outlet connection (including hoses and valves) is available within reach of the water heater installation location.
• A dedicated 15A power socket is installed within reach of the water heater power cord.

Any additional plumbing, electrical work, extension of water pipes, relocation ofconnections, or installation of new power points is not included in the basic installation charge and will be charged separately if required.
