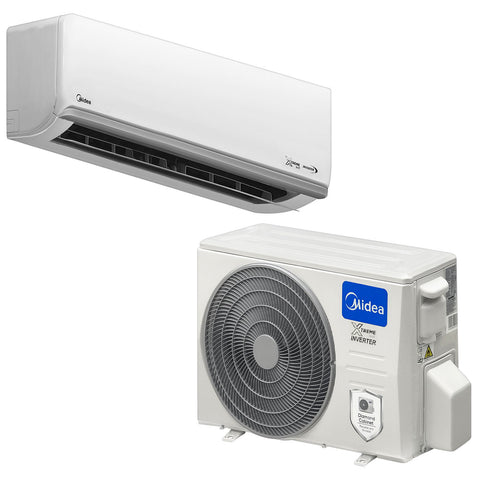

12000 BTU AC (Inverter)

    • Rf7,49900

    Inventory limit exceeded

    SKU: 47936

    INVERTER
    Model no: MSXS-13CRDN8
    Brand: MIDEA
    ALU: 21973
    Size: 12000BTU

    IMPORTANT CUSTOMER INFORMATION ON AC INSTALLATION:

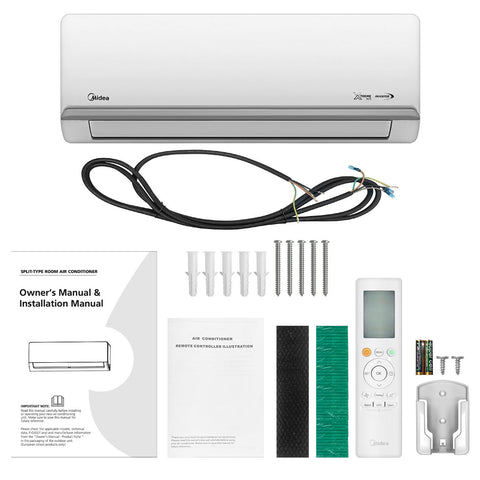

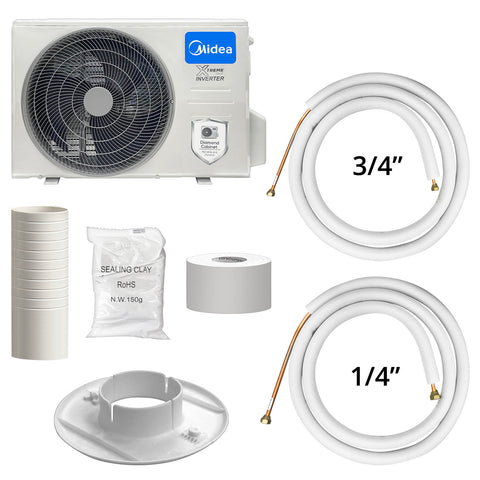

    All Split AC's are sold with the Installation kit (material for basic installation) that contains of 10ft pipe, wire and wall bracket. Installation charges are not included in the AC price.

    Charges apply as follow:

    Basic Installation charges Male: +MVR 1089

    Basic Installation charges Hulhumale: +MVR 1419


    Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

    All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.



    Specification

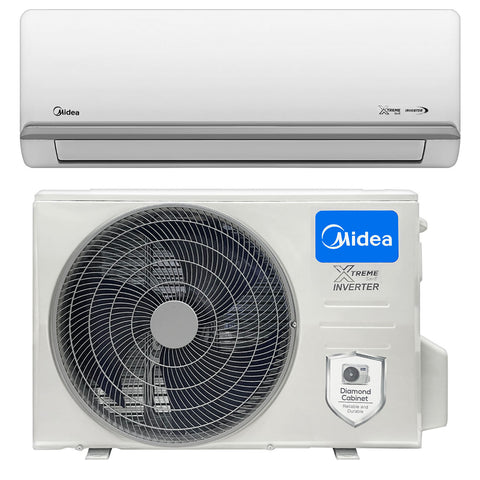

    Midea – Air Conditioner

    Brand: Midea

    Model: MSXS-13CRDN8

    Capacity: 12000BTU

    Type: Cooling Only

    Control type: Remote (Wi-Fi Control Optional)

    Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz

    Cooling:

      • Cooling Capacity (Btu/h): 12000Btu/h
      • Input (W): 1030W
      • Rated Current (A): 4.48A
      • EER (W/W): 3.41

    Max. Input Consumption (W): 1370W

    Max. Current (A): 7.5A

    Compressor:

      • Type: Rotary
      • Capacity (W): 3255W
      • Input (W): 826W
      • Rated current (RLA) (A): 5.65A

    Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

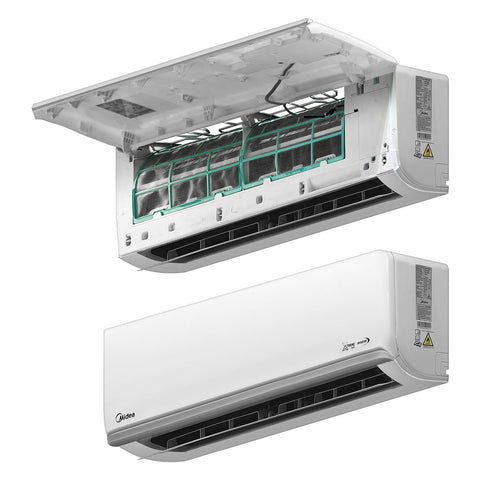

    Indoor Unit:

    Indoor Fan Motor:

      • Input (W): 43W
      • Capacitor (uF): 1.5 uF
      • Speed (High/Middle/Low): 1150/1010/940 r/min

    Indoor Coil:

      1. Number of rows: 2
      2. Tube pitch (a) x row pitch (b): 21 x 13.37mm
      3. Fin spacing: 1.3mm
      4. Fin type (code): Hydrophilic aluminum
      5. Tube outside dia. and type: Φ7,Inner groove tube
      6. Coil (length x height x width): 605 x 231 x 26.74mm + 605 x 105 x 26.74mm
      7. Number of circuits: 2

    Indoor air flow (High/Middle/Low): 575/414/329 m3/h

    Indoor noise level (High/Middle/Low): 39/35/32.5 dB (A)

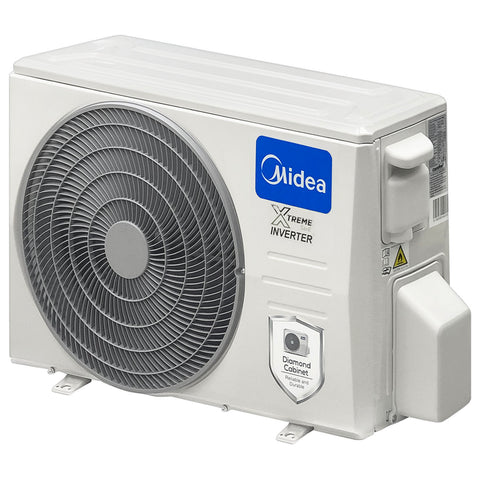

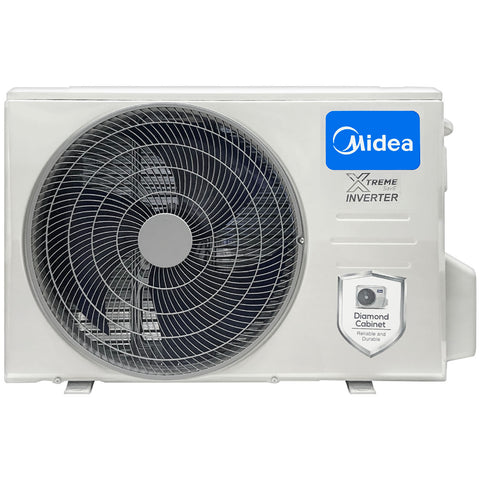

    Outdoor Unit:

    Outdoor Fan Motor:

      • Input (W): 63.5W
      • Capacitor (uF): 2.5 uF
      • Speed: 860 r/min

    Outdoor Coil:

      1. Number of rows: 1
      2. Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
      3. Fin spacing: 1.2mm
      4. Fin type (code): green anti-corrosion aluminum
      5. Tube outside dia. and type: Φ5,Inner groove tube
      6. Coil (length x height x width): 740 x 468 x 11.6mm
      7. Number of circuits: 2

    Outdoor air flow: 1800 m3/h

    Outdoor noise level: 52.5 dB (A)


    Other:

    Refrigerant Type: R32/0.44 kg

    Design Pressure: 4.3/1.7 MPa

    Refrigerant Piping:

      • Liquid Side / Gas Side: 6.35mm (1/4in) / 9.52mm (3/8in)
      • Max. Refrigerant Pipe Length: 25m
      • Max. Difference in Level: 10m

    Connection Wiring: 3.5m

    Plug Type: BS three flat pin plug

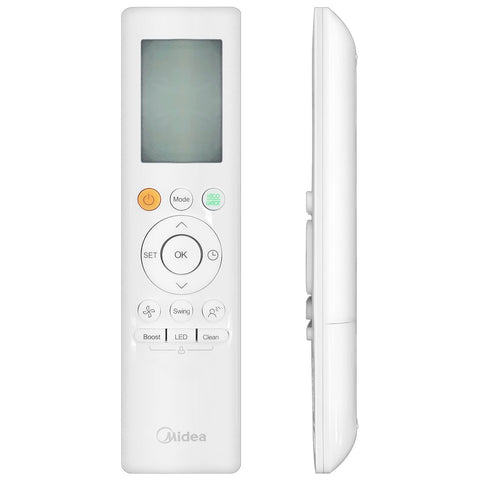

    Thermostat Type: Remote Control

    Operation Temperature: 17 ~ 30 °C

    Room Temperature:

      • Indoor (Cooling): 17 ~ 32 °C
      • Outdoor (Cooling): 0 ~ 50 °C

    Application Area: 16 ~ 23m2


    Dimension & Weight:

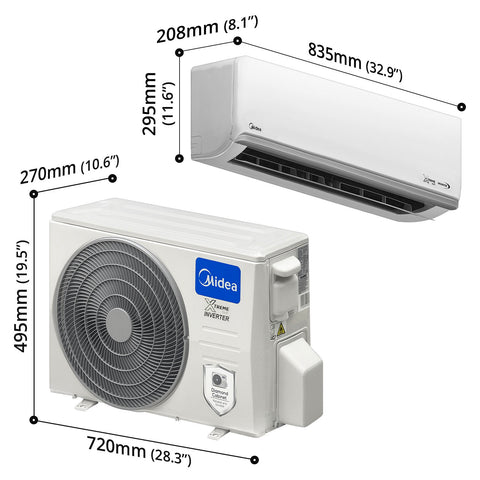

    Net dimensions (W x D x H):

      • Indoor: 835 x 208 x 295mm
      • Outdoor: 720 x 270 x 495mm

    Packing dimensions (W x H x D):

      • Indoor: 905 x 355 x 290mm
      • Outdoor: 835 x 300 x 540mm

    Net weight:

      • Indoor: 8.9kg
      • Outdoor: 21.7kg

    Gross weight

      • Indoor: 11.8kg
      • Outdoor: 23.7kg


    Click here for Wi-Fi USB Dongle (Sold Separately)

    Wi-Fi USB Dongle
