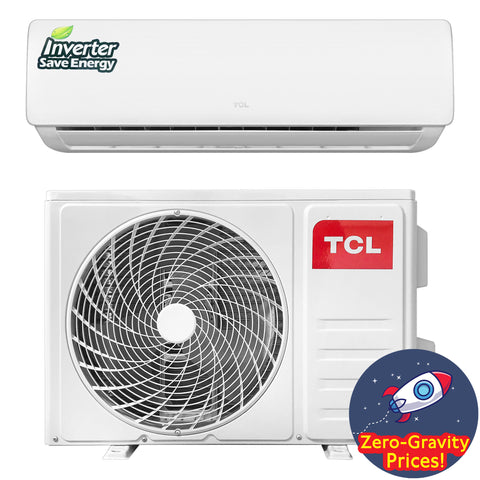

12000 BTU AC (Inverter)

    • Rf5,89900

    Inventory limit exceeded

    SKU: 45474

    INVERTER
    Model no: TAC-12CSD
    Brand: TCL
    ALU: 21165
    Size: 12000BTU



    Specification


    TCL - Air Conditioner (12000BTU)

    Brand: TCL

    Model: TAC-12CSD

    Capacity: 12000BTU

    Type: Cooling Only

    Control type: Remote

    Rated Cooling Capacity (Btu/h): 12000 (2729 ~ 12000)

    Rated Cooling Capacity (W): 3342

    CSPF (Btu/h.w; W/W): 4.35

    Moisture removal (Liters/h): 12

    Indoor noise level at cooling (dB (A)):

      • High: 40.6
      • Med: 35.3
      • Low: 31.8

    Outdoor noise level (dB (A)): 50.7

    Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

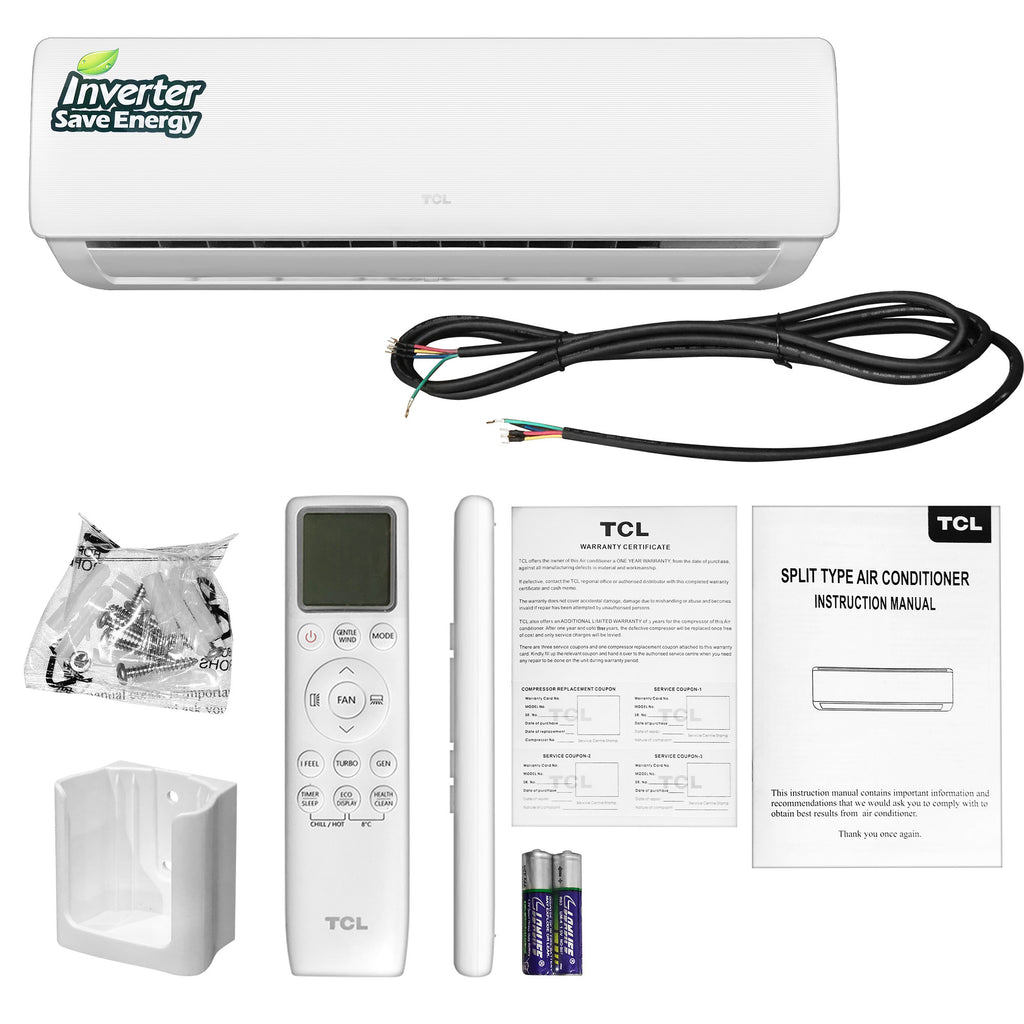

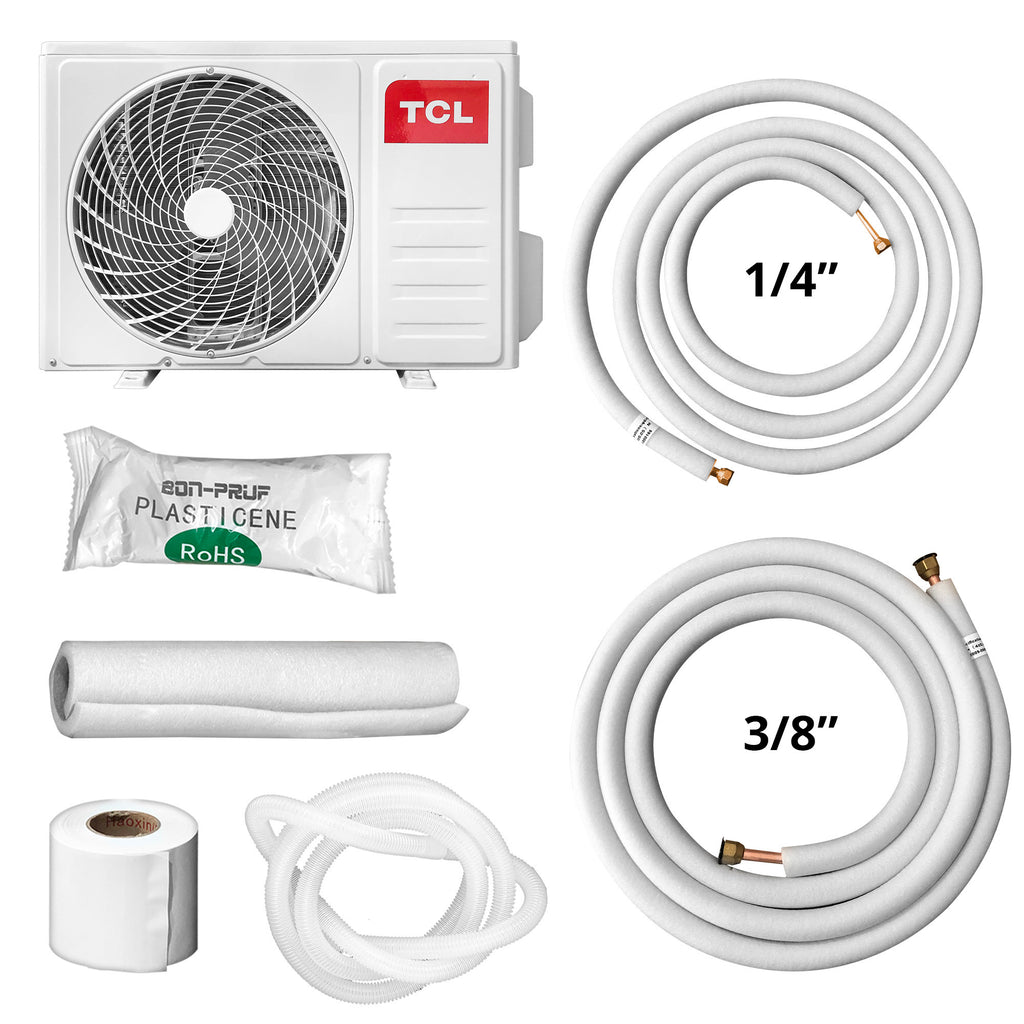

    Accessories Includes:

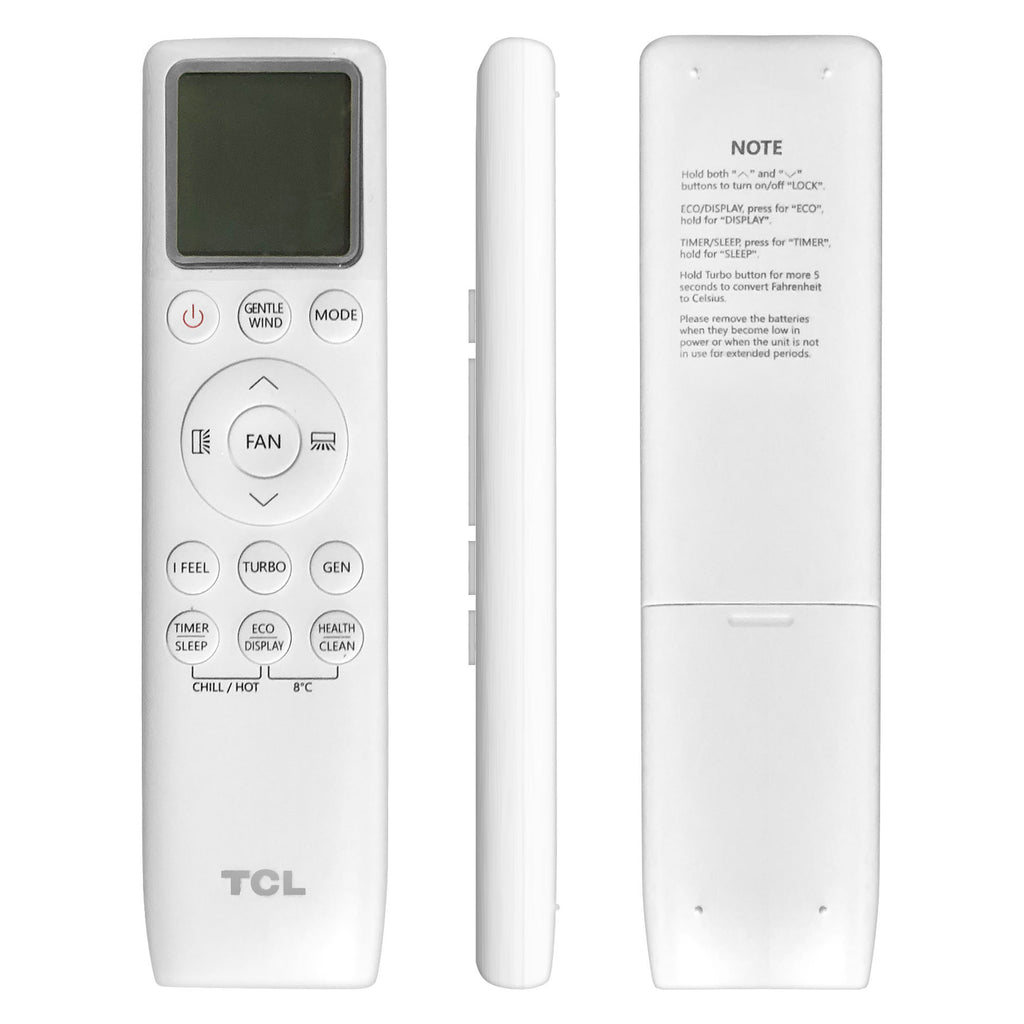

      • AC Remote
      • 12ft. Copper Tube (1/4” & 3/8”)
      • 12ft. Cable Wire
      • Wall AC Bracket



      Power supply

      Voltage Range: 155 ~ 265V

      Rated current (Cooling): 7.3 (1~8) A

      Rated input (Cooling): 1130 (290 ~ 1450) W

      Max current: 7.3 A

      Max input: 1450 W



      Fan System:

      Indoor air circulation Cooling (m3/h): 465

      Indoor fan type: Cross Flow

      Indoor fan speed H/M/L:

        • Cooling (rpm): 1270/1150/950/850/600
        • Dry (rpm): 1270/1150/950/850/600
        • Sleep (rpm): 600

      Indoor fan motor output: 46 W

      Outdoor fan type: Propeller Fan

      Outdoor fan speed: 860rpm

      Outdoor fan motor output: 70W



      Others

      Refrigerant/Charge (Gram): R32/450

      Compressor:

        • Type: Rotary

      Evaporator: 3-bend

      Indoor coil:

        1. Number of rows: 2
        2. Tube pitch (a)x row pitch (b): 21 x 25.4mm
        3. Fin spacing: 1.5mm
        4. Fin type (code): Hydrophilic
        5. Tube outside dia.and type: Ø7mm inner groove tube
        6. Coil (length x height x width): 573 x 225 x 25.4mm
        7. Number of circuits: 2

      Condenser: Single-arranged

      Connecting Pipe:

        • Gas: 1/4''
        • Liquid: 3/8''

      Connecting Wiring (Size x Core number): 4 x 1.0



      Dimension & Weight:

      Suitable area: 15-23 m2

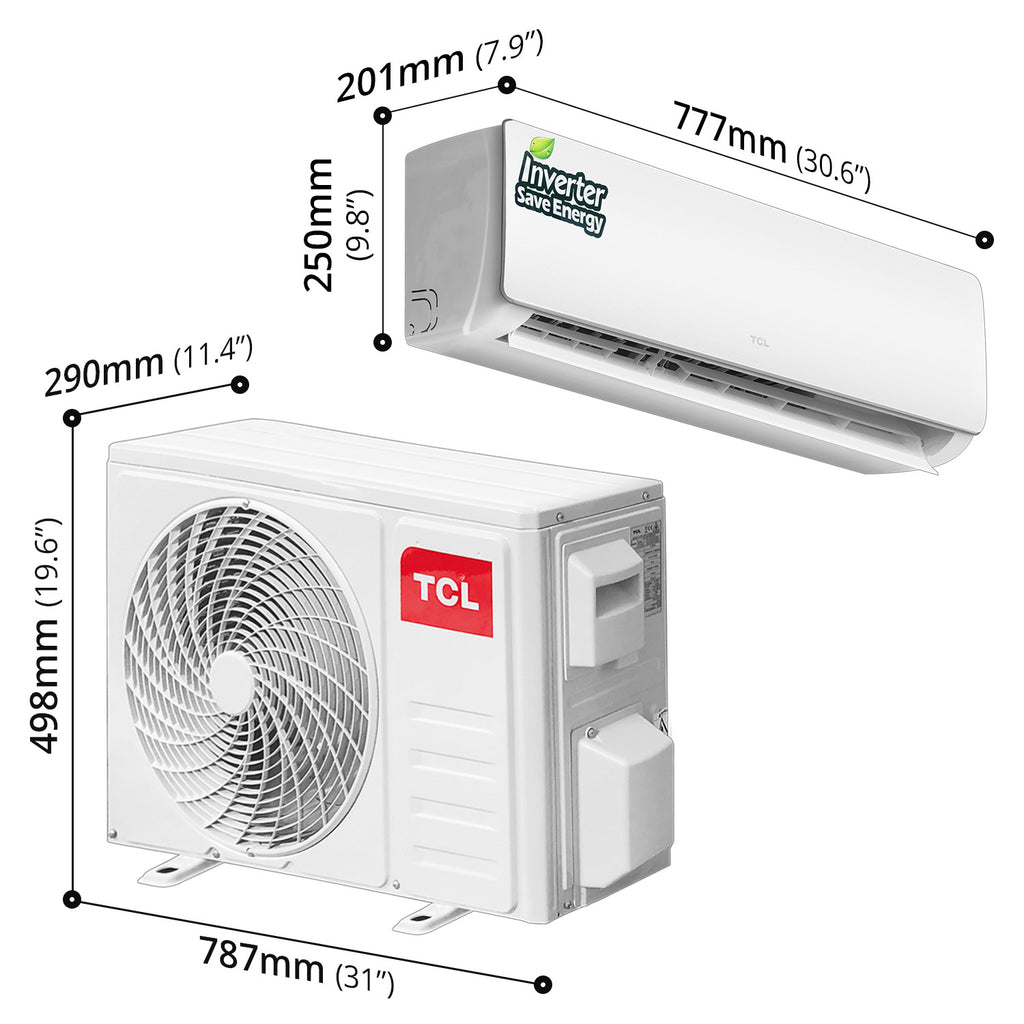

      Net dimensions (W x H x D):

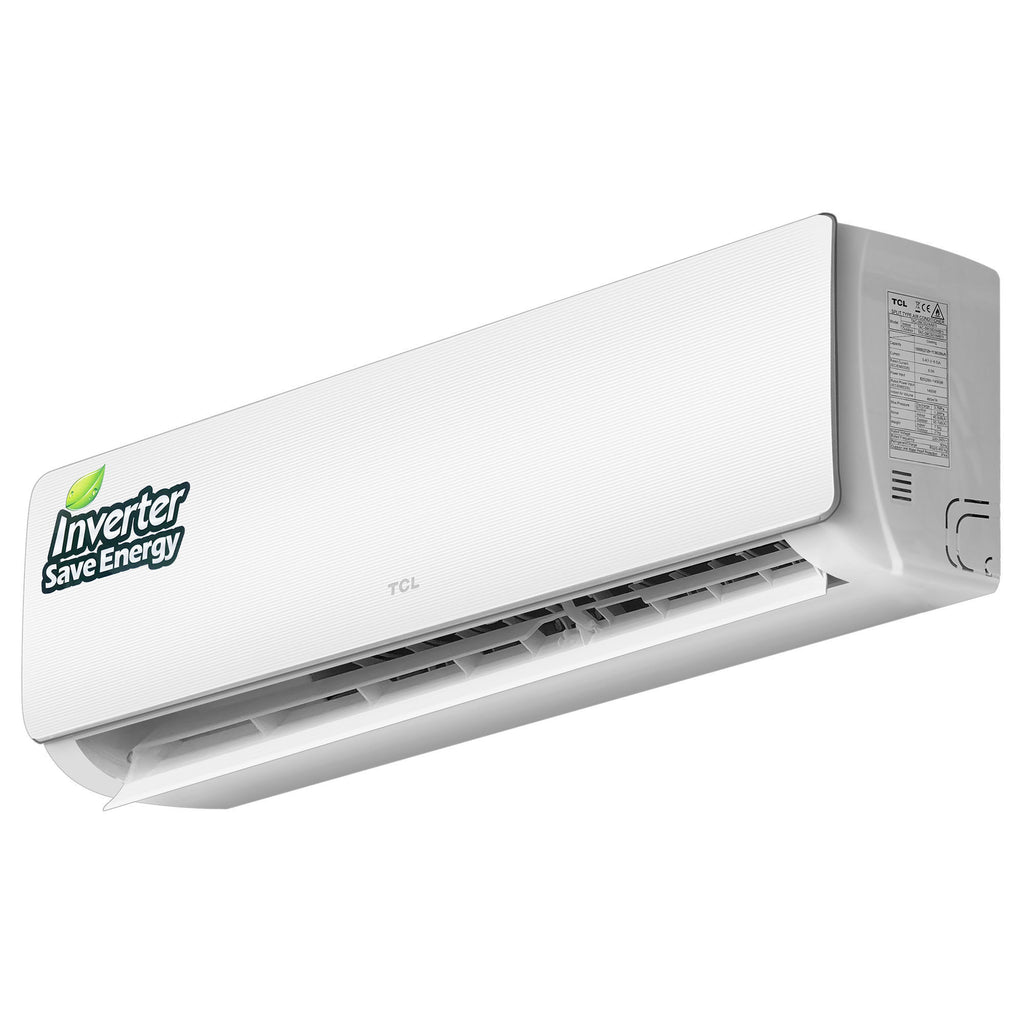

        • Indoor: 777 x 250 x 201mm

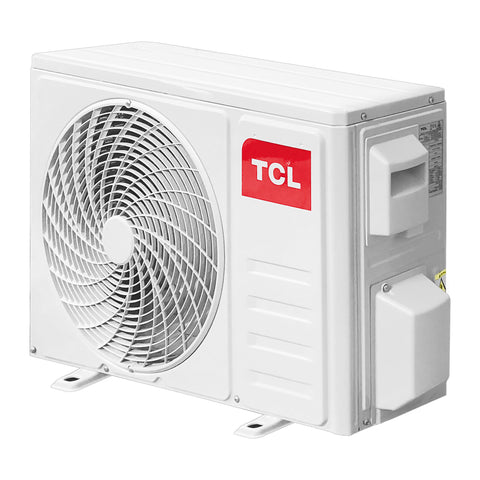

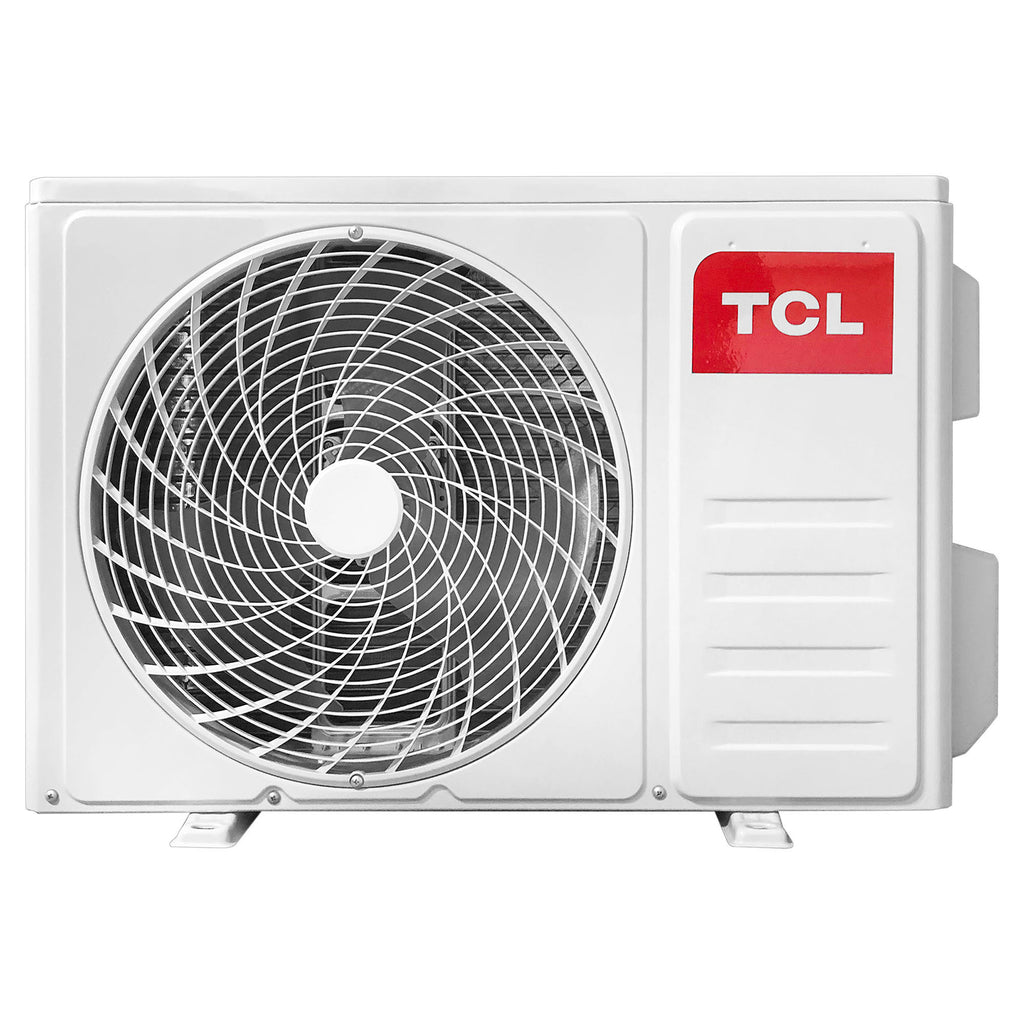

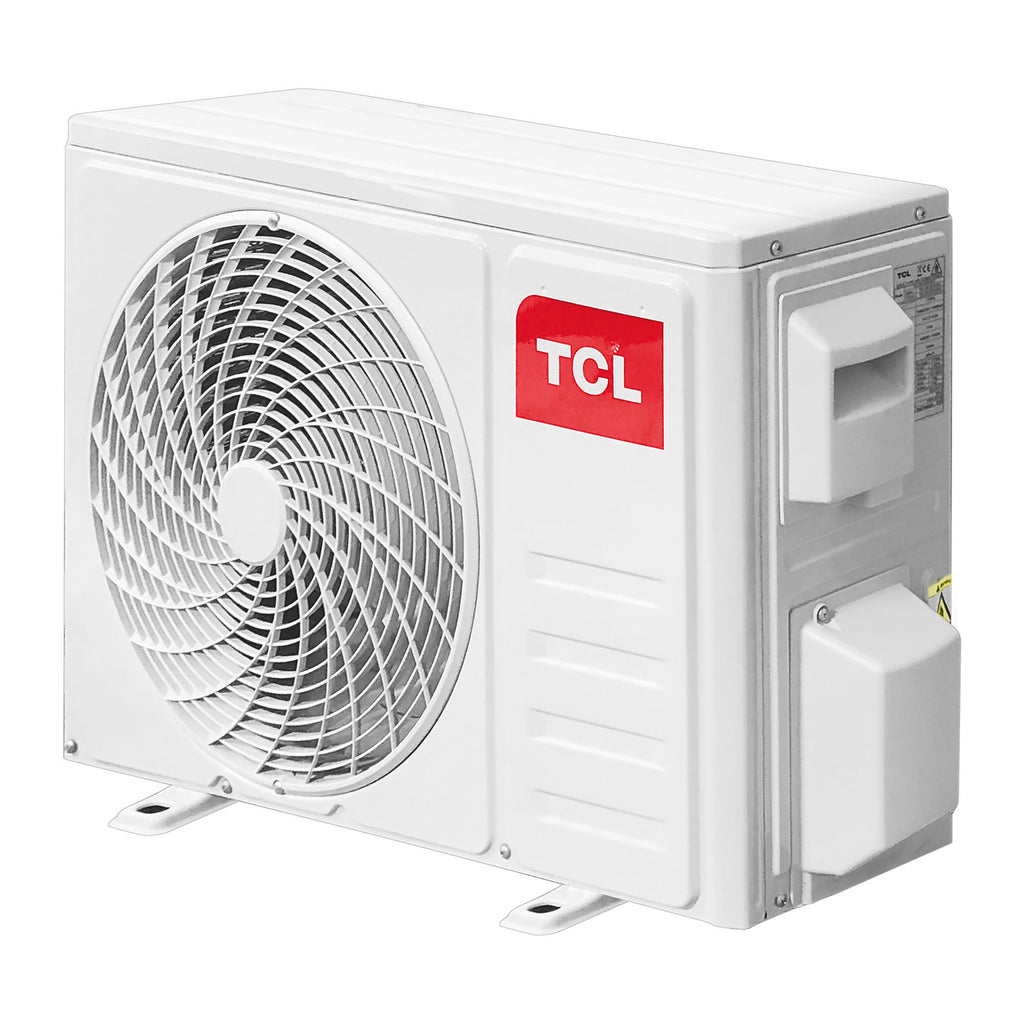

        • Outdoor: 787 x 290 x 498mm

      Packing dimensions (W x H x D):

        • Indoor: 850 x 320 x 275mm
        • Outdoor: 818 x 325 x 520mm

      Net weight:

        • Indoor: 7.5kg
        • Outdoor: 21kg

      Gross weight

        • Indoor: 10kg
        • Outdoor: 31kg
