Specification

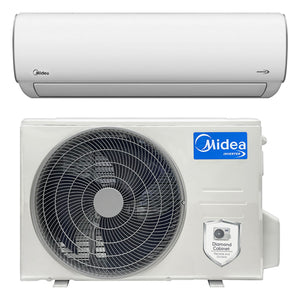

Midea – Air Conditioner

Brand: Midea

Model: MSAF-13CRDN8

Capacity: 12000BTU

Type: Cooling Only

Control Type: Remote

Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz

Cooling:

• Cooling Capacity (Btu/h): 12000Btu
• Input (W): 1150W
• Rated Current (A): 5A
• EER (W/W): 3.06

Max. Input Consumption (W): 2050W

Max. Current (A): 9.5A

Compressor:

• Type: Rotary
• Capacity (W): 3255W
• Input (W): 826W
• Rated current (RLA) (A): 5.65A

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

Indoor Unit:

Indoor Fan Motor:

• Input (W): 40W
• Capacitor (uF): 1.2 uF
• Speed (High/Middle/Low): 1200/950/800 r/min

Indoor Coil:

1. Number of rows: 2
2. Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
3. Fin spacing: 1.2mm
4. Fin type (code): Hydrophilic aluminum
5. Tube outside dia. and type: Φ5,Inner groove tube
6. Coil (length x height x width): 595 x 78 x 23.2mm + 595 x 117 x 23.2mm + 595 x 78 x 23.2mm
7. Number of circuits: 4

Indoor air flow (High/Middle/Low): 599/442/350 m3/h

Indoor noise level (High/Middle/Low): 41.5/35/32.5 dB (A)

Outdoor Unit:

Outdoor Fan Motor:

• Input (W): 63.5W
• Capacitor (uF): 2.5 uF
• Speed: 860 r/min

Outdoor Coil:

1. Number of rows: 1
2. Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
3. Fin spacing: 1.2mm
4. Fin type (code): green anti-corrosion aluminum
5. Tube outside dia. and type: Φ5,Inner groove tube
6. Coil (length x height x width): 740 x 468 x 11.6mm
7. Number of circuits: 2

Outdoor air flow: 1800 m3/h

Outdoor noise level: 55 dB (A)

Other:

Refrigerant Type: R32/0.38 kg

Design Pressure: 4.3/1.7 MPa

Refrigerant Piping:

• Liquid Side / Gas Side: 6.35mm (1/4in) / 9.52mm (3/8in)
• Max. Refrigerant Pipe Length: 25m
• Max. Difference in Level: 10m

Connection Wiring: 3.5m

Plug Type: BS three flat pin plug

Thermostat Type: Remote Control

Operation Temperature: 17 ~ 30 °C

Room Temperature:

• Indoor (Cooling): 17 ~ 32 °C
• Outdoor (Cooling): 0 ~ 50 °C

Application Area: 16 ~ 23m²

Dimension & Weight:

Net dimensions (W x D x H):

• Indoor: 805 x 194 x 285mm
• Outdoor: 720 x 270 x 495mm

Packing dimensions (W x H x D):

• Indoor: 870 x 270 x 365mm
• Outdoor: 835 x 300 x 540mm

Net weight:

• Indoor: 8.2kg
• Outdoor: 21.5kg

Gross weight

• Indoor: 10.4kg
• Outdoor: 23.4kg
