Specs

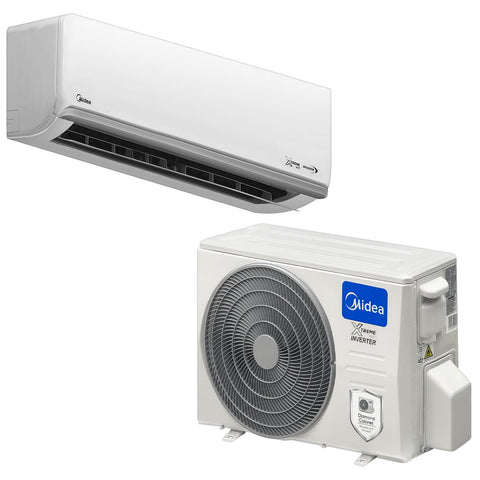

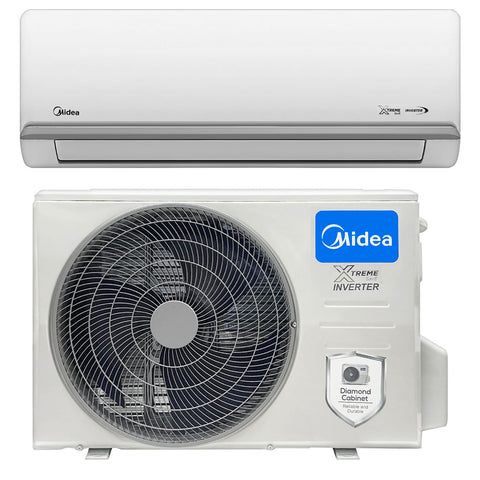

Midea – Air Conditioner

Brand: Midea

Model: MSXS-19CRDN8

Capacity: 18000BTU

Type: Cooling Only

Control type: Remote (Wi-Fi Control Optional)

Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz

Cooling:

      • Cooling Capacity (Btu/h): 18000Btu/h
      • Input (W): 1650W
      • Rated Current (A): 7.2A
      • EER (W/W): 3.2

Max. Input Consumption (W): 3200W

Max. Current (A): 14A

Compressor:

      • Type: Rotary
      • Capacity (W): 4385W
      • Input (W): 1140W
      • Rated current (RLA) (A): 7.50A

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

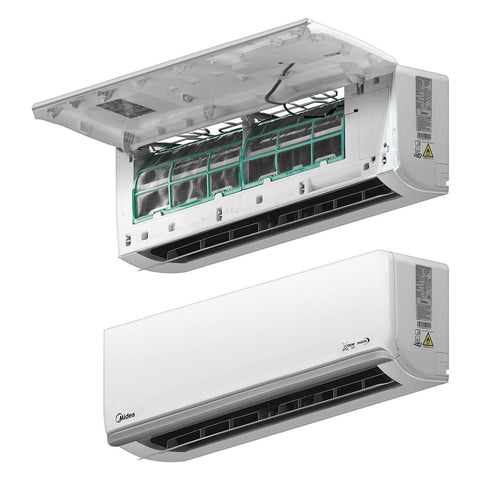

Indoor Unit:

Indoor Fan Motor:

      • Input (W): 71W
      • Capacitor (uF): 1.5 uF
      • Speed (High/Middle/Low): 1200/980/870 r/min

Indoor Coil:

    1. Number of rows: 2
    2. Tube pitch (a) x row pitch (b): 21 x 13.37mm
    3. Fin spacing: 1.2mm
    4. Fin type (code): Hydrophilic aluminum
    5. Tube outside dia. and type: Φ7,Inner groove tube
    6. Coil (length x height x width): 750 x 210 x 26.74mm + 750 x 126 x 26.74mm
    7. Number of circuits: 4

Indoor air flow (High/Middle/Low): 844/639/547 m3/h

Indoor noise level (High/Middle/Low): 42.5/36/32.5 dB (A)

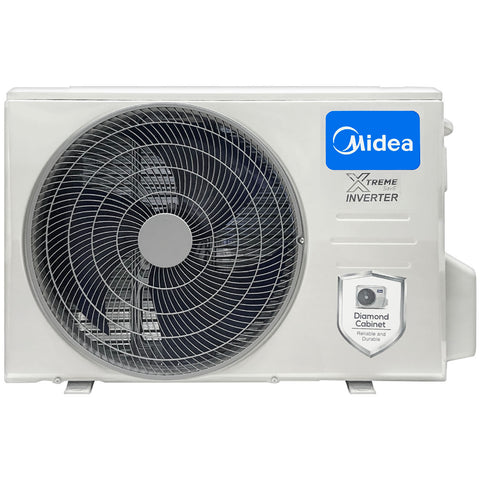

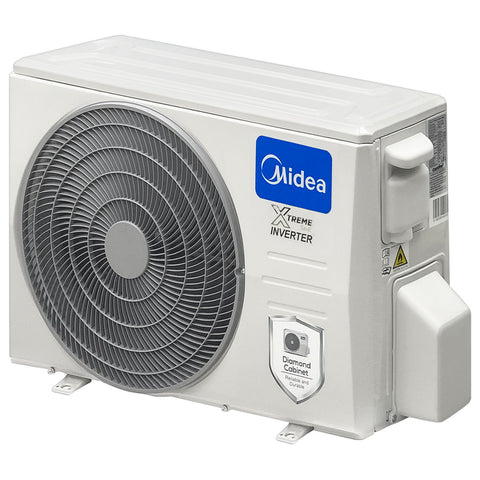

Outdoor Unit:

Outdoor Fan Motor:

      • Input (W): N/A
      • Capacitor (uF): 2.5 uF
      • Speed: 890 r/min

Outdoor Coil:

    1. Number of rows: 1.6
    2. Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
    3. Fin spacing: 1.2mm
    4. Fin type (code): green anti-corrosion aluminum
    5. Tube outside dia. and type: Φ5,Inner groove tube
    6. Coil (length x height x width): 755 x 507 x 11.6mm + 462 x 507 x 11.6mm
    7. Number of circuits: 4

Outdoor air flow: 2100 m3/h

Outdoor noise level: 56.5 dB (A)



Other:

Refrigerant Type: R32/0.65 kg

Design Pressure: 4.3/1.7 MPa

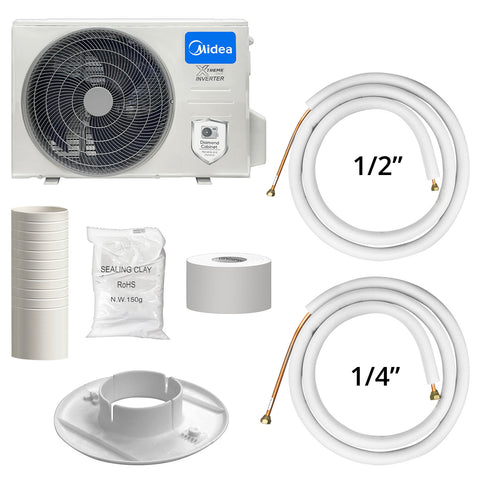

Refrigerant Piping:

      • Liquid Side / Gas Side: 6.35mm (1/4in) / 12.7mm (1/2in)
      • Max. Refrigerant Pipe Length: 25m
      • Max. Difference in Level: 10m

Connection Wiring: 5.5m

Plug Type: 1.5 x 3/no-plug

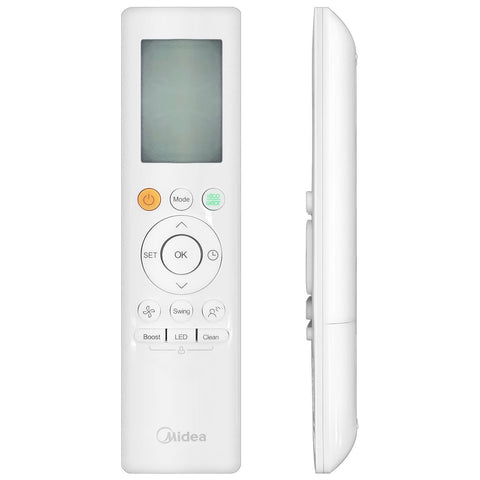

Thermostat Type: Remote Control

Operation Temperature: 17 ~ 30 °C

Room Temperature:

      • Indoor (Cooling): 17 ~ 32 °C
      • Outdoor (Cooling): 0 ~ 50 °C

Application Area: 24 ~ 35m2



Dimension & Weight:

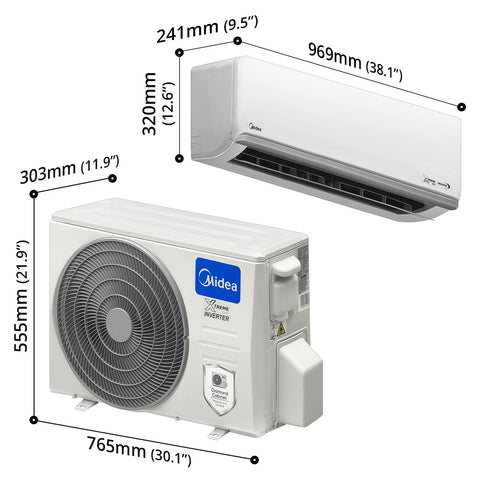

Net dimensions (W x D x H):

      • Indoor: 969 x 241 x 320mm
      • Outdoor: 765 x 303 x 555mm

Packing dimensions (W x H x D):

      • Indoor: 1045 x 315 x 405mm
      • Outdoor: 887 x 337 x 610mm

Net weight:

      • Indoor: 11.9kg
      • Outdoor: 27.2kg

Gross weight

      • Indoor: 15.2kg
      • Outdoor: 29.4kg
