18000 BTU AC (Inverter)

    • Rf6,79900

    Inventory limit exceeded

    SKU: 47093

    INVERTER
    Model no: TAC-18CSD
    Brand: TCL
    ALU: 21568
    Size: 18000BTU

    IMPORTANT CUSTOMER INFORMATION ON AC INSTALLATION:

    All Split AC's are sold with the Installation kit (material for basic installation) that contains of 10ft pipe, wire and wall bracket. Installation charges are not included in the AC price.

    Charges apply as follow:

    Basic Installation charges Male: +MVR 1089

    Basic Installation charges Hulhumale: +MVR 1419


    Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

    All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.



    Specification

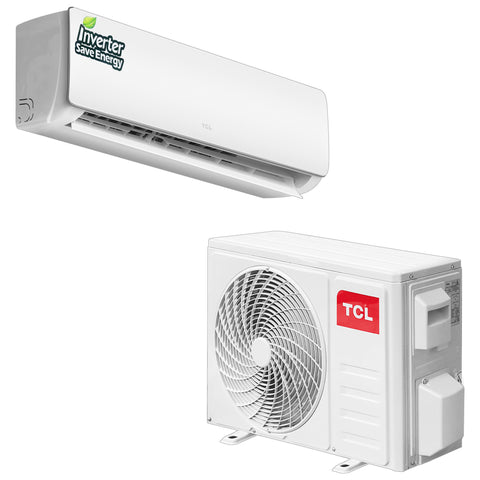

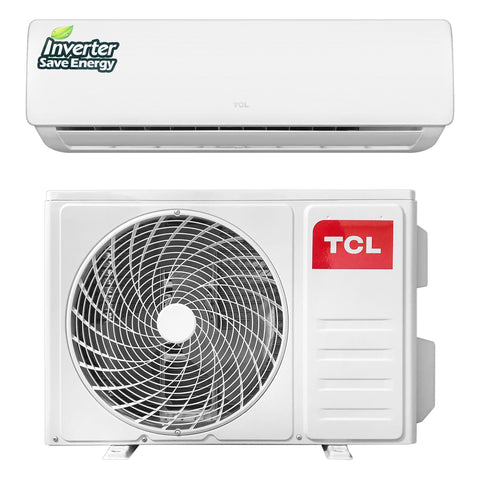

    TCL - Air Conditioner (18000BTU)

    Brand: TCL

    Model: TAC-18CSD

    Capacity: 18000BTU

    Type: Cooling Only

    Control type: Remote

    Rated Cooling Capacity (Btu/h): 18000 (3412 ~ 21150)

    Rated Cooling Capacity (W): 5100

    CSPF (Btu/h.w; W/W): 4.6

    Moisture removal (Liters/h): 1.8

    Indoor noise level at cooling (dB (A)):

      • High: 45
      • Med: 38
      • Low: 36

    Outdoor noise level (dB (A)): 55

    Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

    Accessories Includes:

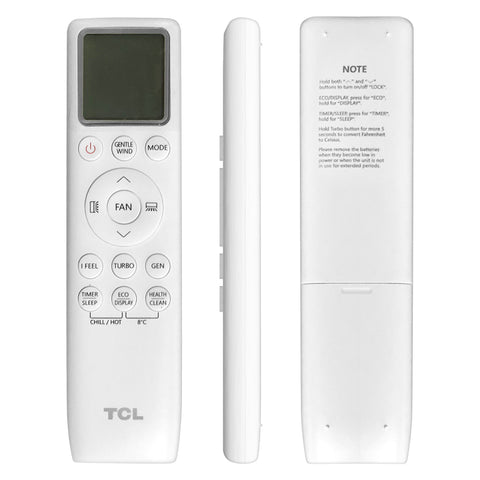

      • AC Remote
      • 12ft. Copper Tube (1/4” & 1/2”)
      • 12ft. Cable Wire
      • Wall AC Bracket


      Power supply

      Power Supply: 220-240V~ / 50Hz/1P

      Voltage Range: 155 ~ 265V

      Rated current (Cooling): 7.31 (1.6~12.0) A

      Rated input (Cooling): 1700 (300 ~ 2400) W

      Max current: 12 A

      Max input: 2400 W


      Fan System:

      Indoor air circulation Cooling (m3/h): 810

      Indoor fan type: Cross Flow

      Indoor fan speed H/M/L:

        • Cooling (rpm): 830/780/730/680/620
        • Dry (rpm): 680
        • Sleep (rpm): 680

      Indoor fan motor output: 25 W

      Outdoor fan type: Propeller Fan

      Outdoor fan speed: 860rpm

      Outdoor fan motor output: 25W



      Others

      Refrigerant/Charge (Gram): R32/730

      Compressor:

        • Type: Rotary

      Evaporator: 3-bend

      Indoor coil:

        1. Number of rows: 2
        2. Tube pitch (a)x row pitch (b): 21 x 12.7mm
        3. Fin spacing: 1.5mm
        4. Fin type (code): Hydrophilic
        5. Tube outside dia.and type: Ø7mm inner groove tube
        6. Coil (length x height x width): 705 x 315 x 25.4mm
        7. Number of circuits: 4

      Condenser: double-arranged

      Connecting Pipe:

        • Gas: 1/2''
        • Liquid: 1/4''

      Connecting Wiring (Size x Core number): 4 x 2.5

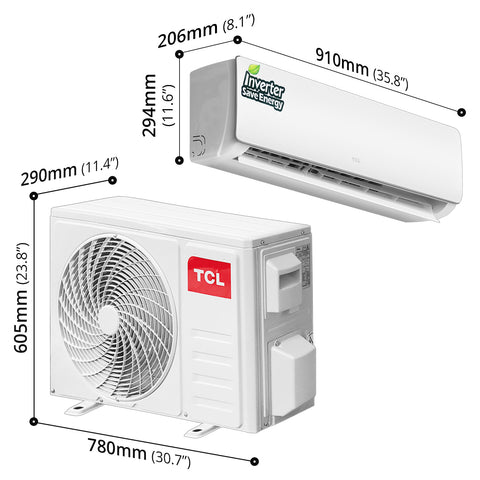

      Dimension & Weight:

      Suitable area: 25-40 m2

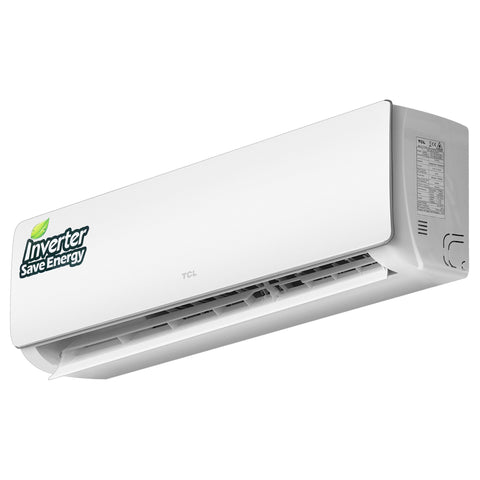

      Indoor Unit:

        • Product Dimension: 910 x 294 x 206mm
        • Packing Dimension: 979 x 372 x 292mm
        • Net Weight: 9kg
        • Gross Weight: 12kg

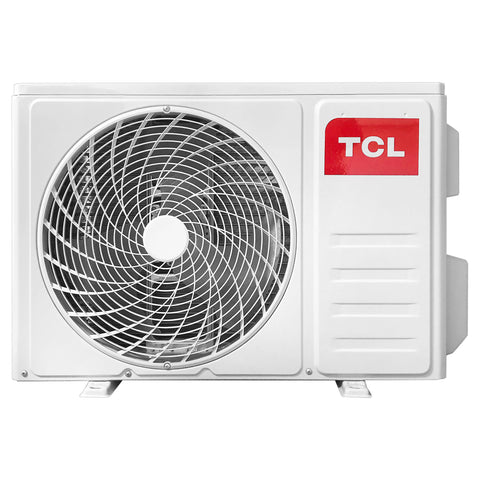

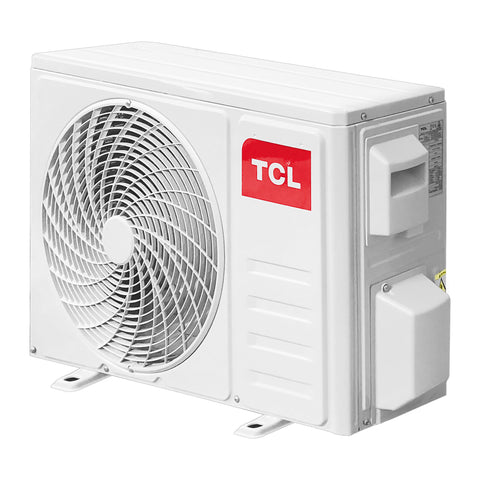

      Outdoor Unit:

        • Product Dimension: 780 x 290 x 605mm
        • Packing Dimension: 835 x 340 x 585mm
        • Net Weight: 28kg
        • Gross Weight: 32kg

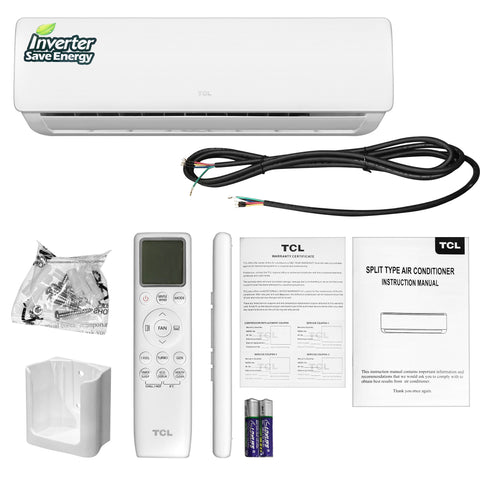

        Packing Contents:

        18k BTU Indoor Unit – x1

          • 12ft. Cable wire – x1
          • Screws – x8
          • Screw Plugs – x8
          • Remote Control – x1
          • AAA Battery – x2
          • Wall Mount Remote Holder – x1
          • Warranty Certificate – x1
          • Instruction Manual – x1

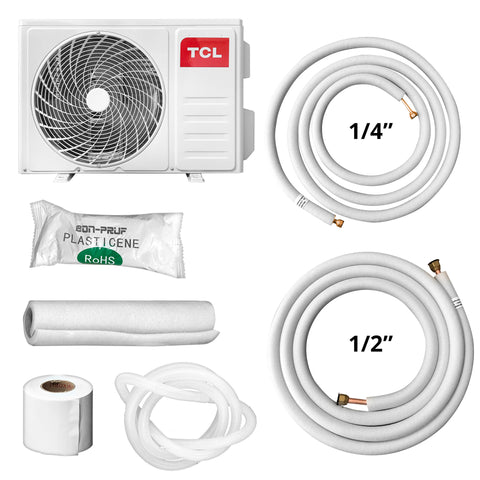

        18k BTU Outdoor Unit – x1

          • 1/4" Copper Tube (13ft.) – x1
          • 1/2” Copper Tube (13ft.) – x1
          • Drain Hose – x1
          • Wrapping Tape – x1
          • Insulation Sheath – x1
          • Plasticized putty – x1



        Click here for User Manual
