Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.

Specification

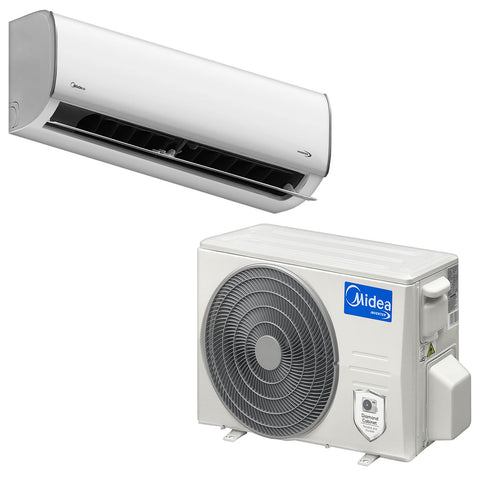

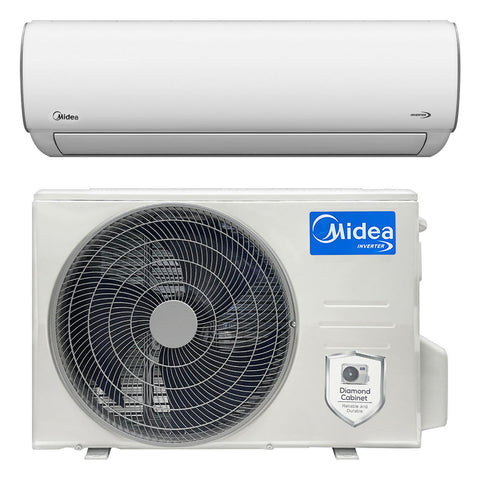

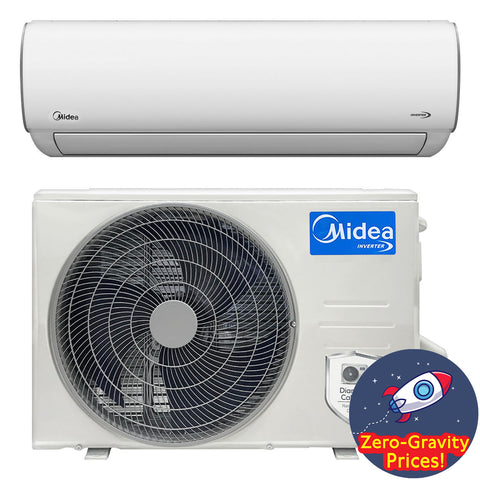

Midea – Air Conditioner

Inverter - Forest Series

Brand: Midea

Model: MSAF-18CRDN8

Capacity: 18000BTU

Type: Cooling Only

Control Type: Remote

Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz

Cooling:

• Cooling Capacity (Btu/h): 18000
• Input (W): 1748W
• Rated Current (A): 7.6A
• EER (W/W): 2.85

Max. Input Consumption (W): 3105W

Max. Current (A): 13.5A

Compressor:

• Type: Rotary
• Capacity (W): 4385W
• Input (W): 1140W
• Rated current (RLA) (A): 7.50A

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

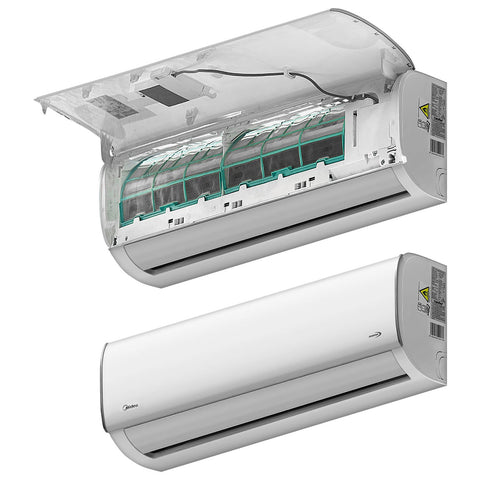

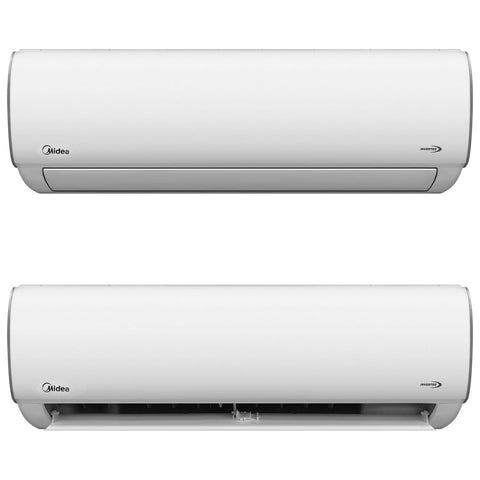

Indoor Unit:

Indoor Fan Motor:

• Input (W): 71W
• Capacitor (uF): 1.5 uF
• Speed (High/Middle/Low): 1330 r/min

Indoor Coil:

1. Number of rows: 2
2. Tube pitch (a) x row pitch (b): 21 x 13.37mm
3. Fin spacing: 1.2mm
4. Fin type (code): Hydrophilic aluminum
5. Tube outside dia. and type: Φ7, Inner groove tube
6. Coil (length x height x width): 750 x 189 x 26.74mm + 750 x 105 x 26.74mm
7. Number of circuits: 3

Indoor air flow (High/Middle/Low): 737/625/501 m3/h

Indoor noise level (High/Middle/Low): 41/37.5/31.5 dB (A)

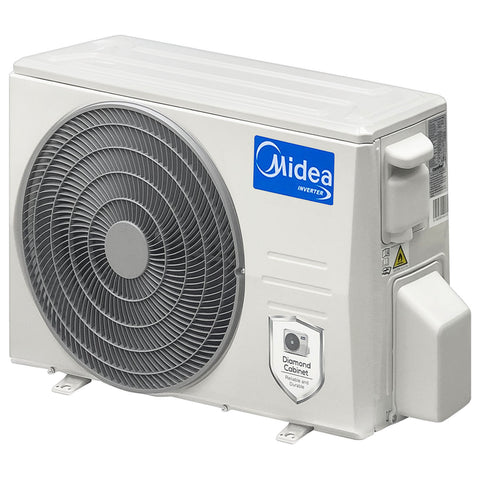

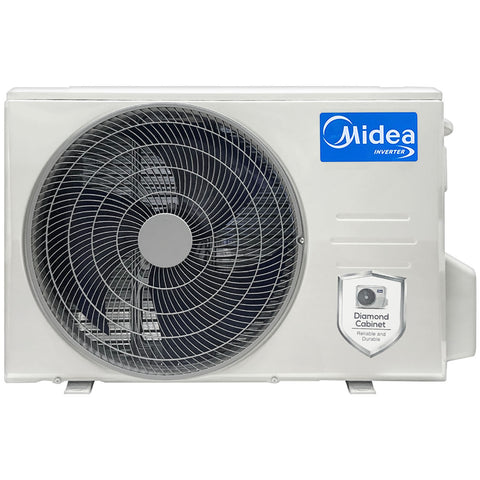

Outdoor Unit:

Outdoor Fan Motor:

• Input (W): 72.5W
• Capacitor (uF): 2.5 uF
• Speed: 850 r/min

Outdoor Coil:

1. Number of rows: 1
2. Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
3. Fin spacing: 1.2mm
4. Fin type (code): green anti-corrosion aluminum
5. Tube outside dia. and type: Φ5, Inner groove tube
6. Coil (length x height x width): 878 x 507 x 11.6mm
7. Number of circuits: 2

Outdoor air flow: 2000 m3/h

Outdoor noise level: 53.5 dB (A)

Additional Specs:

Refrigerant Type: R32/0.58 kg

Design Pressure: 4.3/1.7 MPa

Refrigerant Piping:

• Liquid Side / Gas Side: 6.35mm (1/4in) / 12.7mm (1/2in)
• Max. Refrigerant Pipe Length: 30m
• Max. Difference in Level: 20m

Connection Wiring: 3.5m

Plug Type: 1.5 x 3/no-plug

Thermostat Type: Remote Control

Operation Temperature: 17 ~ 30 °C

Room Temperature:

• Indoor (Cooling): 17 ~ 32 °C
• Outdoor (Cooling): 0 ~ 50 °C

Application Area (Cooling Standard): 23 ~ 33m²

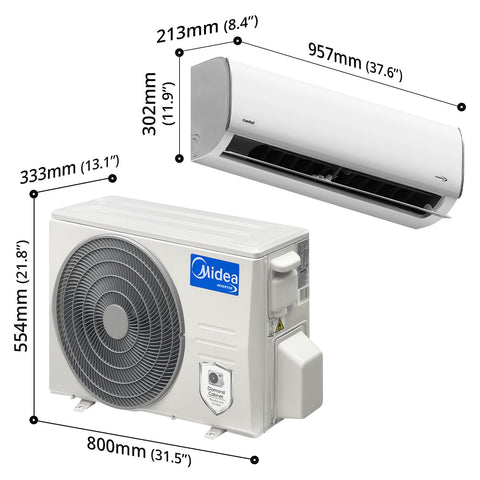

Dimension & Weight:

Width x Depth x Height

Indoor Unit:

• • Product Dimension: 957 x 213 x 302mm (37.6” x 8.4” x 11.9”)
  • Packing Dimension: 1035 x 295 x 385mm (40.7” x 11.6” x 15.2”)
  • Net Weight: 10.85kg
  • Gross Weight: 14kg

Outdoor Unit:

• Product Dimension: 800 x 333 x 554mm (31.5” x 13.1” x 21.8”)
• Packing Dimension: 920 x 390 x 615mm (36.2” x 15.4” x 24.2”)
• Net Weight: 28.3kg
• Gross Weight: 30.9kg

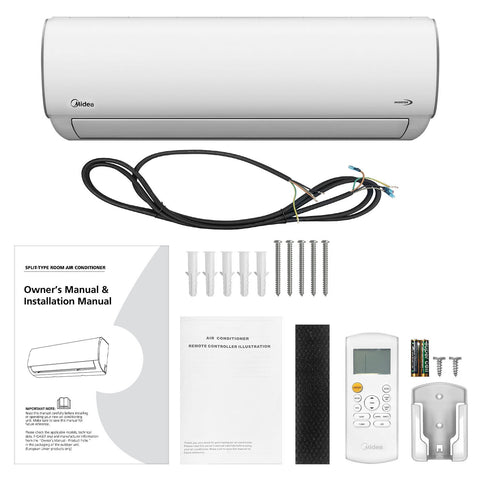

Packing Contents:

18k BTU Indoor Unit – x1

• Electric Wire – x1

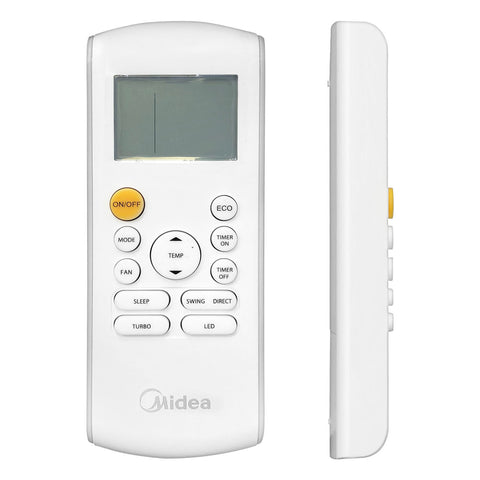

• Remote Control – x1
• AA Battery – x2
• Remote Holder (Wall-Mount) with 2 Screws – x1
• Screws – x5
• Wall Plugs – x5
• Small Filter – x1
• Remote Controller User Manual – x1
• User Manual – x1

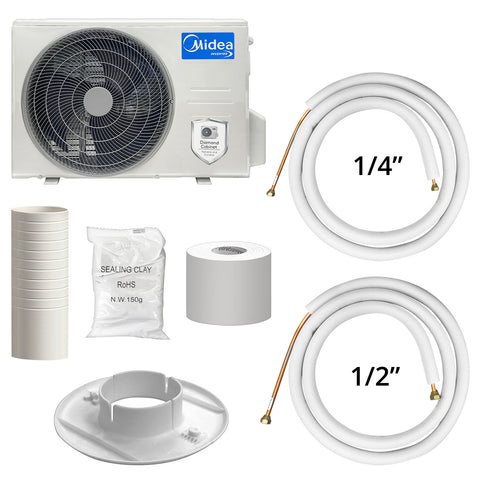

18k BTU Outdoor Unit – x1

• 1/2" Insulated Copper Tube – x1
• 1/4” Insulated Copper Tube – x1
• Sealing Clay – x1
• Wall Sleeve – x1
• Wall Hole Cover – x1
• Wrapping Roll – x1

Click here for User Manual
